Introduction

If the rear signal light bulb on your 2021 Honda HR-V dies or burns out, use this guide to replace those light bulbs.

Rear turn signal lights are light bulbs that communicate the driver's intent to change lanes, so it is essential to change these lightbulbs if they stop functioning. The specific rear turn signal light bulb necessary for this vehicle model is 21 W (Amber).

This guide will show you how to replace the left rear signal light bulb, but the process is the same on both the left and right rear signal light bulbs.

Before starting, make sure that you turn off your vehicle and engage the parking brake.

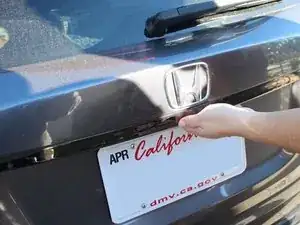

  1. HgywZpFttSHVC6J3
    • Press the tailgate release button and lift open the rear hatch.

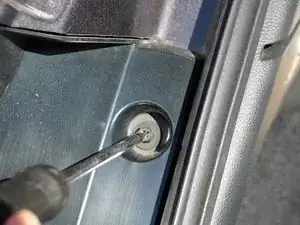

  2. NLYdQqXLdts12Zlg
    NLYdQqXLdts12Zlg
    TygoXcSLbCKUcyjD
    j2NtIgM2vPyCPUDe

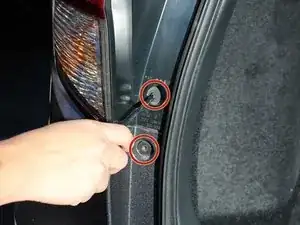

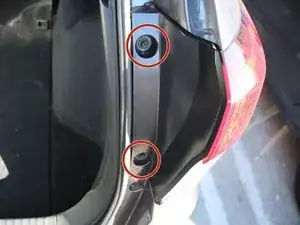

    • Remove the two screws beside each tail light assembly (four total) using a Phillips #1 screwdriver.

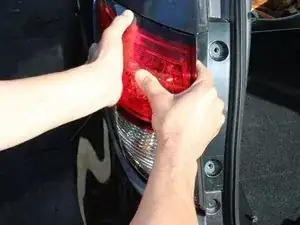

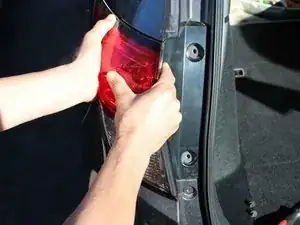

  3. j1NUYxFxWhLvhuRa
    j1NUYxFxWhLvhuRa
    gjs5EZLZwVfbdrUM
    • Place both hands on the tail light assembly and pull it directly outwards (away from the vehicle).

    • The tail light assembly will still be connected to the vehicle by wiring, so make sure to be careful when pulling the light assembly out.

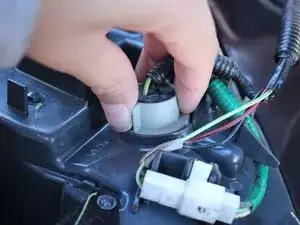

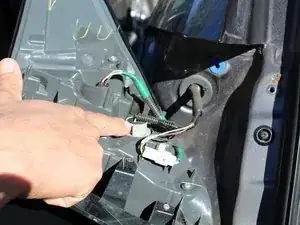

  4. DZfyMPOK13qhFBQu
    DZfyMPOK13qhFBQu
    tQctXBpQ4OEv4HFr
    XkuBxoEAHlQqK4yO

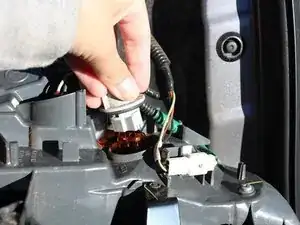

    • Remove the rear signal light bulb from the light assembly by rotating the bulb socket counterclockwise.

  5. gOfYu4CpIpqfgiMA
    gOfYu4CpIpqfgiMA
    ExNL31oJDULXsQJl

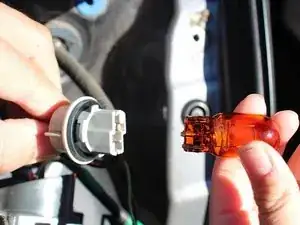

    • Pull apart the light bulb from its socket.

    • Replace with a new light bulb and apply pressure to ensure the light bulb is securely fastened.

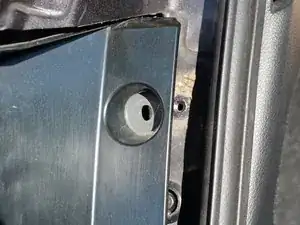

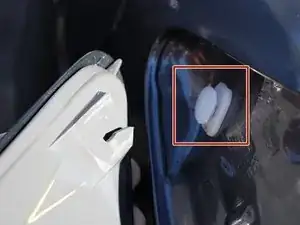

  6. nTZU5ZKeg1MCVjV2
    nTZU5ZKeg1MCVjV2
    jCJbjuPRNgbiEEYb
    rPKZFEGAGUFWQulh

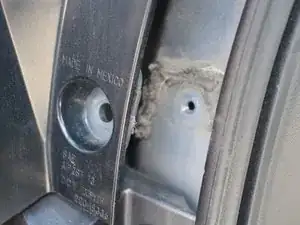

    • Slide the light assembly into the raised white plastic attached to the vehicle.

    • Align the holes on the light assembly to the holes on the vehicle and fasten the bolts into position.
