Introduction

This guide will show users how to replace the LCD screen on the Amazon Kindle DX in just a few simple steps.

Note: This guide is incomplete, the motherboard will need to be removed before the screen can be replaced.

  1. J4xxLgWyNc5RWqra
    • Take your Kindle and place it screen side down in order to open it from the back. Use the opening tool from the ifixit tool kit and insert it between the metal casing and plastic top piece.

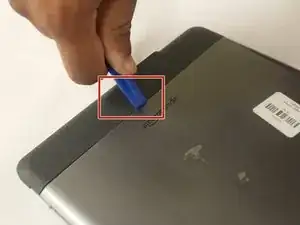

  2. mD2ywvNNv2O1GTGN
    • Once enough pressure is applied the small piece will pop open.

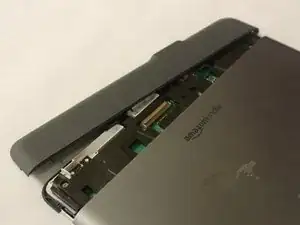

  3. OqGuqA51lgmKpaMr
    • Remove the plastic piece.

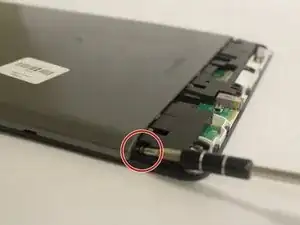

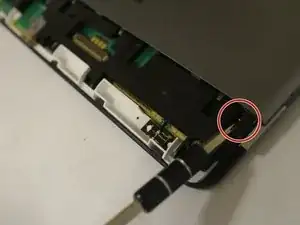

  4. aBY2mjuCBRoeqZSQ
    aBY2mjuCBRoeqZSQ
    l1uwrMXPjFgtAV3Q
    • Once the small plastic piece is removed you will need to locate two 40mm screws on both corners of the remaining casing. Use the PH000 Philips Head Screwdriver from the tool kit to remove both screws.

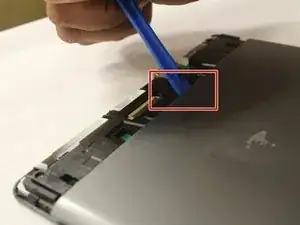

  5. qQlc4gEIFf2nKpaZ
    • Use the opening tool again to take the off the bigger metal piece.

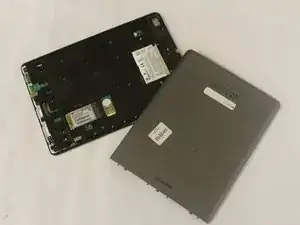

  6. 6IEuG6DJ13iFi4GV
    • Once the piece removed, locate the battery.

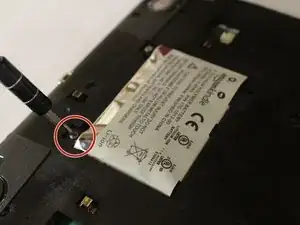

  7. tT2d6pwj1du1fJJq
    tT2d6pwj1du1fJJq
    aXyhVyxvpRucpwFs
    • Locate the two 30mm screws securing the battery on the bottom of the Kindle DX. Use the PH00 Philips head screw driver from the tool kit to remove both screws.

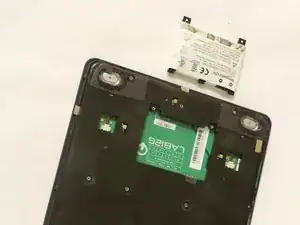

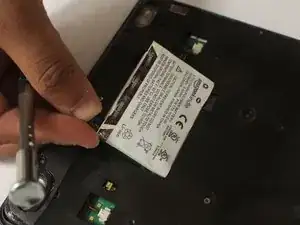

  8. KJLPwSqLxX52fGnM
    KJLPwSqLxX52fGnM
    GmG1btLFGbWVCigb
    • Take the battery off once the screws have been removed.

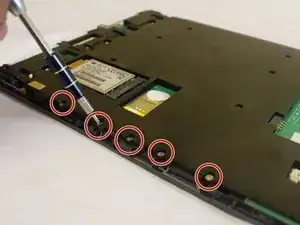

  9. JlvNxZLKvMefgDZw
    JlvNxZLKvMefgDZw
    MnMfEoThEC2qTUdY
    • Unscrew the 30 mm screws using a Phillips #000 screwdriver as shown in the picture.

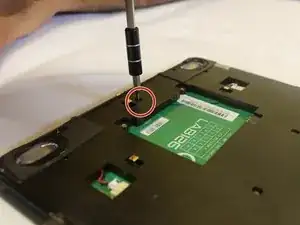

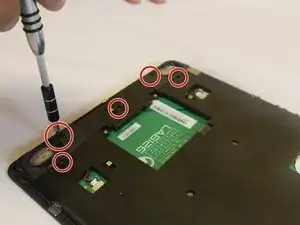

  10. BpxGqTUsjsrA1d5A
    BpxGqTUsjsrA1d5A
    5WKjMdloWWVdQA6k
    • Unscrew the 30 mm screws using a Phillips #000 screwdriver as demonstrated in the picture.

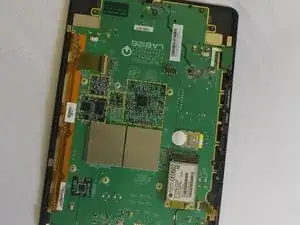

  11. BDZMwjhPlEWhvOXk
    • Remove the black case to reveal the mother board.

    The back case will still be attached to the motherboard here because the two speaker wires are still connected. You made no mention of removing the speaker wires? These connectors are small and stubborn while removing.

    airshack -

  12. JADUNHR2LtFLkIGO
    • Remove the motherboard from the display assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Lori White

Member since: 28/09/16

549 Reputation

3 comments

Guide is incomplete :(

Robert Rogers -

I can follow and understand up to step 11.

Steps 12 and 13 loose me, why would one need to remove the metal protection lid / shield? There does not seem to be any screws covered by the lids that need to be removed.

one would need to unclip the screen from the motherboard the lead off board from the wireless card to aerial and unscrew the remaining motherboard screws at least before you could remove the motherboard to access the screen to replace it.

Terry Mummery -

Guide is useless and should be removed or replaced.

golan.benoni -
