Introduction

This guide will show you how to replace a switch on the Asus ROG Spatha. For this fix you will need a replacement switch and a Torx T10 screwdriver. This repair is relatively easy to do and will take you about 10 to 15 minutes. This repair will allow you to reuse your mouse for another rated 50 million clicks, expanding the life of the mouse by quite a long time.

  1. URVdVptQOQuc53Rq
    URVdVptQOQuc53Rq
    R3EgCh2xvmI36yOt

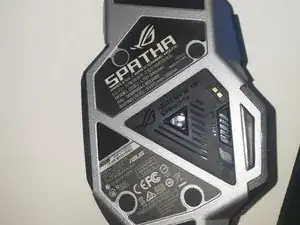

    • Make sure the mouse is powered off.

    • If the green is visible like in the first photo, turn the switch to fully power down the device.

  2. YcNHq6yEycsuuEI3
    YcNHq6yEycsuuEI3
    I4YBCuFhbNPIG1ku

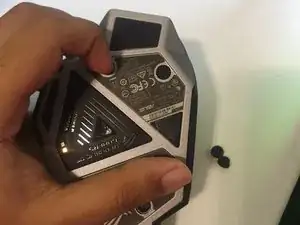

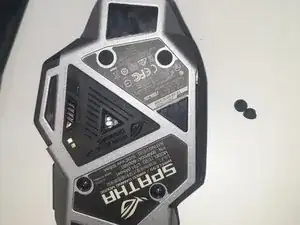

    • Remove the screw covers.

  3. YTOH2FHQJpyDUnYw
    YTOH2FHQJpyDUnYw
    2DlPFNHJh3RwOvO1

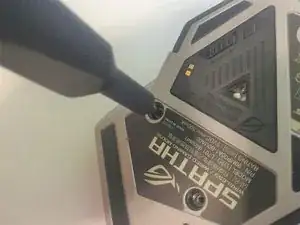

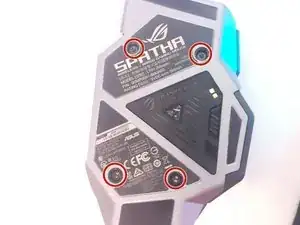

    • Using a Torx T10 driver, remove the four screws from the device.

  4. rKUaB52mv1a6aNHi
    rKUaB52mv1a6aNHi
    EEHCaXUKvKIAMjKR

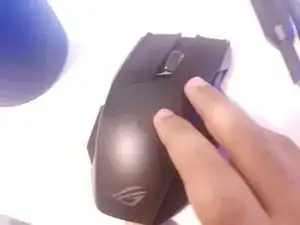

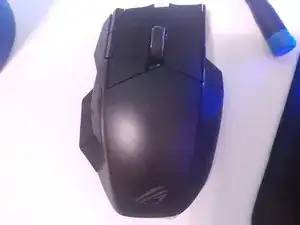

    • Flip the mouse over and remove the top plastic casing.

  5. eR5LugAJqZfREtKN
    eR5LugAJqZfREtKN
    hhFAIOUm2LQFULSN
    sfDuNTf3GeJ4HbtE

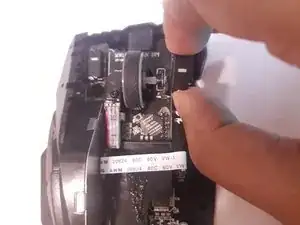

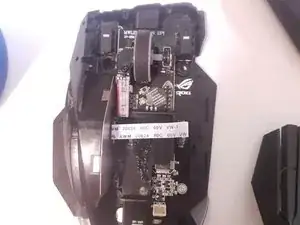

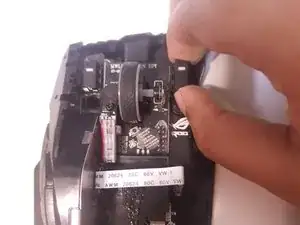

    • After locating which switch you need to replace, grab the switch by the top and the bottom and carefully pull it out of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
