Asus VivoTab Smart Digitizer Touch Screen Replacement

Written By: Zach Hatten
  • Comments: 5
Asus VivoTab Smart Digitizer Touch Screen Replacement

Difficulty

Moderate

Steps

6

Time Required

20 - 30 minutes

Introduction

This guide will show you how to take apart your device and replace its Digitizer Touch Screen.

Be cautious not to smudge or scratch the screen during replacement.

  1. vPgc4OqPgaFXcipQ
    vPgc4OqPgaFXcipQ
    UsMX4qxPN3sjQVja
    mrfKPJrQsnqJGb5y

    • Power off the device before you begin disassembly.

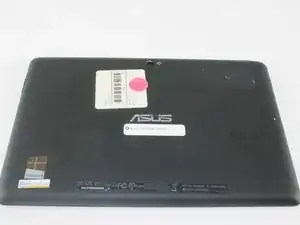

    • Place the device face down on a flat surface.

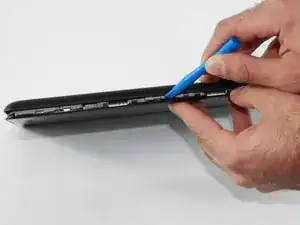

    • Remove the back panel with the plastic opening tool by sliding the tool around the edge of the panel.

  2. 4K4fCMoodUTYhOCw
    4K4fCMoodUTYhOCw
    BUWTkNGRLTTE2eDx
    FEwWGbZvnBMIITLk

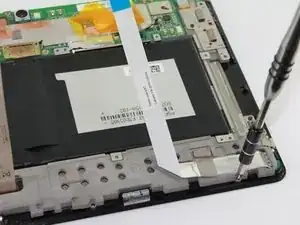

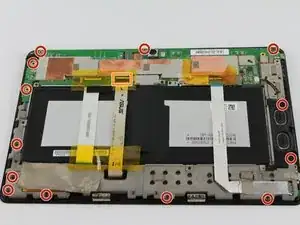

    • Remove thirteen 3.7 mm Phillips #00 screws

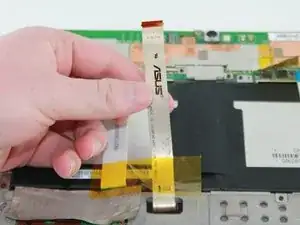

    • Unplug the middle, red-tipped ribbon from the device by lifting up on it. This can be done with your hands or with tweezers.

    • The ribbons are fragile. Take care not to damage the ribbon while removing it.

    At this step, i have 2-3 more screws at the top-right of the board.

    Pelletier Teddy -

    At this step pay attention, not all the screws are identical! Mark the position of them.

    Alonir Vieira -

  3. mNU2TWoFhoi3PSYS
    mNU2TWoFhoi3PSYS
    VBNmdykWhJdgZY1o
    r1CX2ZQGlr6M6w1G

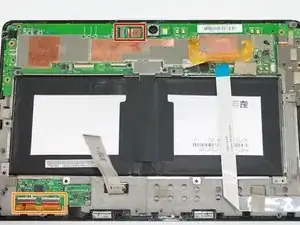

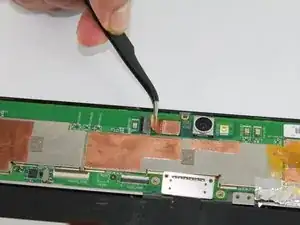

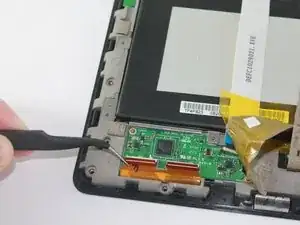

    • Unplug the camera ribbon by pulling out on it with a pair of tweezers.

    • Unplug the double ribbon from the device by pulling out on it with a pair of tweezers.

    • The ribbons are fragile. Take care not to tear or damage the ribbons when removing them from the device.

    It’s very important to unplug the right ribbon for the next step !

    It’s an easy way to unplug the left ribbon too because it came more easy to unplug the double ribbon by lift the small motherboard at the bottom left.

    Pelletier Teddy -

  4. bFQXgtSpEU6ccVgN
    bFQXgtSpEU6ccVgN
    ebDSFSpQRv1OdUtM
    il6sUtAUExtlPvVs

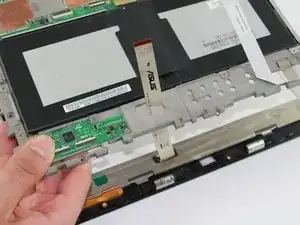

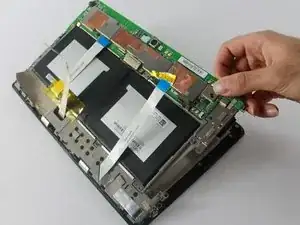

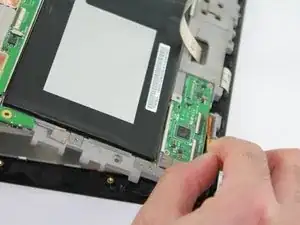

    • Carefully lift the internal base of the device from the screen, also threading the ribbons through the slots.

    • Be sure to remove the tape above the right ribbon (not shown here) and pull it through the frame like the one in the middle. Not removing the tape can cause the ribbon to tear, possibly destroying the charging board.

    • The ribbons are fragile. Take care not to damage the ribbons when removing the base of the device.

  5. mH1wGESPBIpqpXRV
    mH1wGESPBIpqpXRV
    wBrQHKVIYrENBhOI

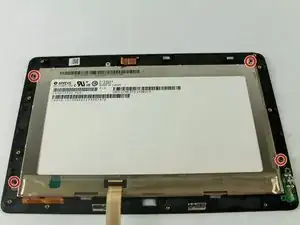

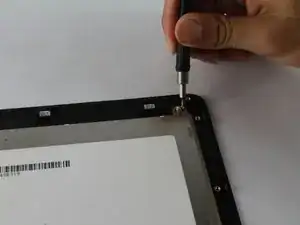

    • Remove four 2.7 mm Phillips #00 screws.

  6. RJY4psmJpoJBbXpk
    RJY4psmJpoJBbXpk
    qJJ2S5maDXQFkFsd
    FBsWwMtAVGQZffjV

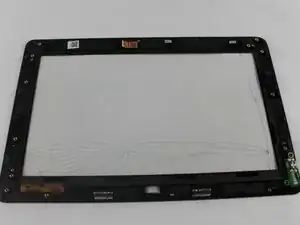

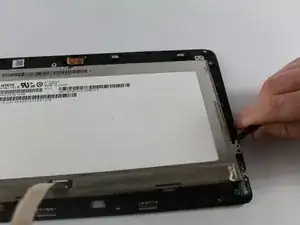

    • Carefully use tweezers to lift the LCD screen from the digitizer touch screen.

    • Use caution when touching the LCD screen with your hands. It may leave unwanted residue and finger prints.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Zach Hatten

Member since: 06/10/16

548 Reputation

2 comments

Attention: this procedure has a big trap, in which I fell by following it: I have broken the glued connection between USB/power plug-in unit (on the right-side bottom) and its strip cable (visible on the right side and going into a whole on the right side bottom). Result: when I finished the assembly and tried to start the tablet, I only get the 3 blinking of the power LED, saying the the power connection is not OK.

The instructions should mention, that we have to disconnect also the power/USB strip-cable and take it out the whole, without braking the glued connection !!! - So, the photo in Etape 5 should show also the strip-cable still connected to the USB/power plug-in unit (green element on right-side bottom) !! - This in not the case on your Etape 5 photo and I am wondering how you could re-establish this connection when re-assembling the board.

Consequence: I have to find and buy a new power/USB connector (called DC board) which has the strip-cable included, i.e. attached.

Really annoying !

Richard -

I don’t like this tutorial.

First: as Richard mentioned be very careful to get the flex out of the USB/power plug-in-unit. I broke it as well. It’s a newby thing. Doesn’t matter, it is easy to buy a new one but it takes time off course.

Second: This tutorial has the title of replacing the ** digitizer** but suggests to buy an LCD . Likely many people don’t need to buy a new LCD but a only a reliable digitizer (that’s the frame basically).

Third: Be very cautious about buying a new digitizer. Maybe for a reason it is not part of this tutorial. So you want to replace the digitizer, but there is not a digitizer sold as a part in this tuturial?! Weird. Anyway: I read there were THREE variations of this digitizer, and you really have to buy the one that fits your tablet. Others won’t work. So I suggest to read the flex. I have done this step, and now bought a new, original, digitizer for this tablet. But according a pro it still isn’t a safe buy. I don’t know if he is right, he might be though.

JustBe -
