Introduction

This instructional guide is made to assist you in replacing your Audi A1 key fob battery. The battery is the key fob’s sole source of power. Symptoms of a faulty or dead battery would include the inability to lock/unlock your car using the key fob, or a significant decrease in distance from the car in which the key fob will still be functional. Another possibility is that the battery could be swollen, so exercise caution when opening the key casing and removing the battery. Changing the battery yourself in your key fob is a cheap and easy alternative to buying a new one, as they are expensive and would create unnecessary waste

A supplemental reference to instructions on how to change the key fob battery on Audi keys can be found in this link.

  1. jKySiMEPr4JPhoIe
    jKySiMEPr4JPhoIe

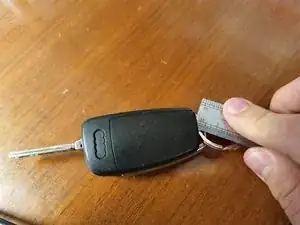

    hlydJBPHx1mLfuBd

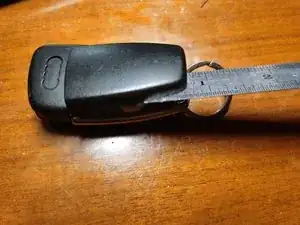

    q1WGxGcQMSMMERIA
    • Use a ruler or something less than or equal to 2 millimeters thick to poke through the slit at the bottom of the key fob and pry the key fob's shell open.

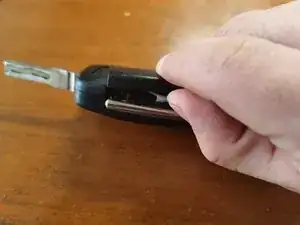

  2. MDM3ec5AoIFOLeHp
    MDM3ec5AoIFOLeHp
    JQrLeuypMkxgHxvP

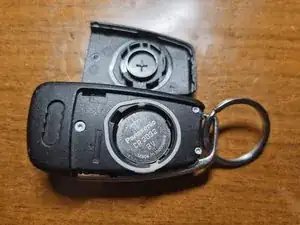

    PuWWNioAinAcGONr
    • Take out the key fob shell.

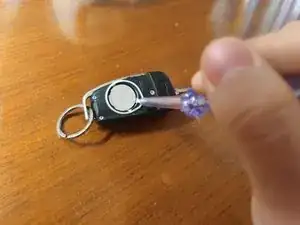

  3. Smruwlnm2MyAlRLx
    Smruwlnm2MyAlRLx

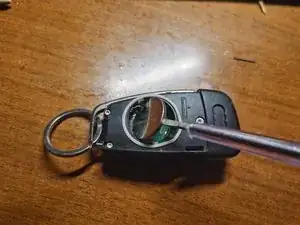

    1jerLZ4rTs2Gdckr
    • Poke a prying tool into the rectangular notch on the edge of the battery slot.

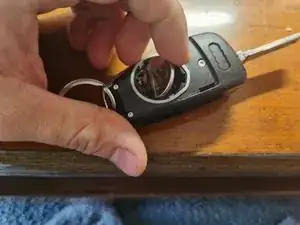

  4. ypFLgA6emaQEdKyu
    ypFLgA6emaQEdKyu
    saKVRLHesGpXrIRF
    6ZuhcHgFGDWw1hWs

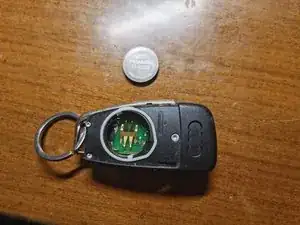

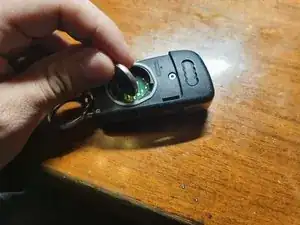

    • Gently lift out the battery.

  5. puHSMWkSbHNCSZO5
    puHSMWkSbHNCSZO5
    Ls4tarE3mVMeJfpN

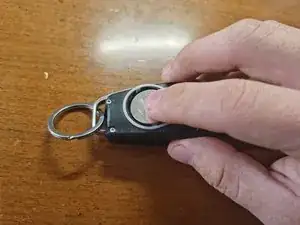

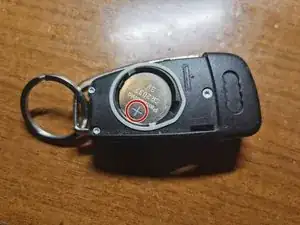

    • Put the new battery into the slot.

    • The positive pole of the battery (marked with a plus sign) should face up.

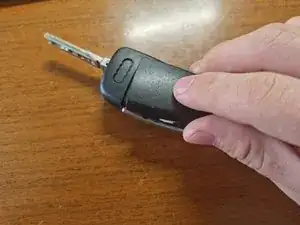

  6. VVWjDKGOetAlHVrT
    VVWjDKGOetAlHVrT
    5xZJ16SUrjDv3NeS

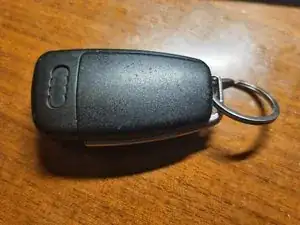

    • Put the shell back in its original position.

    • You will hear a clicking sound when it snaps into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
