Introduction

If you have a broken bookshelf that is ready for the trash then this guide is for you. Before starting your fast fix project please remember that you will need at least two people to complete your project. Through this process you will be taking a broken down bookshelf and turning it into a strong and sturdy shelf that will last a lifetime by simply replacing the back of the shelf. Please note that you will be using a jig saw during this process.

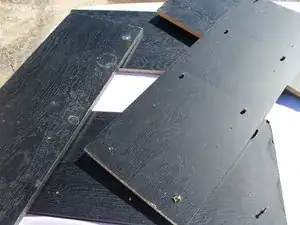

  1. 1yHbDWqJ26RSRyQa
    • Gather all pieces of the bookshelf if it fell apart or the shelf itself is still together.

    • You will need two people to complete this project.

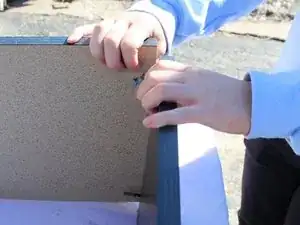

  2. T4Wr1h4pGpRWuYVv
    T4Wr1h4pGpRWuYVv
    fCfhtaLe5LcYaAhG
    HBum5wObJZRnnEoW
    • You will need to put the bookshelf back together by holding the sides together.

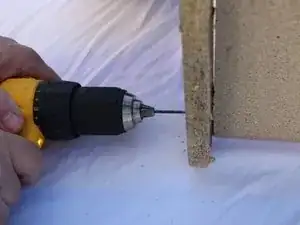

    • Drill new holes to insert new screws to reinforce the shelf. Use a 1/8 inch drill bit.

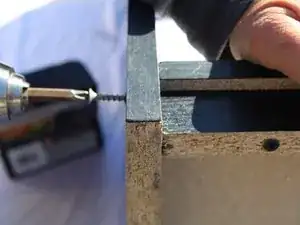

    • Put screws into the freshly made holes with 1/8 by 1 inch wood screws to bring it together.

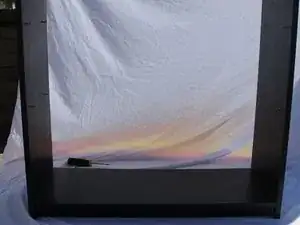

  3. WYJVDRhwperhIGBG
    WYJVDRhwperhIGBG
    WVV1NWDa3tyJNk5w
    blsKR2QOPJOWmXjs
    • Now that the base of the bookshelf is back together, we will need to measure out the size of board needed for the new backing.

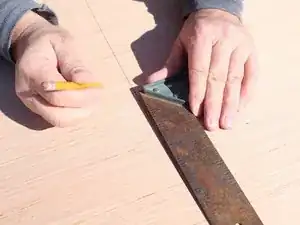

    • Use the measuring tape and the square ruler to measure out the specific size you need. Use a pencil to draw the lines out so you can saw the piece out with precision.

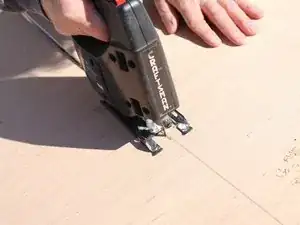

    • Use the jig saw to cut the piece of plywood out following the lines you just drew.

  4. Yq1U1DJyShlp5qCA
    Yq1U1DJyShlp5qCA
    uMsufuvCF24VcMrp
    IecPRwCrayCixTtS

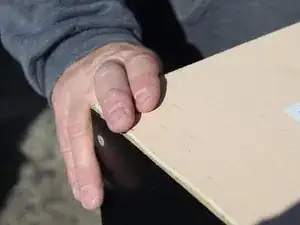

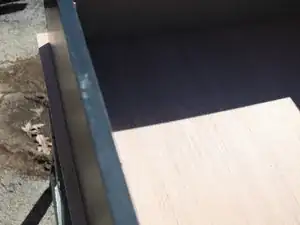

    • Line your new piece of plywood that you just cut, up with the back of the bookshelf.

    • Make sure that the corners are lined up so that as you hammer in the nails it stays lined up and even.

  5. C2uFaZ3BvkDNRH2e
    C2uFaZ3BvkDNRH2e
    GXdcZTgE2G3QYEaQ

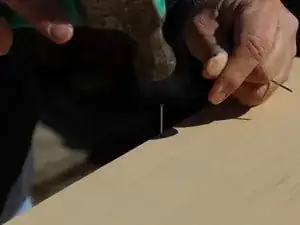

    • Start from the top and work your way down each side when putting the nails in so the board doesn't bow.

    • Use 2d penny nails and hammer them in along all four sides.

    • Five nails on each of the four sides is all you will need.

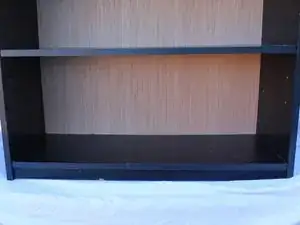

  6. VGjj2bdH5C112LVQ
    VGjj2bdH5C112LVQ
    RHtAYs6A2Mh2OEev

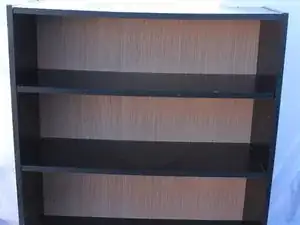

    • The shelf has its new plywood backing, so you can stand it up and you will feel the immediate difference in the sturdiness of your new shelf.

    • Place the shelf in the room of your choosing and place your books on it, knowing that it will not fall apart.
