Introduction

A damaged flex hose on your Bissell OptiClean Cyclonic Vacuum could be a reason that suction power is lost or low. If this is the case, it will be necessary to replace the damaged flex hose with a new one. This guide will teach you how to detach and replace the flex hose with handle on your Bissell OptiClean Cyclonic Vacuum.

  1. HMdCijVwkd5FwkXP
    HMdCijVwkd5FwkXP
    ZfNDYULfbNB32eTw

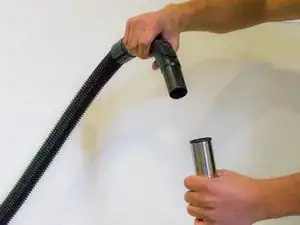

    • Grab hold of both the flex hose handle and the extension wand.

    • Pull straight out to detach the handle from the extension wand.

  2. 4xxkDdwXBjiRGadK

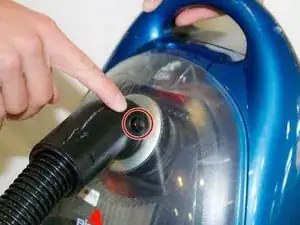

    • Locate the lock clip on the other end of the flex hose.

    - color code this step to match the red indicator

    -watch out for the lighting (hard shadows)

    Austin Marshall -

  3. KaLcVcuHLpZWRutX
    KaLcVcuHLpZWRutX
    BQeHDAUAEEHlZU2F

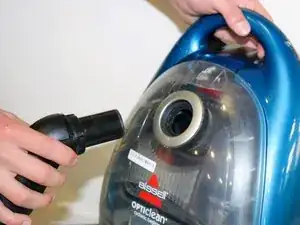

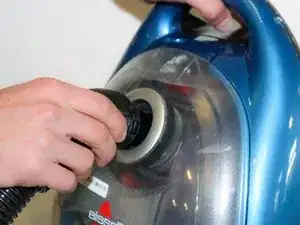

    • Hold down the lock clip to unlock the flex hose from the vacuum.

    • Remove the flex hose from the vacuum.

Conclusion

To reassemble your device, follow these instructions in reverse order.
