Boston Electric Pencil Sharpener Cutter Replacement

Written By: Randy Yonce
  • Comments: 4
Boston Electric Pencil Sharpener Cutter Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

If your pencil sharpener is failing to sharpen your pencil or unevenly sharpening your pencil, it might be time to replace the cutter. You can find replacement cutters here.

  1. ekS6qvSmepSYCIW2
    ekS6qvSmepSYCIW2
    RPj4laPmIDDCCsU6
    AHOjxhDbiAcQ5OwG

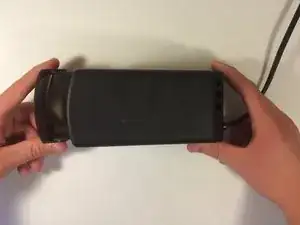

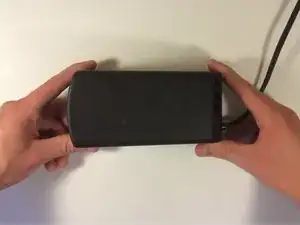

    • Remove the tray from the front of the pencil sharpener and empty the pencil shavings.

    • Make sure the pencil sharpener is unplugged!

  2. HZ2PpffFqx2Aq4Ja
    HZ2PpffFqx2Aq4Ja
    lylgUwbvkaFpFL11
    mi5tXkaCUZO43KFk

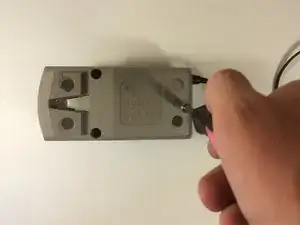

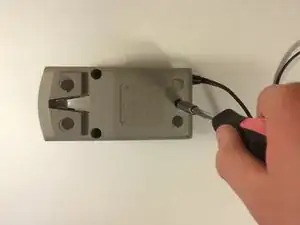

    • Unscrew the three screws securing the bottom of the sharpener.

    • The screwdriver must be 6” long to reach the two screws in the front of the sharpener.

  3. qJjwLBKyTTWC2lRT
    qJjwLBKyTTWC2lRT
    eMPfalXbBaBCFfuq

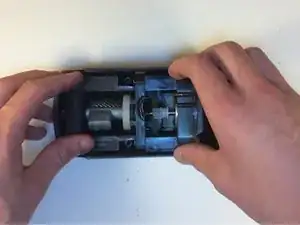

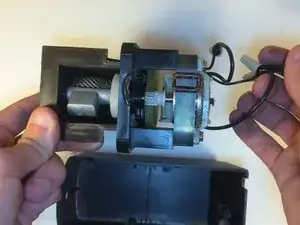

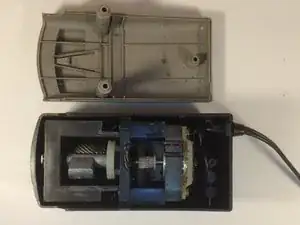

    • Lift the motor and cutter from the top case of the sharpener.

    • Carefully move the wires so that the case can be completely removed.

    • You shouldn’t have to disconnect any wires to take the case off. If so, contact the manufacturer.

  4. Ykx1N3CJjFNR4KUW
    Ykx1N3CJjFNR4KUW
    VQk41briqSM1xDoq

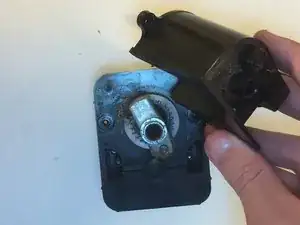

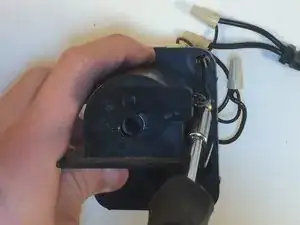

    • Unscrew the protective case around the cutter by locating the two screw on the front of the sharpener.

  5. Tcd6d5BqZYvIEHpA
    Tcd6d5BqZYvIEHpA
    wvxXmIm2NsUCoJ2v
    HKwnylNKpFCpYXpY

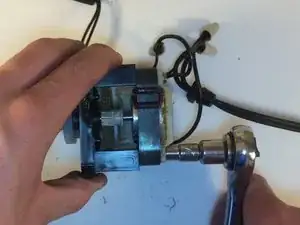

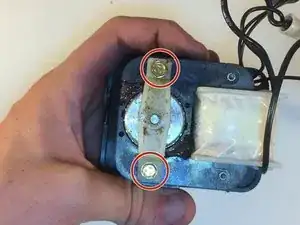

    • Use the socket wrench to remove the two bolts in the back of the sharpener.

    • You need to remove the motor in order to reach the back of the cutter.

  6. ubYVkTTh5AnLdtWF

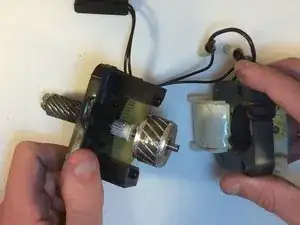

    • Carefully separate the motor and the case around the motor from the cutter.

    • Guide the wires through the holes in the casing to detach them from the cutter section of the sharpener.

  7. yTDg2mX2BLgd6vRQ
    yTDg2mX2BLgd6vRQ
    EIMZ5Q1ETdCMRFkB

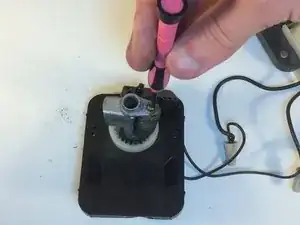

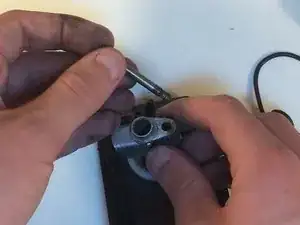

    • Unscrew the sharpener with a small standard screwdriver and remove the long screw to loosen the cutter.

    • Make sure to hold the cutter to keep it from rotating.

  8. LEBMUVSTWO33IFBo

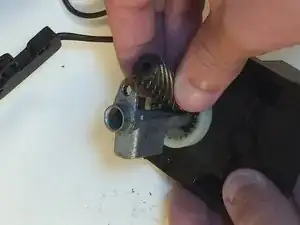

    • Replace the cutter.

    • WD-40 would be helpful, but not necessary.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Randy Yonce

Member since: 29/09/15

101 Reputation

4 comments

Great instructions on replacing the sharpener. My father took the model 18 apart but failed to document with pictures on the step by step breakdown. I'm left with out a crucial part of the re- installment. The question is in step 7, the piece right behind and below the screw driver is a plastic piece with two wires comming out of it. where does this piece fit? any help or redirection to a site that might have this info. direct reply at

thopper1@satx.rr.com

tah33 -

tah33 - that part is the switch that senses the pencil to turn on power. There is a plastic piece that goes over the top of the cutting mechanism to help guide all the shavings down into the shavings tray. The switch goes onto the front of that piece. If you look at step 4 it shows the switch mounted to the piece I am talking about,  Randy (the author) calls it the protective case.

David Ryan -

Steps 5 and 6 are not required.

jffleck -

The wire nuts were loose and came off, is there a way to know for certain which wires go together?
