Compaq iPAQ Pocket PC 3830 Battery Replacement

Written By: Sedina Cavcic
  • Comments: 2
Compaq iPAQ Pocket PC 3830 Battery Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

  1. 2adcwvjHZA6yadej
    2adcwvjHZA6yadej
    W2nPBILEOTXuPHct

    • Remove the four 0.8 mm Phillips #00 screws from the back cover.

  2. pBIUghhxAqNbp26V

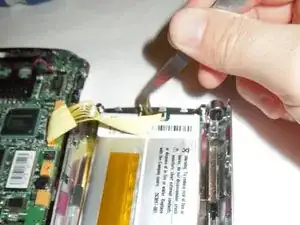

    • Detach the yellow wire from comb that is attached to the battery.

  3. F4e3AaVnQCQIGxVf

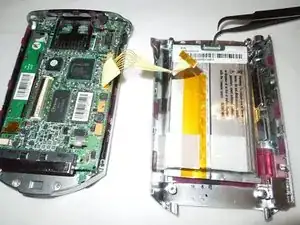

    • The yellow wire is removed from the comb attached to the battery.

  4. oYJWWutEKtTtFHjm

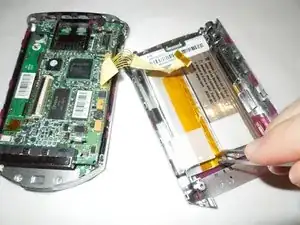

    • Remove the battery using tweezers from back cover.

  5. KOS1u1KVno3WlCAR

    • Detach the battery from back cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
