Compaq iPAQ Pocket PC 3830 Motherboard Replacement

Written By: Sedina Cavcic
  • Comments: 0
Compaq iPAQ Pocket PC 3830 Motherboard Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

This guide is to help users replace the motherboard from the Compaq iPAQ Pocket PC 3830.

  1. 1X2Po62IpoFeKMuW
    1X2Po62IpoFeKMuW
    qcRfI5uUpuTT3LNj

    • Remove the four 0.8mm Phillips #00 screws from the back cover.

  2. BMKuiAMHcdXHXXPw

    • Remove the two screws on top of the motherboard and the two screws on bottom of motherboard

  3. h5Y6SYUSxdiARVdN
    h5Y6SYUSxdiARVdN
    hDVlmZdEQENFFocD

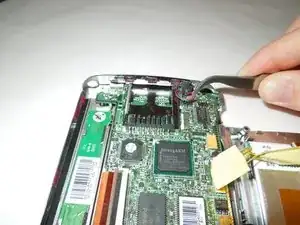

    • Detach the wires from their combs on the motherboard.

  4. OfLIwKuostVT4F21

    • Detach from comb that is located on motherboard.

  5. eeFhkjMMOiNDBSsT
    eeFhkjMMOiNDBSsT
    vksconh1oeJ6GHWF

    • Remove the small piece from the motherboard.

  6. uOT5TPbwVKYFEqXG

    • Use tweezers to remove last piece from the comb on the motherboard.

  7. IQUBlvCCCvGZdCSe

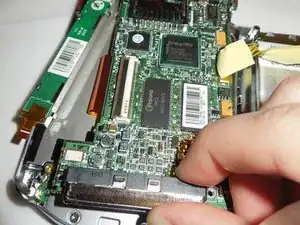

    • Remove the motherboard by simply lifting it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
