Dell OptiPlex 3070 Micro-PC Hard Drive Replacement

Written By: Krushi Patel
  • Comments: 1
Dell OptiPlex 3070 Micro-PC Hard Drive Replacement

Difficulty

Moderate

Steps

6

Time Required

30 - 45 minutes

Introduction

This guide will help you to replace your internal hard drive for Dell OptiPlex 3070 Micro PC.

Scenarios where you need to replace the hard drive:

  • If the hard-drive is corrupted and your PC no longer boots
  • If you need to more space and wants to upgrade for more GB
  • If your PC is running slow - replacing from HDD to latest compatible SSD will improve performance

Follow the step-by-step procedure to replace the hard drive.

  1. lOy3pg2LVYROaxLT
    lOy3pg2LVYROaxLT

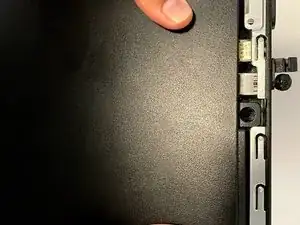

    COVOWyHRuENpOQbv

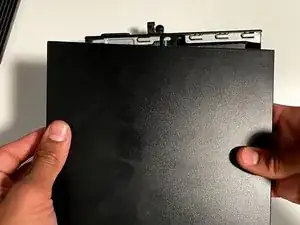

    YnrPeCebOC4MXQEj

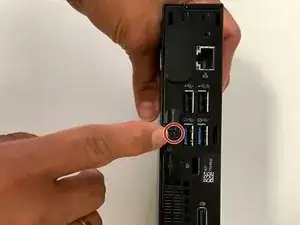

    • Prior to beginning this repair, power off the PC and remove all the cables, (including the power cable), to avoid damaging your device.

    • Use the Phillips #00 screwdriver to remove the single screw securing the case.

    • Slide the case horizontally away from the screw.

    • Remove the back case.

  2. JVl3jVZKcKvbBM4w
    JVl3jVZKcKvbBM4w
    GMLiwDQHQOSbPJ1k

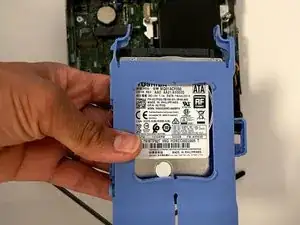

    ICilpZyyCrcGHDGT

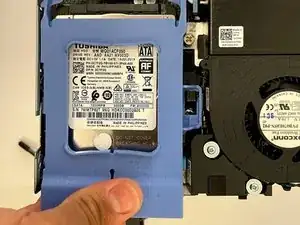

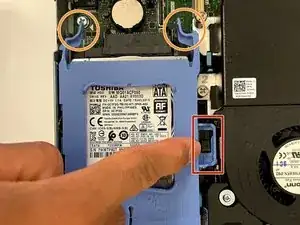

    • Unlock and remove the hard drive from the connector.

    • Push the two tabs on the hard drive caddy and slide it away from the connector.

    • Once unlocked, remove the hard drive from the main board.

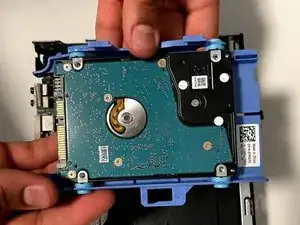

  3. HN1NqwTDN6LjiuBF
    HN1NqwTDN6LjiuBF

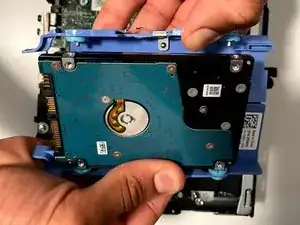

    XptAjKHRV66nQCIC
    AAyKXhgn6AeoLqOJ

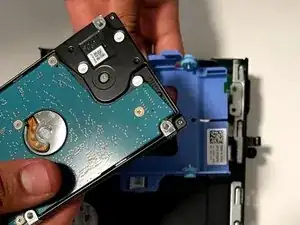

    • Pull the case away from the four screws at each corner of the old hard drive to remove it from the case.

    • The hard drive should come out easily and you don't need screwdriver to remove it.

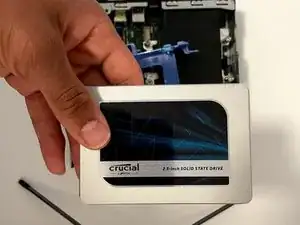

  4. HvOISYCvWKKYEXK6
    HvOISYCvWKKYEXK6
    BgYGJTnmg3Vp2BVV
    NLIVPjbusSWSZKnD

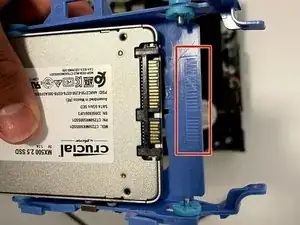

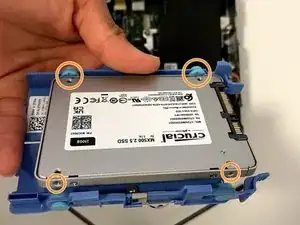

    • Put your new hard drive in the case but match the SATA connection to the lines in the hard drive case so you know it is placed correctly.

    • Lock the four screws from case into the new hard drive.

    • No need to use a screwdriver as these screws are just a press and lock type.

  5. qtRJmFKXPYBMPul1
    qtRJmFKXPYBMPul1

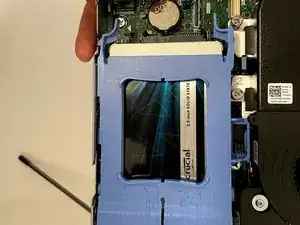

    ORCmPXBeadyASXbH
    4v6n5nCtVcDCEvLg

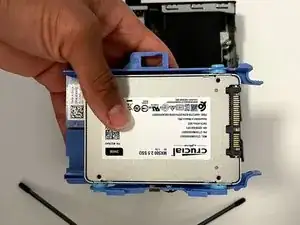

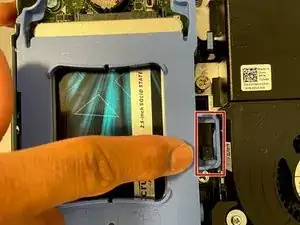

    • Flip the hard drive upside down.

    • Insert the hard drive into the connector.

    • Push the hard drive to lock it in.

    • You will hear a "click" sound when it locks.

  6. OlEC1pT1dPGHB52L
    OlEC1pT1dPGHB52L

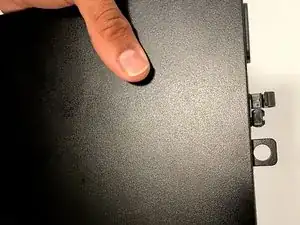

    vh1eRAQB5RgTKFBO
    wHdlGbcVIxobBUv3

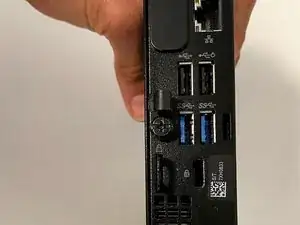

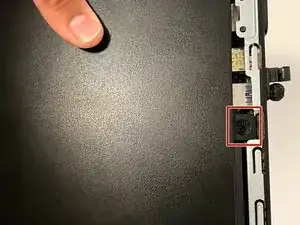

    • Put the cover back on and slide it with the steel tab towards the screw.

    • Make sure it is securely locked in. Check all the sides for any gaps.

    • Use the Phillips #00 screwdriver to replace the single screw and securely lock the cover.

Conclusion

I hope the guide helped you to replace the hard-drive and you will now enjoy more space and faster PC. Thank you.
