Dexcom G6 Receiver Battery Replacement

Written By: Andrew S
  • Comments: 3
Dexcom G6 Receiver Battery Replacement

Difficulty

Difficult

Steps

10

Time Required

No estimate

Introduction

  1. TQH5hba2OEb12Eyu

    • Unscrew the 6 Torx T5 screws from the back of the device

  2. ZVDEtYgaK1YcrEWJ
    ZVDEtYgaK1YcrEWJ
    t5XDOntxkxoC1n5u

    • Use a spudger to lift up the screen assembly ribbon cable flap, then remove the ribbon cable.

    • Screen Information: Model AM0310R-04 Lot # NHT18080052

    Thank you! Where can we buy the screen?

    Enrique -

    I didn't get any of the details on the screen when I tore it down, I will try to get the information from the original display when I can.

    Andrew S -

    Have you found any info on getting a replacement Screen? Some company must make theses

    Jim Beamed -

  3. VNBxiKf5nKlulWJe

    • Using a spudger, unplug the Charging Port connector from the motherboard.

  4. gjHfRaCQiEnLAicj

    • Remove the 2 silver Torx T5 screws holding the charging port down.

  5. TlZyLyTpCvvFC6Fl

    • Remove the Charging Port Assembly from the motherboard.

  6. epTZCXX2LeJlmtjs

    • Remove the silver Torx T5 screw holding the motherboard down.

  7. ORXKXc6ySba4pyNO
    ORXKXc6ySba4pyNO
    AcG5QONQeFqP6oHw

    • Using a spudger, carefully remove the battery connector on the left side of the motherboard.

  8. JbcWmZHiiCbSypOR

    • Using a spudger, carefully pry up the motherboard to remove it.

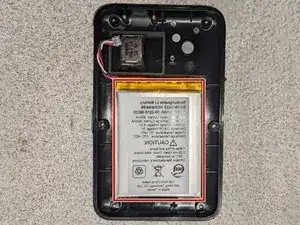

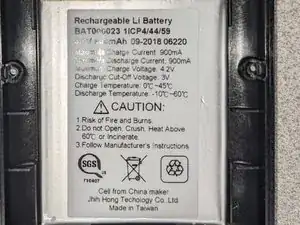

  9. JEEsK4hjPBMHRHhs
    JEEsK4hjPBMHRHhs
    Rk1516LeKuvnxqVl
    Vxa4G1AwotThM6s2

    • Use heat to soften the adhesive holding the battery down.

    • Carefully use one or more opening picks to remove the adhesive holding the battery down, then remove the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
