Dexcom G6 Receiver Charging Port Replacement

Written By: Andrew S

Comments: 8

Dexcom G6 Receiver Charging Port Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

Tools

Step 1

Unscrew the 6 Torx T5 screws from the back of the device

Step 2

Use a spudger to lift up the screen assembly ribbon cable flap, then remove the ribbon cable.
Screen Information: Model AM0310R-04 Lot # NHT18080052

Thank you! Where can we buy the screen?

Enrique -

I didn't get any of the details on the screen when I tore it down, I will try to get the information from the original display when I can.

Andrew S -

Have you found any info on getting a replacement Screen? Some company must make theses

Jim Beamed -

Step 3

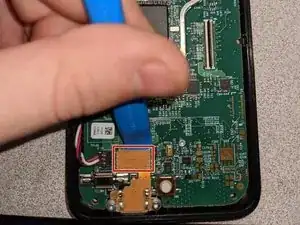

Using a spudger, unplug the Charging Port connector from the motherboard.

Step 4

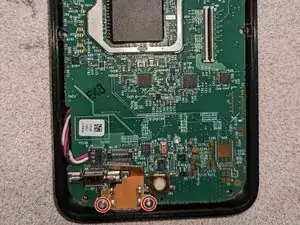

Remove the 2 silver Torx T5 screws holding the charging port down.

Step 5

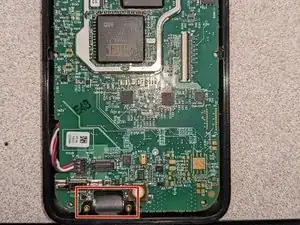

Remove the Charging Port Assembly from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Andrew S

Member since: 30/07/21

13791 Reputation

5 comments

Where can the part be purchased?

Mayor of Koala Corner -

I'm not sure if there is a replacement charging port assembly available online. If you're good at microsoldering, you could replace the surface mount micro USB port on the assembly.

Andrew S -

where can the part be purchased?

Mayor of Koala Corner -

would a cell phone repair shop be able to do this?

Ron Magliacane -

If they are comfortable with it. Tell them it will probably require microsoldering.

Andrew S -
