Disassembling Toshiba T1960CS for HDD Removal

Written By: WayneG
  • Comments: 2
Disassembling Toshiba T1960CS for HDD Removal

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

Access to Hard Disk Drive

  1. WNSiywLTkGahX1uV

    • Pry up cover, remove screw.

  2. cVTe3Plc5rhS1LBh

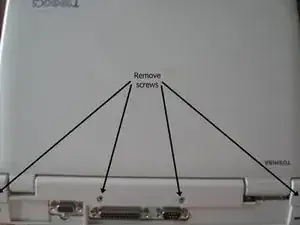

    • Remove screws.

  3. iix6keLyboM3Yt5B

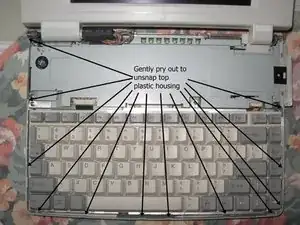

    • Gently pry out to unsnap top plastic housing.

  4. XkldcFKENYPJrpyP

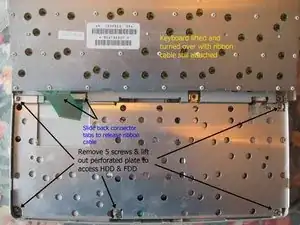

    • Lift keyboard and flip over, but do not remove, it is still attached by ribbon cable.

    • Slide back connector tabs to release ribbon cable.

    • Remove 5 screws and lift out plate to access HDD and FDD.

  5. JRDiVxD1vYwNuw6G

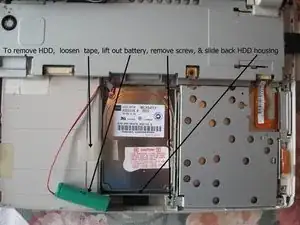

    • To remove HDD loosen tape, lift out BIOS battery, remove screws and slide back HDD housing.

    In this view, the ribbon cable connector tabs are shown in their open position.

    WayneG -

Conclusion

To reassemble your device, follow these instructions in reverse order.
