Introduction
You should have a basic understanding of tool usage (ie. screwdrivers)
-
-
Remove the face plate by depressing the small plastic tab
-
*NOTE: eject disk tray first before dis-assembly to gain access.
-
-
-

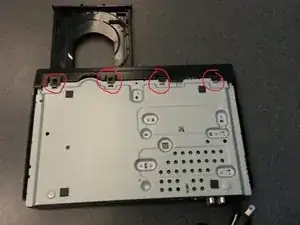

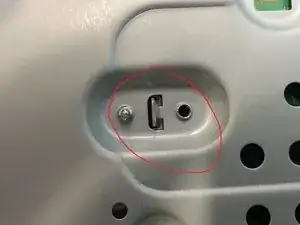

Release front 4 tabs in order to slide main cover forward.
-
*NOTE: slide only a few mils forwards before next step.
-
-
-

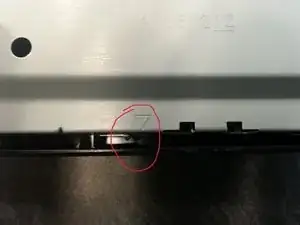

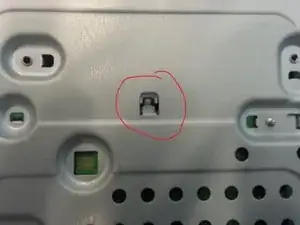

Release tabs on both left and right sides of unit while maintaining forward pressure to slide cover off.
-
*NOTE: The arrows depict where the tabs are located.
-
-
-
After cover removal, you should now have access to the internal components.
-

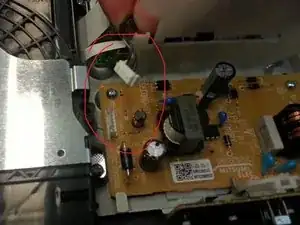

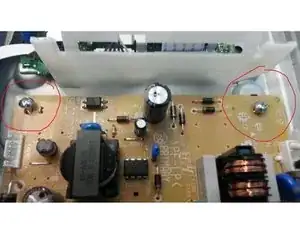

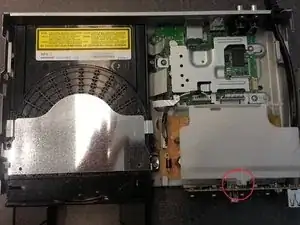

We will begin removing the power supply. Compress the center clip and open plastic shield.
-
-
-

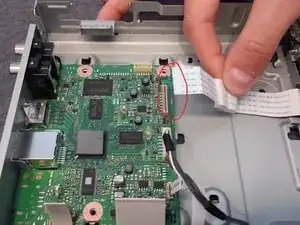

Pull on indicated ribbon cable to begin removal of front display.
-

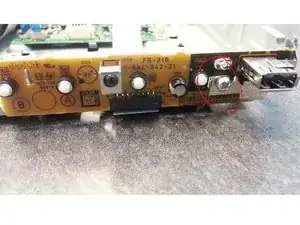

Now remove single screw to remove front display panel.
-
-
-
Next, remove all three ribbon cables attached to optical disc drive.
-

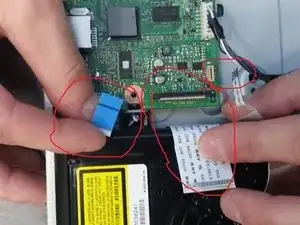

*NOTE: largest ribbon cable has small secure clamp, be sure to release it before pulling.
-

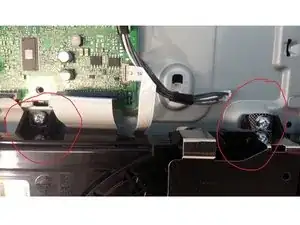

Now unscrew both mounting screw for optical disc drive for complete removal.
-
-
-

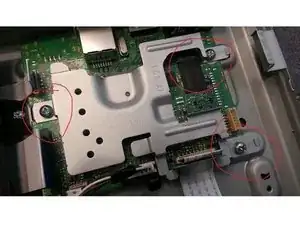

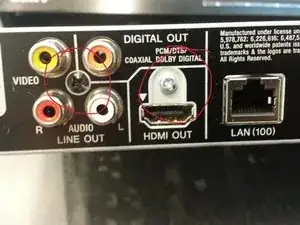

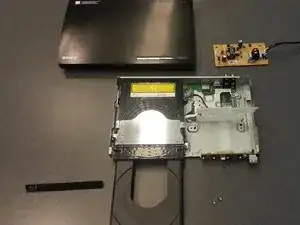

To completely remove the main board, locate screws on back of unit. Unscrew these 2 screws and then slide main board out.
-
-
-

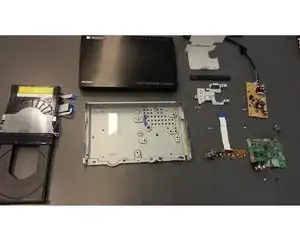

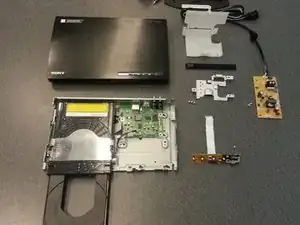

You should now be completely dis-assembled. For further dis-assembly of the optical disc drive, continue to step 15.
-
-
-
First remove metal shroud exposing tabs.
-

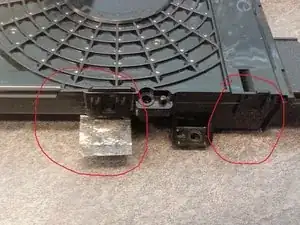

Peel back security tape and release all 4 tabs (2 on each side) for removal of top cover.
-

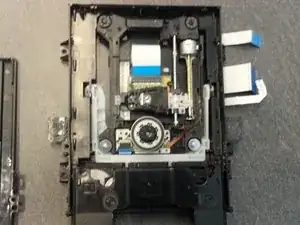

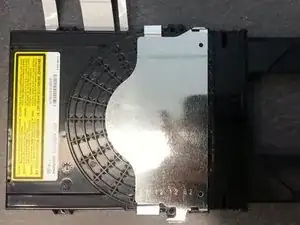

Now the internal components of the optical disc drive are now exposed.
-
To reassemble your device, follow these instructions in reverse order.
