Introduction

  1. OK25oKcSNnSSCPnG
    OK25oKcSNnSSCPnG
    JLh1bpKpluwZHUcS
    VPIfQDHushtt6nmH

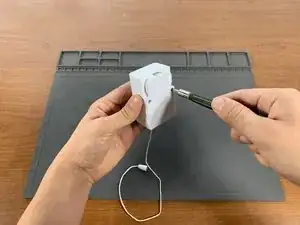

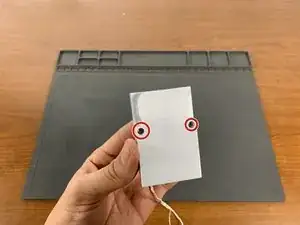

    • Remove the two Phillips plastic threading screws with a #1 Phillips head screwdriver.

  2. Zfs5MjKEGGdJxALv
    Zfs5MjKEGGdJxALv
    wSLhwDoq3PgHRYjd

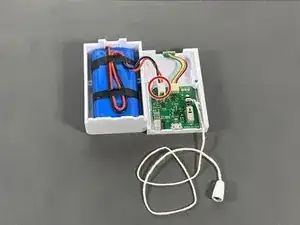

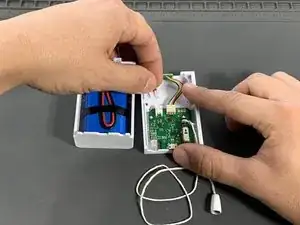

    • Disconnect the battery pack connector.

  3. hlFusONZqcRrOVp5

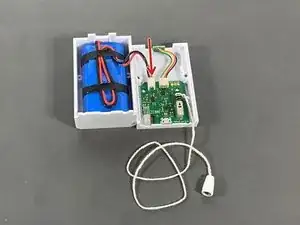

    • After a few seconds, reconnect the battery pack to the circuit board.

  4. 2loP16GRx11Leuqi
    2loP16GRx11Leuqi
    eGJoqTJcjoEpMDQD

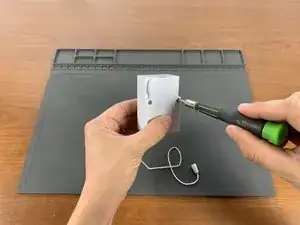

    • Hold the battery box together and insert one screw. Try tightening the screw. If the screw does not tighten, remove the screw and insert it again. The screw must be inserted straight to catch the threaded hole.

    • Repeat the above step for the second screw.

Conclusion

To reassemble your device, follow these instructions in reverse order.
