Introduction

It is not common knowledge to replace the filter in a fan coil system despite the fact that it may seem so to others. This guide will ensure that you are able to replace the existing filter in your fan coil system in a quick and effective manner. People will spend money to have someone come in and repair their fan coil due to damage caused by dust and residue build-up on the filter. Meanwhile, this damage can be avoided altogether by regular filter changes. A fan coil filter should be replaced every 2-3 months to ensure clean air quality in the household.

  1. THUeyF6bxIwR4bXn
    • Clean the fan coil grilles using a paper towel and water.

    • Ensure that the register is thoroughly cleaned out before starting the filter replacement process.

    I would definitely recommend using a pleated filter. It will cost you a a little bit more than a fiberglass filter or one of those washable filters that are useless especially if you are a pet owner a pleated filter will trap your pet hairs and last about two months. Also wipe down the intake grill while you are at it!

    Frank inzerillo -

    I have been in the industry for over 50 years and I absolutely loved it

    Frank inzerillo -

  2. SxMXyGyWVHdON1mA

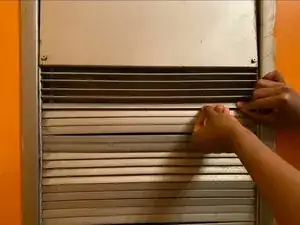

    • Close off each adjustable damper.

    • This will ensure that the register grille does not get in the way later on during the filter removal.

  3. WXMQ1kMUEYvSGsg5
    WXMQ1kMUEYvSGsg5
    RjfcxkMCoAn3T4fj

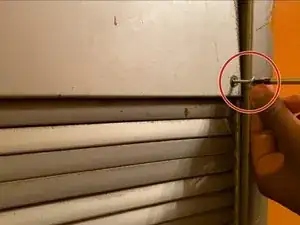

    • Remove the screws from fan coil using a Phillips #1 screwdriver.

    • Open up the fan coil.

  4. gnLuJfpPCMcCaCLT

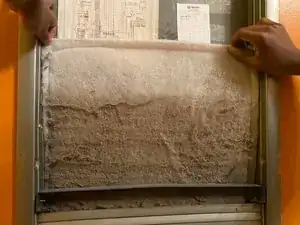

    • Use your hands to remove the filter from the fan coil.

  5. HpJ4fI5DCvGbX6so
    HpJ4fI5DCvGbX6so
    mU5Bw5SZJWFguhpn

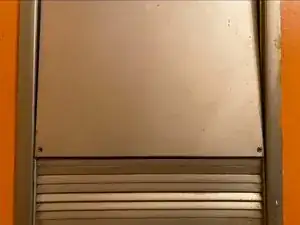

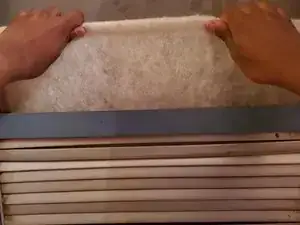

    • Replace the fan coil filter.

    • Make sure to close the fan coil door after the filter replacement is completed.

  6. QeGHnCXBSdMOF3pg
    QeGHnCXBSdMOF3pg
    I4xNX3lO4YRlXMGm

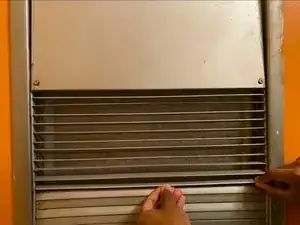

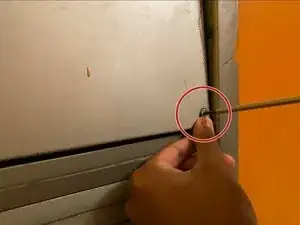

    • Screw in closed the fan coil door.

    • Open up each of the adjustable dampers for better air flow.

Conclusion

Following these steps, you will be able to replace the filter in your fan coil system.
