Felco Gartenschere - Pruners Disassembly

Written By: VauWeh
  • Comments: 2
Felco Gartenschere - Pruners Disassembly

Difficulty

Very easy

Steps

5

Time Required

15 minutes

Introduction

These scissors require a little maintenance. The blade must be sharpened, rust marks removed and the joint lubricated.

  1. wREUhHmuLCKT2mWn

    • There are several types - e.g. also for left-handers, here a Felco Nr 4 is shown.

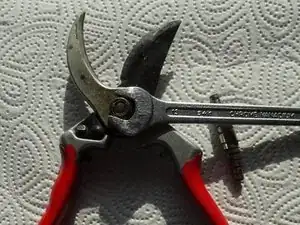

  2. TOcHWIxdGl2MSF4A

    • First, the upper nut SW 13 is released, then the scissors is turned over.

    • The spring can be easily removed.

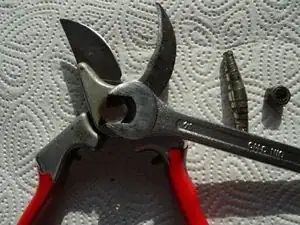

  3. DhuWLTuqmtFZkU2V

    • Now the hinge screw can be unscrewed. Here SW 14 is used Next to it lies the spring and the lock nut.

    • Now the scissors can be completely disassembled.

    • The blade is pinned with three bolts in the handle half and usually dissolves easily.

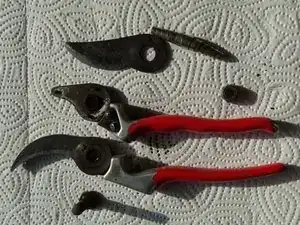

  4. 1nEHVH5RHUYAoZ61

    • The scissors are disassembled. We see the pivot nut, the hinge screw, the spring, the two handles and the blade.

    • The blade is ground on one side. Sharpen the beveled edge with about 15 degrees, only deburr the straight edge with a maximum of 5 degrees.

    • The parts should be free from rust and freshly oiled or greased.

Conclusion

Repeat the steps in order to reassemble your device.

Author

VauWeh

Member since: 19/10/15

167117 Reputation

2 comments

Does the fixed bolt need Locktight or thread locker applied to its thread to stop it coming loose in operation?

Nicholas Little -

I did not use a thread locker and ist works until today.

VauWeh -
