Introduction

Is your headphone jack not working or possibly damaged? Well you’re in luck, this guide will show you the step-by-step instructions on how to replace your headphone jack.

  1. 2gN3ZT1LcTcDtYKb
    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS
    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq
    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw
    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh
    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB
    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  7. VakGTMiHnkGUFgXF
    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

  8. QwDEjM225WJNuIMc
    • Pull up the cord that connects the battery to the motherboard

  9. 6ZmmEIHPJkXsYQJc
    • Remove seven 1mm screws using a PH00 screwdriver.

  10. s1kkvuViCVv3HFsH
    • Disconnect upper peripheral ribbons from motherboard.

    • Disconnect left peripheral ribbon from motherboard.

  11. LDiYX1HN1eDmUMHH
    • Gently lift the battery from the casing.

  12. n1GuCM5xtZdabdei
    • Remove the two 0.2 mm screws with a PH00 Screwdriver.

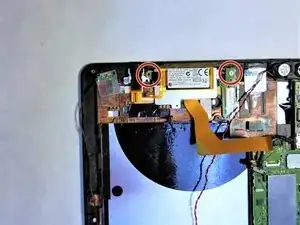

  13. SMArUTcBslQUiGhG
    • Remove the two 0.2 mm screws with a PH00 screwdriver

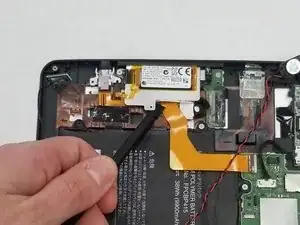

  14. QjNKRHUwIMQl2Ucd
    • Now use an ESD-safe spudger to gently pry up the silver piece and flip it over. Be sure not to remove this piece completely!

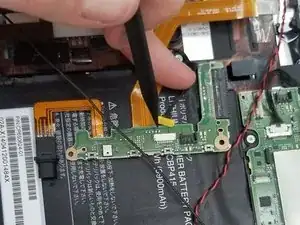

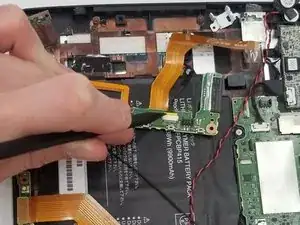

  15. smF1ZTfXuAZgjBsi
    smF1ZTfXuAZgjBsi
    Kd4mEgQwAAIJYKOl
    • Use an ESD-safe spudger to gently push the yellow piece out from the white cradle.

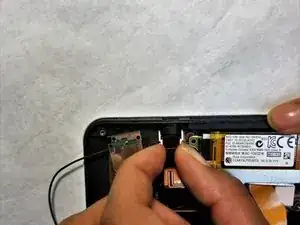

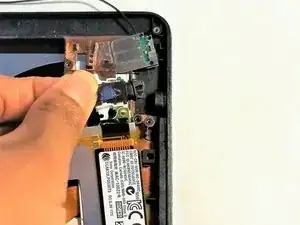

  16. wD1jYHqKdMwtSpTs
    wD1jYHqKdMwtSpTs
    oWYDFMCSERlRjay1
    • When removing the headphone jack, simply use your fingers to pull out the white and black piece altogether.

Conclusion

To reassemble your device, follow these instructions in reverse order.
