Fujitsu Lifebook Stylistic Q584 Speakers Replacement

Written By: Connor Stanton
  • Comments: 1
Fujitsu Lifebook Stylistic Q584 Speakers Replacement

Difficulty

Moderate

Steps

10

Time Required

6 minutes

Introduction

If your speakers are damaged or not working this guide will show you step-by-step instructions on how to replace your speakers

  1. 2gN3ZT1LcTcDtYKb

    • Remove the white sticker covering the screws (if applicable).

    • Use the PH1 screwdriver to remove the four 2 mm screws from the the backside of the device.

  2. XqGwyZCPSvPIuTdS

    • Insert the plastic opening tool along the seam of the back case.

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  3. qfg4IOgJlri6pRnq

    • Carefully lift the back case and remove the smartcard ribbon from the motherboard.

  4. YbmKFvFqTfCMniNw

    • Remove the ten 3mm screws with a PH00 screwdriver from the shield.

  5. 1qTxHcIZc5FZ5gRh

    • Remove the grey docking station port cover.

  6. FsCMAvueYsT1yIPB

    • Gently slide the plastic opening tool along the entire seam popping the clips free.

  7. VakGTMiHnkGUFgXF

    • Lift the shield away from the device and remove the fingerprint scanner's ribbon from the motherboard.

  8. 5rcPUPx33jiSrSeY

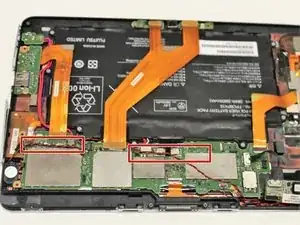

    • Pull up the cord that connects the battery to the motherboard

  9. rxniQXqUrlHmEDUb
    rxniQXqUrlHmEDUb
    3Oytcgs2nIUnCm6t

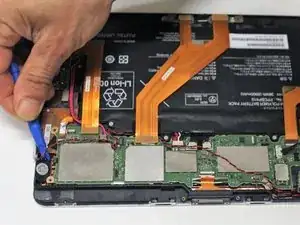

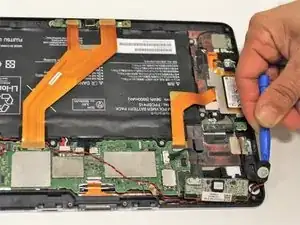

    • Use the narrow plastic opening tool to pry the speakers from the casing.

  10. XqLxFREH3WOwQSUM

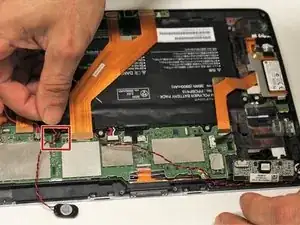

    • Unplug the speaker wires from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
