GameSir T4 Pro Action Buttons Replacement

Written By: Madison Puckett
  • Comments: 0
GameSir T4 Pro Action Buttons Replacement

Difficulty

Moderate

Steps

8

Time Required

15 minutes

Introduction

This guide helps you replace the actions buttons in your GameSir Pro T4 controller. This guide can also be used to simply remove and clean sticking or unresponsive action buttons.

Sticky or unresponsive GameSir Pro T4 buttons are often the result of the accumulation of dirt or grime in the button's crevices.

  1. EKYDuOuhGH3IVs2m

    • Using the Phillips 1 screwdriver, gently turn the screw to the left (repeat this step until all four screws are taken out).

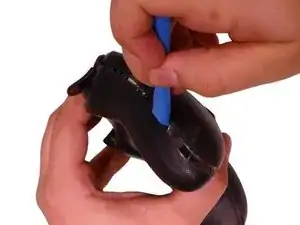

  2. Z253w1hw1YAOjJxm

    • Use your iFixit opening tool to break the seam of the back of your controller.

    • Be careful when pulling apart, as the charging port wires are connected to both sides of the controller.

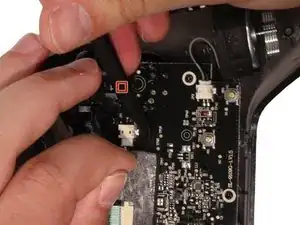

  3. jUg1fYhBZi5jeRCv

    • Using the plastic spudger, wiggle the connection out of place.

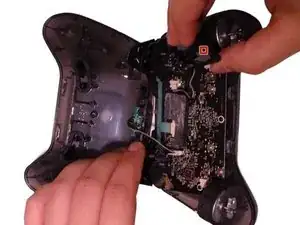

  4. eFTIEf6Ls2hFPq6f

    • Apply a slow, but consistent pull to the old 600 maH battery.

    • Attach new battery onto the pad

  5. ECKxEXQ4p4EdGgNl
    ECKxEXQ4p4EdGgNl

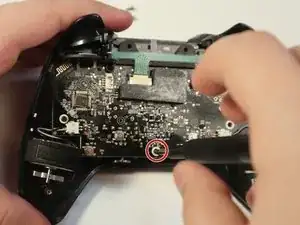

    pBQuGGlOQOh3VPRt

    • Remove the three 5mm screws on the motherboard.

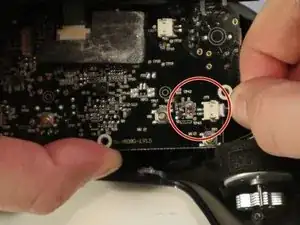

  6. HYMSQQMK5lwPMEM3

    • Disconnect all white connectors from the motherboard.

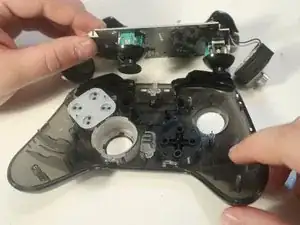

  7. DlIYDZlKnuV2EC1i

    • Carefully pull the motherboard away to reveal the front panel.

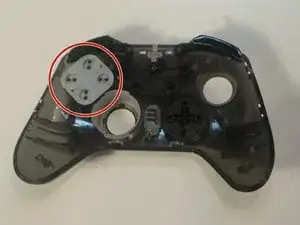

  8. BBFLmFF4IFQ1dSpE
    BBFLmFF4IFQ1dSpE

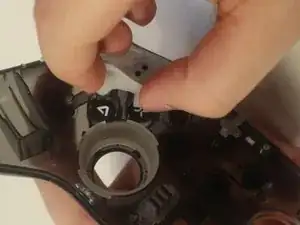

    aJsuVRniWcUlYBIN

    • Remove the white rubber panel to get access to the buttons.

    • Put a small dab of isopropyl alcohol on a cotton swab, and clean around the area of your sticky button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
