GameSir T4 Pro Charging Port Replacement

Written By: Madison Puckett
  • Comments: 1
GameSir T4 Pro Charging Port Replacement

Difficulty

Moderate

Steps

7

Time Required

6 minutes

Introduction

Use this guide to replace the charging port of your gameSit T4 Pro with a compatible replacement.

Only replace the charging port of your gameSit T4 Pro if the controller is not registering that it is plugged in and you have ruled out the possibility that the charging cord or power supply are the problem.

  1. EKYDuOuhGH3IVs2m

    • Using the Phillips 1 screwdriver, gently turn the screw to the left (repeat this step until all four screws are taken out).

  2. Z253w1hw1YAOjJxm

    • Use your iFixit opening tool to break the seam of the back of your controller.

    • Be careful when pulling apart, as the charging port wires are connected to both sides of the controller.

  3. jUg1fYhBZi5jeRCv

    • Using the plastic spudger, wiggle the connection out of place.

  4. eFTIEf6Ls2hFPq6f

    • Apply a slow, but consistent pull to the old 600 maH battery.

    • Attach new battery onto the pad

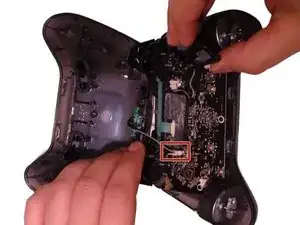

  5. jsrhKGirdHrm2xvx
    jsrhKGirdHrm2xvx
    SVTJxdTdxajxIQhX

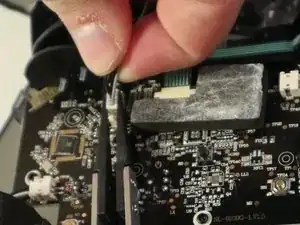

    • Use the needle nose pliers to remove the plastic connection from the motherboard.

    • You may hold the wires for stability, but do not tug on the wires.

  6. XrHnHg1bDIWaRGBo
    XrHnHg1bDIWaRGBo
    m42AaUUQMRSd3VIH

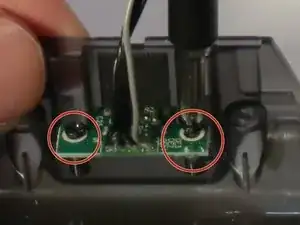

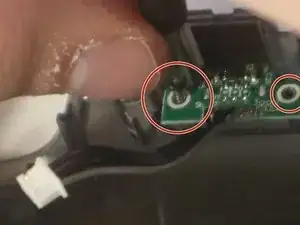

    • Remove the two 5mm screws on the charging port and take out the old charging port.

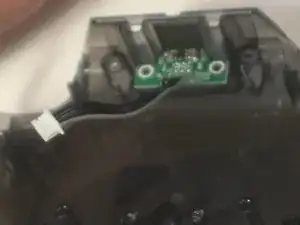

  7. pQVnxFGAsXrxmcvU
    pQVnxFGAsXrxmcvU
    QgqPZnsIt12NVwj6

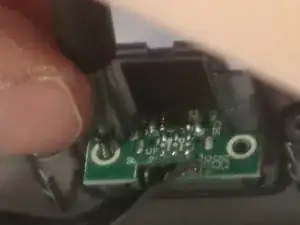

    • Put your new compatible charging port in place.

    • Make sure to screw in the 5mm screws into your new charing port

    Hello can you suggest compatible charging port?

    Umar Mukhtar -

Conclusion

To reassemble your device, follow these instructions in reverse order.
