GameSir T4 Pro Joystick Replacement

Difficulty

Moderate

Steps

8

Time Required

4 - 5 minutes

Introduction

If your joystick has broken over time, this guide will help you replace these parts. This repair can take anywhere from 4 to 5 minutes and only requires a Phillips #1 screwdriver and the iFixit opening tool. A good replacement for this device is the Dual Shock 4 joystick.

  1. EKYDuOuhGH3IVs2m

    • Using the Phillips 1 screwdriver, gently turn the screw to the left (repeat this step until all four screws are taken out).

  2. Z253w1hw1YAOjJxm

    • Use your iFixit opening tool to break the seam of the back of your controller.

    • Be careful when pulling apart, as the charging port wires are connected to both sides of the controller.

  3. jUg1fYhBZi5jeRCv

    • Using the plastic spudger, wiggle the connection out of place.

  4. eFTIEf6Ls2hFPq6f

    • Apply a slow, but consistent pull to the old 600 maH battery.

    • Attach new battery onto the pad

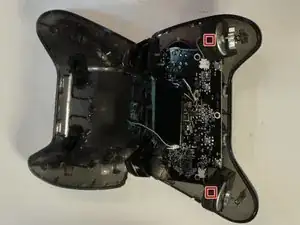

  5. qpDu3JuiaVfWMrAA
    qpDu3JuiaVfWMrAA

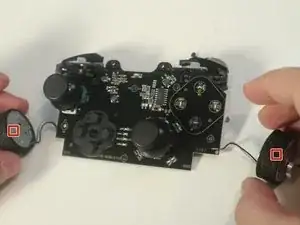

    54DHAB1h2hvTiXOF

    • Disconnect the rumblers from the motherboard

    • Be careful not to pull the wires while disconnecting rumbler

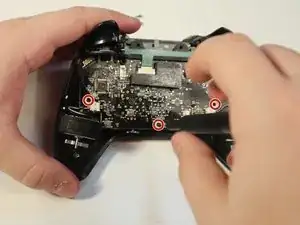

  6. fPiPeitCEAl4ZumK

    • Using the screwdriver, remove the 5 mm screws from the motherboard

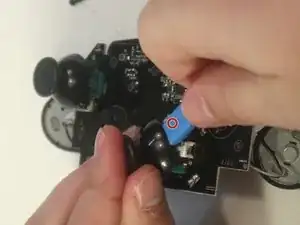

  7. 1uZOT2UjVwqgbVWu
    1uZOT2UjVwqgbVWu

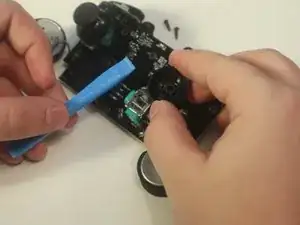

    IbRDvgdp2jYcBaWU

    • Using the wedge tool, pop the joystick out

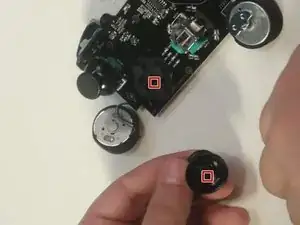

  8. BdbUFHSaAxZOytmu
    BdbUFHSaAxZOytmu

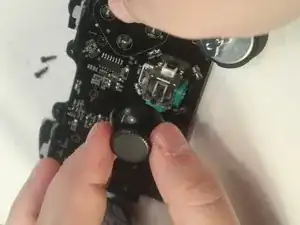

    dxRAlZfbDW2UTVBc

    • Make sure the square of the joystick matches the square of the pad and pop it in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
