HP 24-G014 disassembly

Written By: Hayden

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

This Guide will show you how to get inside of the HP 24-G014 All in one Desktop

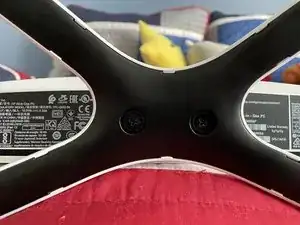

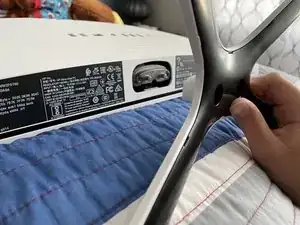

Flipping the device over here we see two Philips screws holding the stand to the computer.

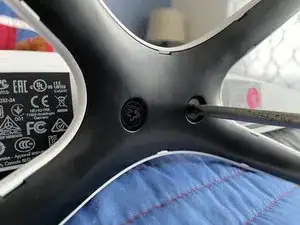

Using a basic screw driver you will most likely find in your garage or a junk drawer we can remove these two screws.

By the way at the time I was working on the machine on my bed to prevent any damage to the display.

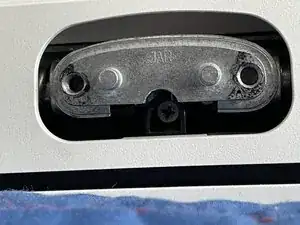

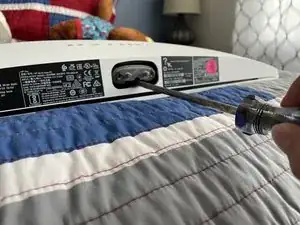

Inside the stand slot there is an extra screw using the same screw driver remove the screw.

After the screw in the stand slot is removed there are clips holding the display to the body of the system.

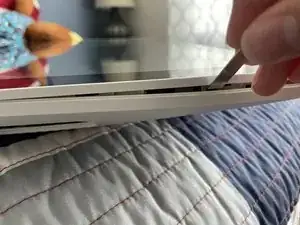

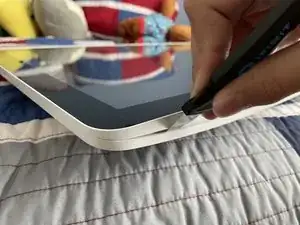

Using a prying tool such as an iFixit metal spudger or Jimmy tool you can lift the display from the body.
Don’t worry about accidentally striking the components as they are pretty far away except for the bottom since the speakers are there.
One last thing before going to the other step. I highly don’t recommend using something such as a big flat head screw driver, butter knife, or sharp knifes. But if you must you can use them.

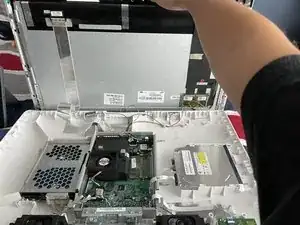

After unclipping the display from the body be very gentle! As there are wires and a display connector attached to the screen.
To prevent damage you should open the system from bottom to top (where the HP logo is).

Conclusion

That’s it you’re done!

To reassemble your device, follow these instructions in reverse order.

I am not responsible for any damages done to your device if you break it during repair.
