Introduction
Parts
-
-

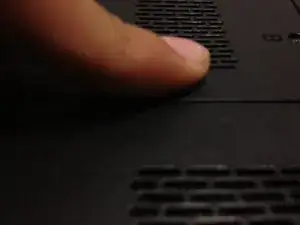

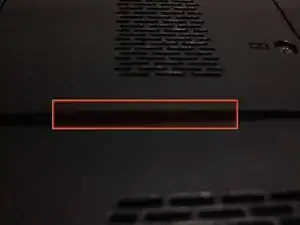

First, you should to remove the battery to avoid electric shocks
-

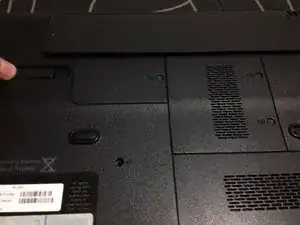

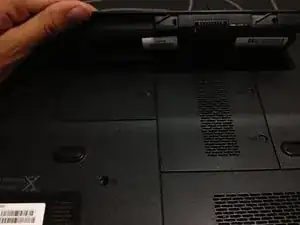

Slide and unlock the battery, then, lift it
-
-
-

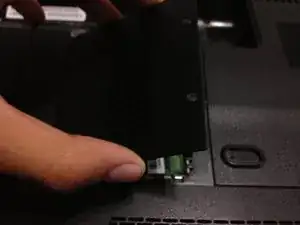

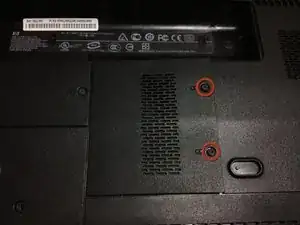

Remove the two screws with a not too large screwdriver
-

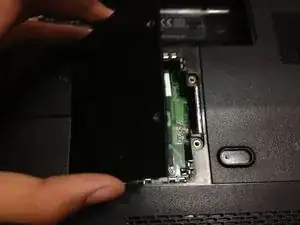

Now lift the cover, the screws are part of the cover
-
-
-

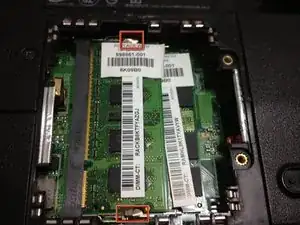

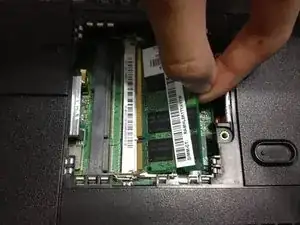

Push the little aluminum locks at the top and the bottom of the ram
-

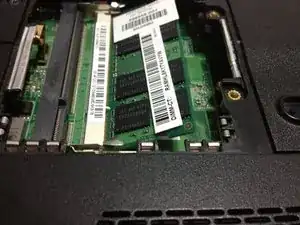

The memory will lift, then pull it
-
Make this with the another RAM slot
-
-
-

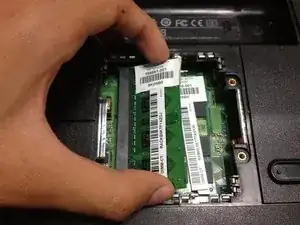

The new RAM memory should to be insert in a 45 degrees angle
-

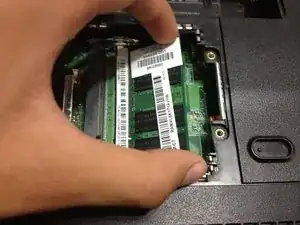

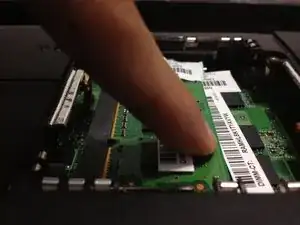

Then, push it and the memory will lock by itself
-
Make this with the second memory
-
-
-

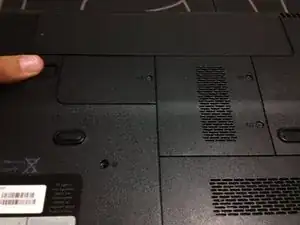

Insert the cover from right to left, then, screw it
-
If cover is lifted, press it softly and secure it
-
