Introduction

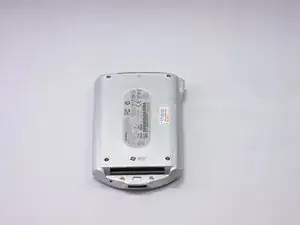

  1. iX2RtFVDfGOSsp3u
    • To begin the disassembly of the device, place it on a flat surface with the screen facing down.

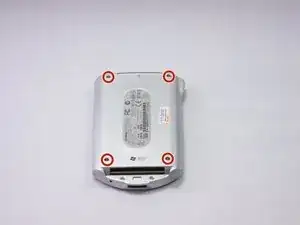

  2. 4StQoLYXPma5DLyq
    • Remove the four screws found on the back cover of the device.

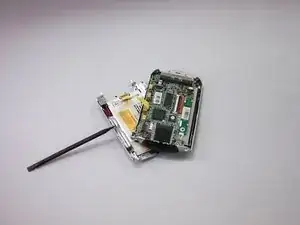

  3. JOARoOcFIdE2JQ6Y
    • Carefully remove the back cover using a plastic opening tool against the grooves along the sides of the iPAQ.

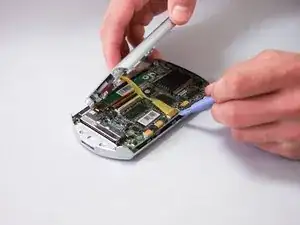

  4. t6f1MhUCJRrwwXD5
    • At this point, a yellow ribbon will be connecting both the front and back panels of the device. Carefully use the plastic opening tool to detach the ribbon from the connector pins.

  5. AJb1bgO11iDUBYlB

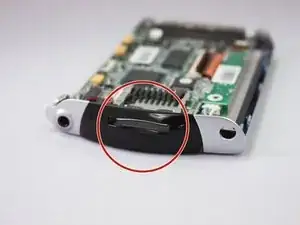

    • Remove SD card on top of device by pushing and then releasing.

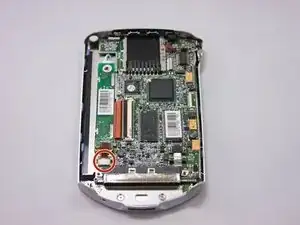

  6. AHEXGdwXM2JsUf1a
    • Remove ribbon cable connected to display logic board by pulling plastic clips on both sides towards top of device.

    • Use plastic opening tool to carefully pull brown ribbon cable from connector.

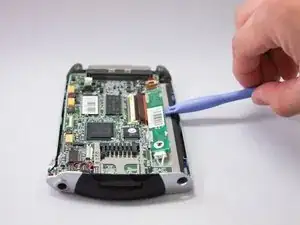

  7. gGKOX2PVMWKuffIC
    gGKOX2PVMWKuffIC

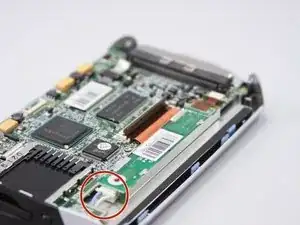

    ppLXh5eRv5ZBtwWZ
    • Use plastic opening tool to carefully remove display logic board from housing.

    • Unplug connector from the opposite end of the display logic board.

    • Completely remove display logic board.

  8. VbJMpiLtNykTPZX4
    • Flip up black plastic clip on large ribbon cable connector located towards center of mother board.

    • Use plastic opening tool to carefully remove ribbon cable from connector.

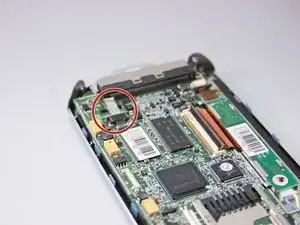

  9. WSD6FYEOgWlyXkMq
    • Locate clear/grey ribbon cable in bottom corner of device.

    • Gently pry cable out of connector with plastic pry tool.

    • Use hands or tweezers to remove if necessary.

  10. 3DdLKKu5LylqWhUY
    • Use hands to gently unplug speaker and microphone connectors from mother board.

  11. Km46qCH2bxg6WxPX
    • Make sure no more connections exist between mother board and housing.

    • Remove three screws anchoring mother board.

    • Use hands/plastic opening tool to carefully lift mother board out of housing.

    • Place the motherboard to the side.

  12. rgPQUZoJQ2NjJBuk
    • Locate 4 blue plastic clips surrounding square screen housing.

    • Pry back clips with hands.

    • Use plastic opening tool to remove entire screen assembly from housing.

    • Now that the device is completely taken apart, use a can of compressed air to clean each component of the device.

    • Be sure to put emphasis on spraying air behind the screen, as this is a common buildup spot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
