Handspring Visor Edge Screen Replacement

Written By: Christian Valoria
  • Comments: 0
Handspring Visor Edge Screen Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

In this guide, you will learn how to replace the screen on the Handspring Visor Edge PDA. You will need tweezers, a Phillips screwdriver, and a spudger to get under the screen.

  1. T4sNMKrEsPxnlwcE
    T4sNMKrEsPxnlwcE
    3BWFTbYKDZYotF44

    • Open the flip cover so that the tab on the back is easy to access.

    • Place the Visor Edge face down.

    • Identify the tab connecting the flip cover to the PDA located at the top of the backside.

    • Gently push the tab forward.

    • Do not pull on the flip cover in an attempt to remove it from the PDA.

  2. tEKoGQZsFrcuCTwE

    • Remove the six 4.1 mm Phillips screws from the back plate using the #00 Phillips Scewdriver.

  3. nyfOtUGYbEddVfjC

    • Remove the gray back plate from the PDA.

  4. tKD1NBSQmbcEgDmO
    tKD1NBSQmbcEgDmO
    bQkWKp1RSmP2cVkK

    • Remove the four 2.6 mm Philips screws that are on the sides of the frame.

    • Remove the 3.9 mm Philips screw holding the stylus holster to the frame.

  5. eVBHWGZ1GcntvSyw
    eVBHWGZ1GcntvSyw
    aElQdqUNMHMa2VVe

    • Remove the four 2.6 mm Philips screws on the top and bottom of the frame.

  6. BjNOalaltV2Ra1fy

    • Remove the white frame from the back of the PDA.

    • The frame may get stuck on the corners so be very gentle when working the corners off.

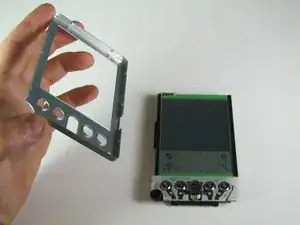

  7. 56LgIseXSEGVJScu

    • Place the PDA front face up.

    • Gently pull off the front cover.

  8. 1qAGZXyExydPCeYb
    1qAGZXyExydPCeYb
    GLDOHuWYoJlkhPgg

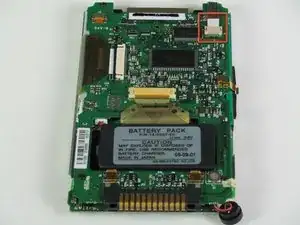

    • Flip over the PDA.

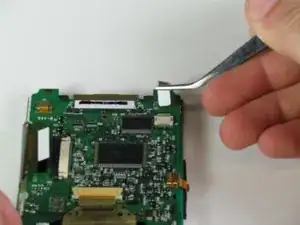

    • Use the tweezers to remove the ribbon cable attaching the screen to the circuit board.

  9. FVBhBjMXFFRAlL2A
    FVBhBjMXFFRAlL2A
    AYJ6sqmGZFxL4cRL

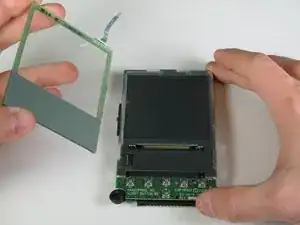

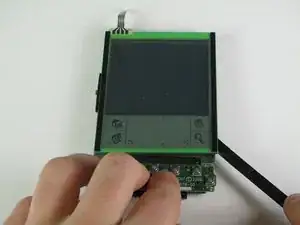

    • Wedge the spudger in between the glass and the metal frame.

    • Slide the spudger down the length of the screen to detach from the frame.

    • With your hands, pry the screen up from the detached side. The screen will pop off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
