Harman Kardon Onyx Studio 2 Speakers Replacement

Written By: Alexandra Achtenberg
  • Comments: 13
Harman Kardon Onyx Studio 2 Speakers Replacement

Difficulty

Moderate

Steps

12

Time Required

25 - 35 minutes

Introduction

If your speakers are busted or faulty, this guide will help you in replacing one or both of the speakers in your Onyx Studio 2.

  1. dBMtxPy1K1rUnFpu
    dBMtxPy1K1rUnFpu
    iQOTA3V6DRt2d21M
    dQ2kJq1EW24lJYMB

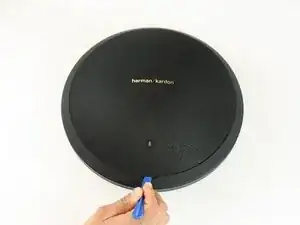

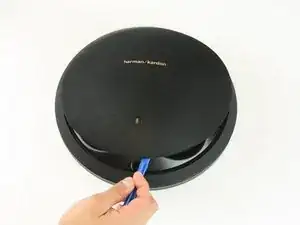

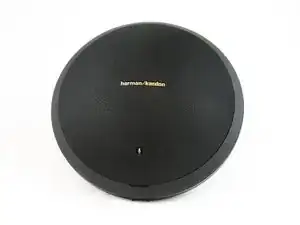

    • Using a plastic opening tool, pry off the front grill by wedging it in the notch on the front of the device.

    Where can I find a new front panel for my speaker

    consomme69 -

    If I take this off can I put it back on

    Burger King -

  2. o5SWK6TwGvJXXZkQ
    o5SWK6TwGvJXXZkQ
    jqcCAC2kkM2JaaRl

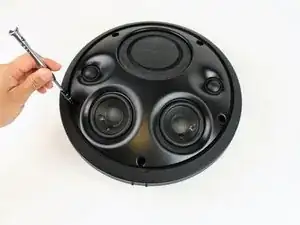

    • Remove the five 14.4 mm T10 Torx screws.

    There are NO torxscrews. You have to pull out the rubber grille grips that are inside the screw holes FIRST, then use a regular sized Phillips head screwdriver to remove the cover. No Torxscrewdiver needed. I found this out after I had already purchased one from you guys.

    phillip columbus -

    Mi bocina no tiene los 5 tornillos a la vista,tiene las cavidades ciegas, como lo abro???

    Eduardo Heine -

  3. aLaClpNCSQVOuCfs

    • Gently pull the front apart from the back.

  4. 1SWuvDl2qU1UaEUc
    1SWuvDl2qU1UaEUc
    yCr1XiiAOCKacJsD

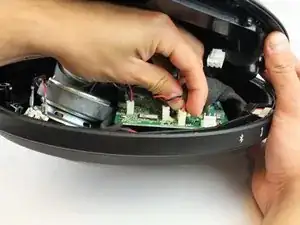

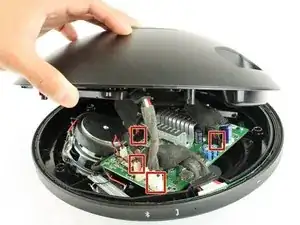

    • Remove the four wires connecting the front and back panels.

    • Pinch the connector tab and pull gently upwards.

    • Repeat for the other three connectors.

    Please can I get a replacement of my panel to the phone

    Chinedu Ogunedo -

  5. MxWnQFehXaDmTplm

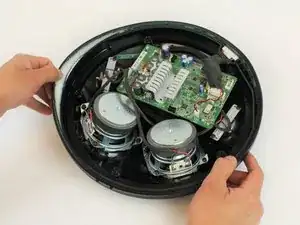

    • Pull the silicone button band off of the outer edge of the speaker.

  6. LPmilUqrJAlOHlTy
    LPmilUqrJAlOHlTy
    i3vgKRRIW6feDDuw

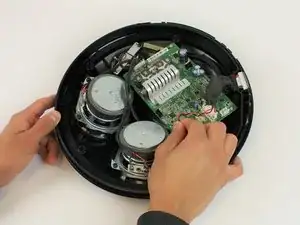

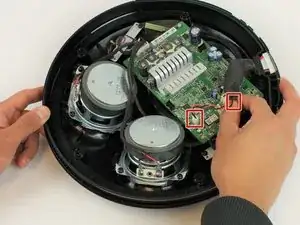

    • Disconnect the two pressure connections from the circuit board.

  7. ZEkMh32Usjwbdy5U
    ZEkMh32Usjwbdy5U
    nusK3sFgWBOTkjkG

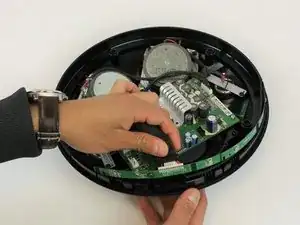

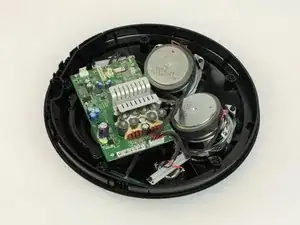

    • Gently remove the control board band by placing fingers in contact with it through the button openings.

    • Work from the outer edges in so as not to bend the band.

    From where to buy Control panel

    ali -

    From where to buy this control panel

    ali -

  8. mYOLRBFQcPCPT1oE
    mYOLRBFQcPCPT1oE
    gT4EIp3YMS2Q1Bi1

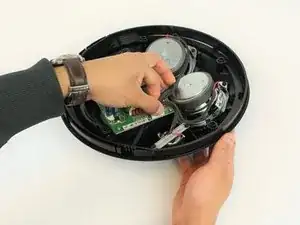

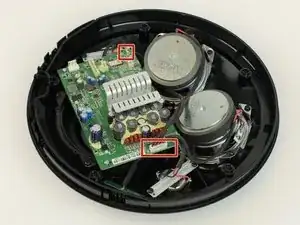

    • Disconnect the remaining connectors from the circuit board.

    • Disconnect the Bluetooth antenna.

  9. 6KYrct1kDkhK5dWw
    6KYrct1kDkhK5dWw
    QcCIKnfkO4dULMNm

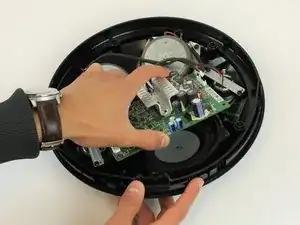

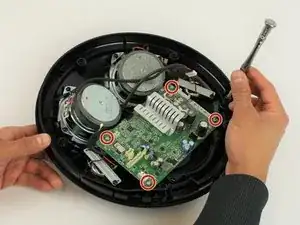

    • Remove the four 10 mm T10 Torx screws.

    • Pull the circuit board out of the device as it is now free.

    Bisa di kirim

    Mala Ganni -

    Bisa pesan 1

    Mala Ganni -

    I own two of these and the both shut down on their own.. where do I buy the replacement boards from?

    Darren Vincent -

  10. 4GjCkyFRCqGkpgvi

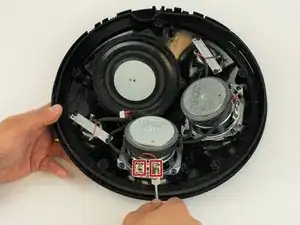

    • Using the metal spudger, gently pry off the two red and black connectors.

  11. hpWYTC5ZTdaeollJ
    hpWYTC5ZTdaeollJ
    XDId5ahpKiYrqjyC

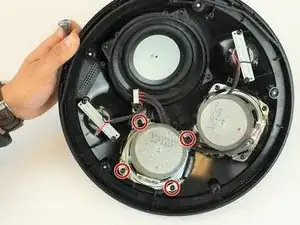

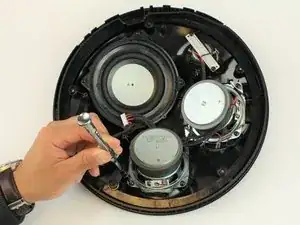

    • Remove the four 14.3 mm T10 Torx screws.

  12. BCW31SU2R2HoRl2K

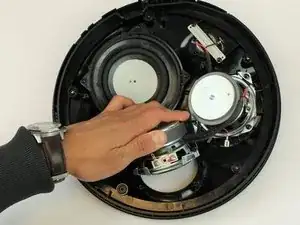

    • Pull out the speaker, and if necessary follow these steps to replace the other identical speaker.

    Please attach a link where best to buy parts/speakers for this model. I found your step by step instructions very well detailed except for the source of parts

    Bernard Rocha -

Conclusion

To reassemble your device, follow these instructions in reverse order.
