Introduction
This guide will show you how to replace the oil in your vehicle using an oil extractor/pump. The vehicle being serviced in this guide is an Audi S5; the location of your filter and dipstick may differ.
Please note this method only works if the oil filter is located in the engine bay. The filter may also be located underneath the engine, next to the oil pan. Gloves are recommended, but not required. Avoid getting engine oil in the face or eyes. If this occurs, rinse your eyes immediately.
Before beginning this guide, turn the car's ignition off, place the car in park, and engage the parking brake.
-
-

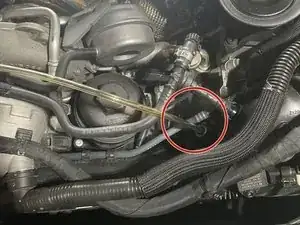

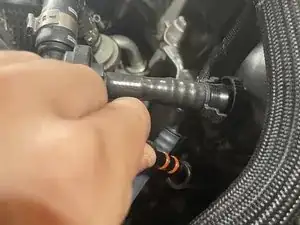

Insert the pump tube into the fill hole/dipstick hole. Continue to feed until the tube hits the bottom.
-

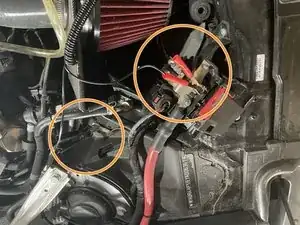

Attach positive and negative alligator clips onto the battery terminal
-

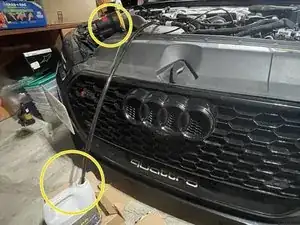

Start the suction motor by flipping the "On" switch and start collecting the used oil into a container.
-
-
-

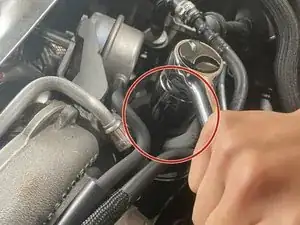

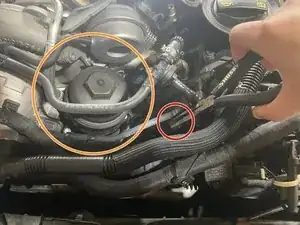

Break the oil filter loose with a ratchet or filter wrench.
-

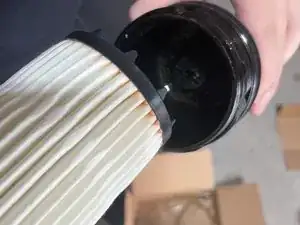

If the filter has a housing, remove the filter assembly and replace the filter inside.
-

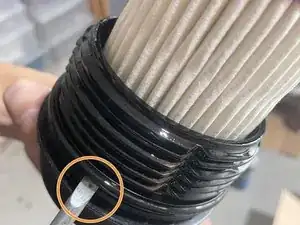

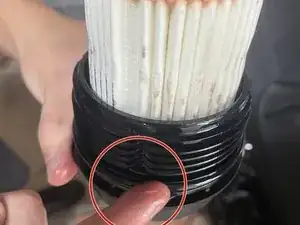

Replace the O-ring. (A screwdriver may make this process easier.) Make sure the O-ring goes back into the same slot as before and lubricate it with some oil.
-
-
-
After lubrication, hand tighten the filter into the slot.
-

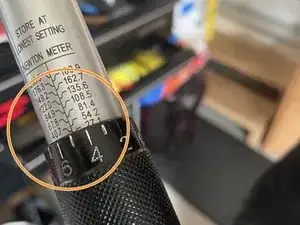

Using a torque wrench, torque the filter to manufacturer's specification
-
-
-

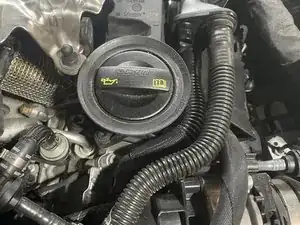

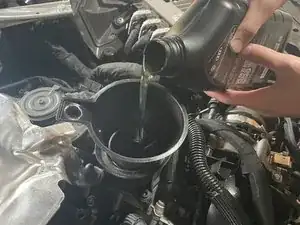

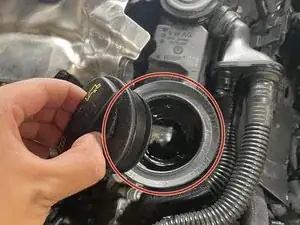

Unscrew the oil filler cap and add oil to manufacturer’s specification. Oil capacity can usually be found in vehicle user manuals. If necessary, use a funnel to limit splash.
-
Start the vehicle, check for leaks, and ensure the oil pressure is within normal range if a gauge is available.
