How To Install Universal Fit LED Daytime Running Lights

Written By: Eric Wu
  • Comments: 11
How To Install Universal Fit LED Daytime Running Lights

Difficulty

Moderate

Steps

7

Time Required

1 hour

Introduction

LED daytime running lights are a great add-on to any vehicle to increase light output for style and safety. Some LED daytime lamps are vehicle specific, but this set of Philips Style LED DRL is universal fit for more cars and SUVs.

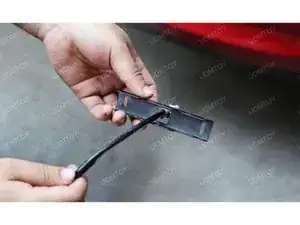

  1. TPIFTt26aNifjj2Y

    • Insert the wire into the bracket.

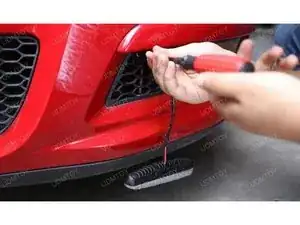

  2. Db3ZikPFBYrnCbbr

    • Mount the bracket. Since this is universal fit, you can mount it anywhere you'd like.

  3. 2jKqFIhTolFlYt6r

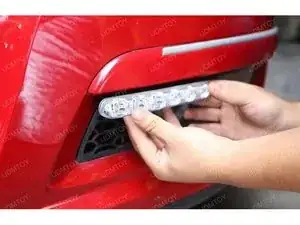

    • After mounting the bracket, you can lock the LED daytime running light on the bracket.

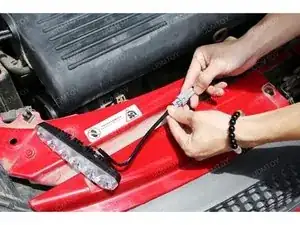

  4. YEtHwEoCtVXVOPLq
    YEtHwEoCtVXVOPLq
    XcpoqwmIVrn5Lapn

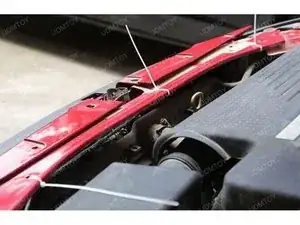

    • Connect the wires and route the wires up and near the fuse box.

    • Use zip ties to tie the wire along the bumper.

  5. bKKqqeWFu3TKBBrw
    bKKqqeWFu3TKBBrw
    JeDfFswnOHCEapWJ

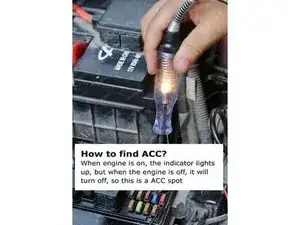

    • Find the ACC in your fuse box and tap the red wire there.

    • You can find the ACC location using an electronic meter by clamping the black wire to the battery negative or ground.

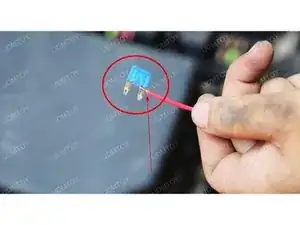

    • When you find ACC, tap the red wires to the blade of the fuse and insert it back.

  6. vAfHlt5WKEyLpmgk

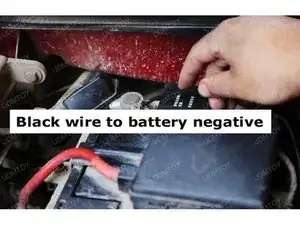

    • Tap the black wire to battery negative.

  7. 2ytQSCLKJpuycOQO
    2ytQSCLKJpuycOQO
    RCkmNnbhoowEYwUF
    PC2pCgDLrWgrfPl3

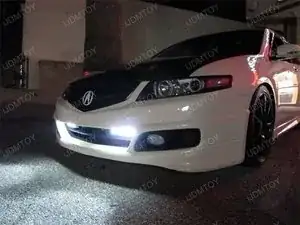

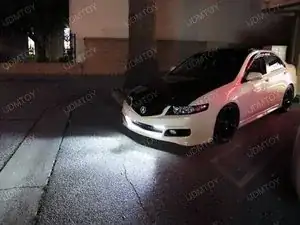

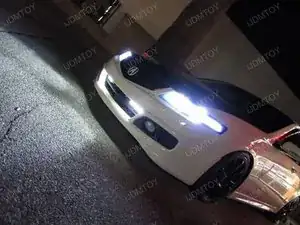

    • Test to make sure everything works and enjoy your new universal fit Philips Style LED Daytime Running Lights.

Conclusion

As you can see, installation isn't complicated and if you follow the directions accordingly, you'll be on your way to new LED daytime running lights in no time.
