Introduction

If your Weber Genesis II grill is not heating up and cooking your food properly, the problem is most likely the burners, the piece of the grill where gas is emitted. Use this guide in order to replace the burners and return your grill to proper working order.

Before beginning this guide, make sure that your grill is completely turned off and that you have room to take apart the grill, as this guide could be difficult in a cramped space.

In step 5, you will be removing the ignition device from the burner using a metal wedge. The ignition device is connected to the grill by a wire, so take special care to not strip or damage the wire while removing the device.

  1. Xe6fFQVCSGoKCLn6
    Xe6fFQVCSGoKCLn6
    K5FXhRnKRpBkAFjR
    4wpLYfYqtUqxkTi1

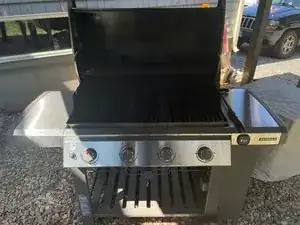

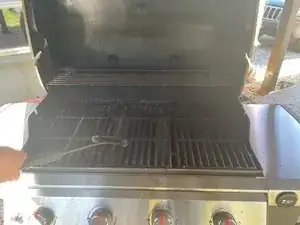

    • This is the Weber Genesis II grill. Before replacement of the burner, we will start by cleaning the grates with a grill brush in order to be clean and safe.

    • Make sure that the grill is completely turned off so there is no chance of accidental burn.

  2. I6TD2HRpprNKYUul
    I6TD2HRpprNKYUul
    CHCKWNSWvSUj2XC2
    usbIQsInVWicxNYj

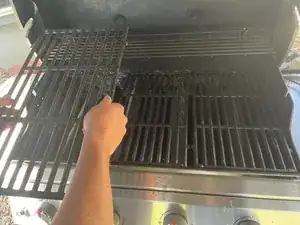

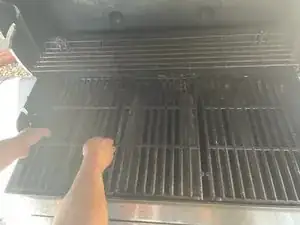

    • Remove the grates using your hands.

    • Grab on each side of the grill grate with your hands and lift straight upwards.

    • Set the removed grate off to the side of the grill.

    • Repeat this procedure for all three of the grates on top of the grill.

  3. JApSBMqhJLY2VwMX
    JApSBMqhJLY2VwMX
    SVVZWJHwAy3KYmbo

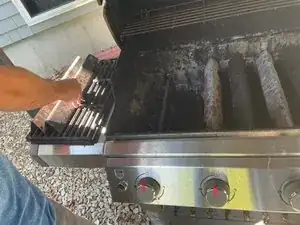

    K2wwGerwH5eX6SIv

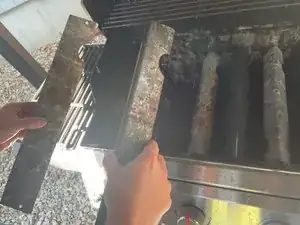

    • Remove the heat deflector plates from on top of the burners.

    • Grab each deflector plate and pull straight upwards as with the grates.

    • Place the removed heat deflector plates off to the side of the grill.

    • Repeat this procedure for all heat deflector plates until each burner is exposed.

    • Only half of the heat deflectors plates will have burners underneath them. So do not be alarmed when not all plates have a burner.

  4. pXqgWBbn23MPfJVR
    pXqgWBbn23MPfJVR
    nj1COeC2pWH3gHxK

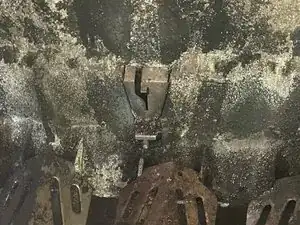

    CNsnXTFWHJVUA1Kh

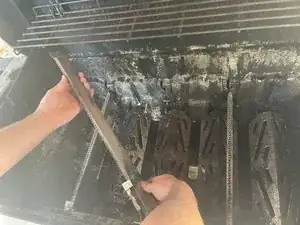

    • Remove the burner from its slot in the back of the grill.

    • With both hands, carefully pull the burner upwards and slightly to the left in order to pull it out of its slot.

    • The burners can become stuck and require a little extra force to pull out, but do not pull too hard and hit the top of the grill or yourself.

    • If replacing all burners, repeat this procedure to remove all burners from their slots.

  5. WiicF5sKD1PdTQqG
    WiicF5sKD1PdTQqG
    Jaa5sOUlrHPOFPuD

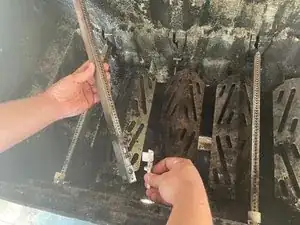

    XDvqtHRXyTKQ14PA

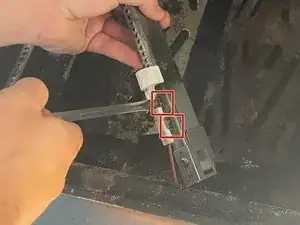

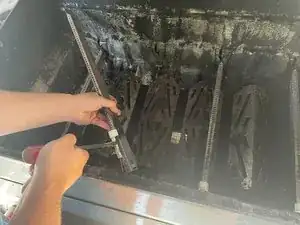

    • Detach the burner from the ignition device.

    • With a small wedge, such as a flat-head screwdriver, unclip the white connector from the burner.

    • With the ignition device removed, you are now all set to replace the burner with a new one.

Conclusion

To reassemble your device, follow these instructions in reverse order.
