Introduction
Follow this guide if you are unsure how to apply custom-cut adhesive to your device. The adhesive could be for a screen, back cover, battery, etc. Read through the entire guide before applying any adhesives.
If the device’s repair guide has specific adhesive instructions, those instructions precede this guide.
For Samsung Galaxy S phones, follow this guide instead.
For iPhones, follow this guide instead.
For iPads, follow this guide instead.
If you are using general Tesa adhesives, follow this guide instead.
-
-

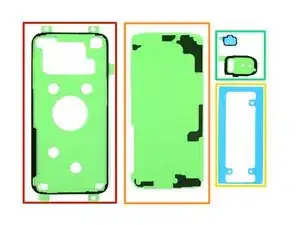

Look over your pre-cut adhesive strips and figure out what they are used for.
-
Screen or back cover adhesives—usually the shape of the device
-
Back cover support adhesives—these will match the contours of components pressed against the back cover
-
Battery adhesives—normally a rectangular perimeter roughly the shape of the phone's battery
-
Component adhesives—they will be contoured to match the various components such as cameras and fingerprint sensors they are designed for
-
-
-

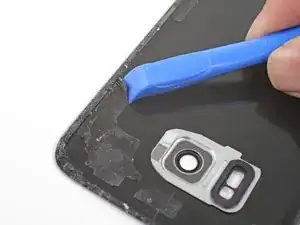

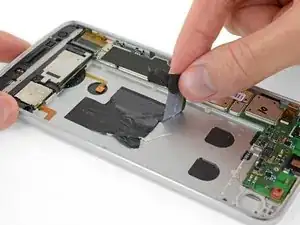

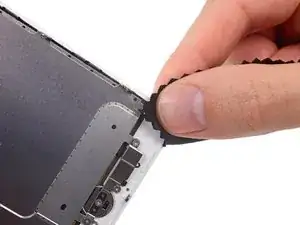

Remove large chunks of adhesives with your fingers, spudger, plastic opening tool, or tweezers.
-
Use adhesive remover or isopropyl alcohol (>70%) to remove residue from metal surfaces. Wipe in one direction with a lint-free cloth or coffee filter until all the adhesive residue is gone.
-
-
-
Before you peel any liners, locate the surface the non-colored side should stick to.
-

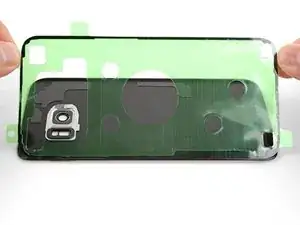

If the adhesive comes in pieces, match each piece to the device by its contours and set them next to your device.
-
To make adhesive application easier, you can align the strip to its intended position on the phone, then tape one edge down to hold the strip in place. This will allow you to peel away the liners and expose the adhesive without losing alignment.
-

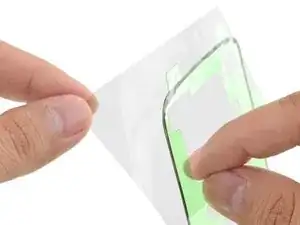

Once you have a good idea how the adhesive strip fits on the surface, peel the non-colored liner off.
-

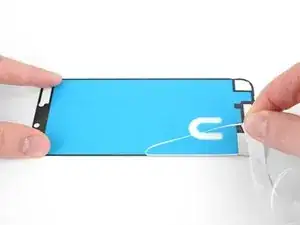

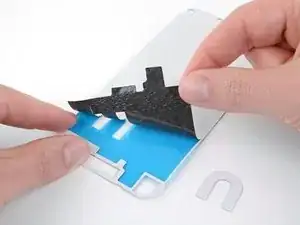

Carefully peel away the center portion of both the white (paper) and black (adhesive) layers, starting with the U-shaped cutout (if present).
-
Peel off and discard the remaining paper liner, exposing the adhesive underneath.
-
-
-

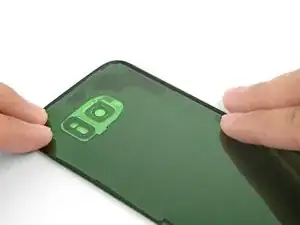

Hold the exposed strip by its tabs and carefully line up a long edge of the adhesive to the edge of the back cover.
-

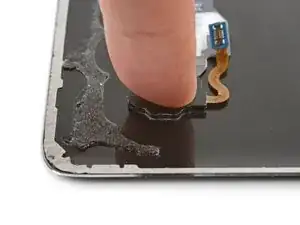

Set the adhesive onto the surface and press it firmly onto the surface with your fingers.
-

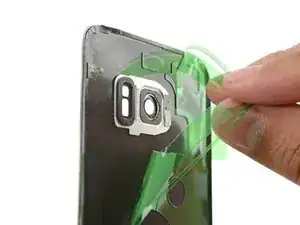

Peel away the colored liner from the adhesive strip to expose the remaining adhesive side.
-
-
-

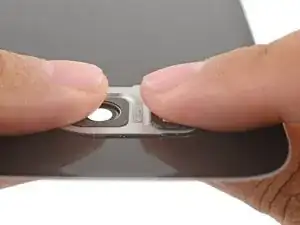

Press the other surface firmly against the exposed adhesive for 20-30 seconds.
-
If you are adhering a screen or a back cover, stack some books on top for a few hours to help the adhesive bond.
-
If properly applied, the adhesive should work reliably for a long time.
The repair may not restore the device’s water resistance. Be careful not to expose the device to liquids.
