How to Check Resistance of Suzuki Wagon R Temperature Sensor

Written By: ananda
  • Comments: 0
How to Check Resistance of Suzuki Wagon R Temperature Sensor

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

    • Be careful when working on Engine! Dont test when engine is running. Wait for engine to cool down!!

  2. BFkanVRyFYsQffJj
    BFkanVRyFYsQffJj
    1wkJg21aFqrYtpLs

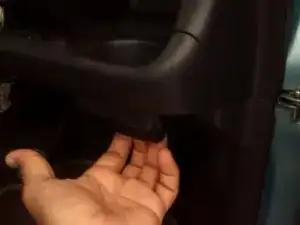

    • Pull the bonnet release handle located on the outboard side of the driver's side of the instrument panel. This will disengage the bonnet lock halfway

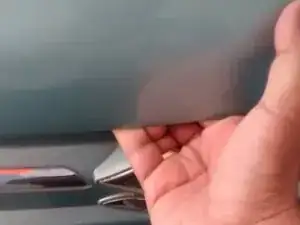

    • Push the under-bonnet release lever sideways with your finger. While pushing the lever, lift up the bonnet

    • Continue to lift up the bonnet until it is high enough to support with the prop rod

    • Make sure the bonnet is fully closed and latched before driving. If it is not,it can fly up unexpectedly during driving, obstructing your view and resulting in an accident.

  3. KWalDysMsQHgWfFA
    KWalDysMsQHgWfFA
    d26XRxweNxvgqQGj

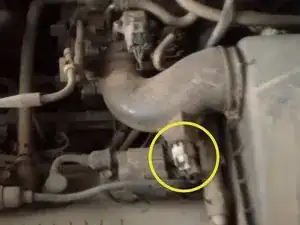

    • The component Intake air temperature sensor is located in the intake pipe just after the Air Filter.

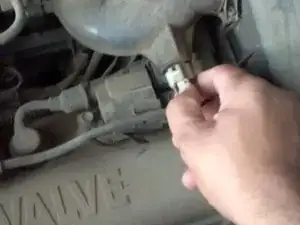

    • Unplug the plug connection by pressing the release tab

  4. GDC4xOTCDY4SH1vl
    GDC4xOTCDY4SH1vl
    IrsWiygjVapP2JvT
    nIolYuEQiydhrHNJ

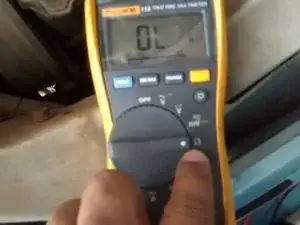

    • Turn the knob in the multimeter to set the test to Ohms/Resistance

    • Connect the terminal 1 and 2 of the component Intake air temperature sensor to Multimeter positive and negative

    • The set value at ignition on and engine cold is 1.3KOhms

Conclusion

To reassemble your device, follow these instructions in reverse order.
