How to Clean Up Solder from Connections

Written By: Romin
  • Comments: 1
How to Clean Up Solder from Connections

Difficulty

Moderate

Steps

5

Time Required

5 - 10 minutes

Introduction

Here I am going to show you how to clean up solder from two points on a logic board.In this case I am working on a chinese A13 all winner tablet and I am cleaning the solder points for the battery so I can correctly install a new battery on the logic boar

  1. HIaJuQDLS3TqmoQM

    • The materials needed for this are a soldering iron, soldering paste and desoldering wire, also known as a wick.

  2. L5rWh1HORALWhNjf

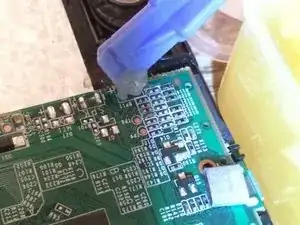

    • There are many types of soldering paste many of which are in a syringe like tube which makes it easy to get the paste in the exact spot it needs to be.

    • I personally use a plastic opening tool to scoop a little out and apply it gently on the spot I will be working on.

  3. VpCLxeSPQiwFbKVn

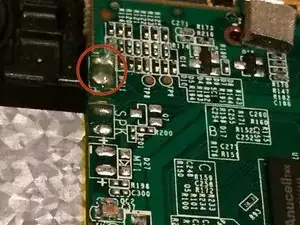

    • The location I will be de-soldering is right above the SPK location in the photo.

  4. u6yupmSJnFqShxPy
    u6yupmSJnFqShxPy
    Rg4MBVth5VuchmUr

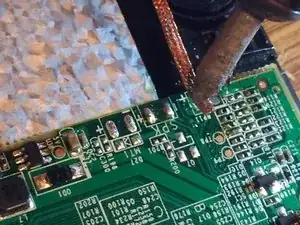

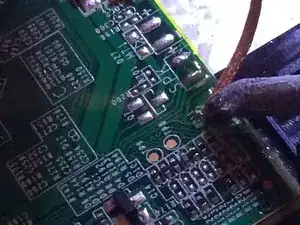

    • Place the de-soldering wick on the solder joint and put the tip of the soldering iron on it so the wick can heat up and absorb the old solder.

    • Please remember that logic board components are very fragile and excessive heat can destroy these components.

    • Lift the wick and the soldering iron up from the logic board at the same time. Failure to do so can cause the leftover solder to harden and solder the wick to the logic board and you could easily pull a logic board pad off.

  5. tsxeL1kyHmGP1ZTO

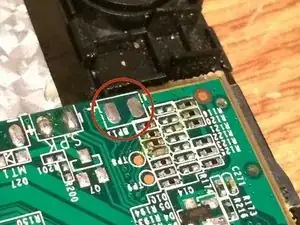

    • What’s left over is clean points on the solder board, ready for fresh solder.
