How to Fix a Loose Turret on a Sony Cyber-shot DSC-F828

Written By: Michael Ventura
  • Comments: 1
How to Fix a Loose Turret on a Sony Cyber-shot DSC-F828

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

Have a loose turret on your Sony Cyber-shot DSC-F828 camera? This guide will show you how to successfully repair that turret so your photo-taking skills can return to optimum performance. A shock-free mat or a grounding bracelet is also recommended when fixing this particular device.

Be sure to leave the lens cap on to avoid scratching the lens.

  1. ArhFvWNjA5YB6ZQT
    ArhFvWNjA5YB6ZQT
    aJmwAHWR1Kb1fySL

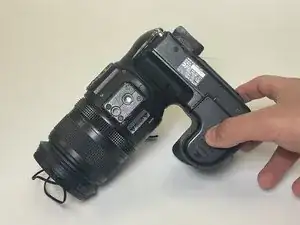

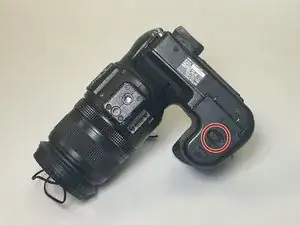

    • Slide the button back to open the battery cover.

  2. sw5ihWvWTvieCjpm
    sw5ihWvWTvieCjpm
    WqrpwLJK6vI6ZgRv

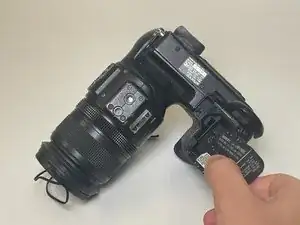

    • Pull back on the tab to release the battery.

    • Pull the battery out, then close the lid.

  3. wgXZp4JtuWIfMHIE

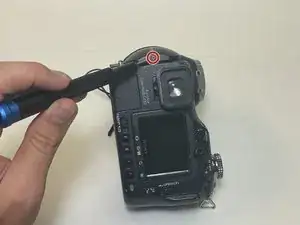

    • Remove the screw on the back of the turret with a JIS #00 screwdriver.

  4. HqjZjURwY6gxmOZn
    HqjZjURwY6gxmOZn
    JYVX2JgTWkFqNbYM

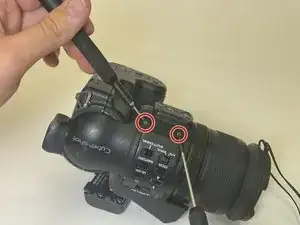

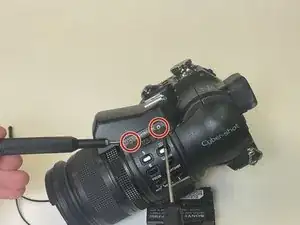

    • Remove two screws from each side of the camera (four in total) using a JIS #00 screwdriver.

  5. WbxXDgbMmPJORQdF

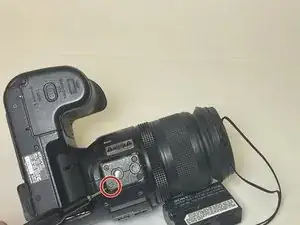

    • Remove the screw on the bottom of the turret using a JIS #00 screwdriver.

  6. ObjJDN1WJmr2e2rc

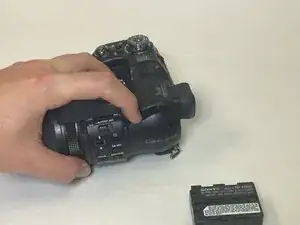

    • Carefully pull the face plate off and lay it down.

    • There is a cable attached to the plate that should not be removed.

  7. He1TRmldPWlSCVK4
    He1TRmldPWlSCVK4
    QPofNgigAtxumRAG

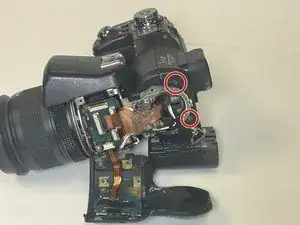

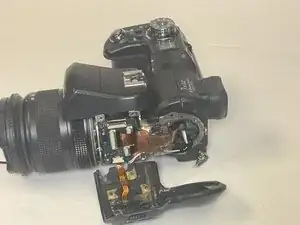

    • Tighten the two screws using a JIS #00 screwdriver.

    Here’s a way much better and thorough one:

    http://howtheheckdididothat.blogspot.com...

    Catalin Ap -

Conclusion

To reassemble your device, follow these instructions in reverse order.
