Introduction
You might notice the importance of having a car camera while on the roads, even if you are a cautious driver, accidents could still happen due to third party causes. You can place a car camera at the front of your car and record valuable evidential footages in case there is a need for it. Follow this guide to install your car camera and save yourself money and time. Installation will take about 15 minutes, and requires no tools.
-
-
Connect up the car camera to your PC via a USB cable.
-
Browse through the settings menu and key in any required information. E.g Time & Date Stamp, Voice Recording(On/Off)
-

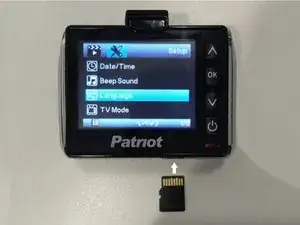

Insert a Class 10 SD Card and format the SD Card using the device's setting menu.
-
Try recording a video at your computer desk and test the playback function
-
-
-

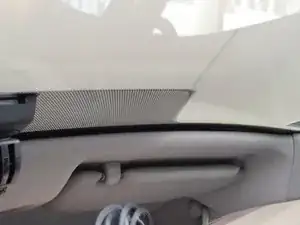

Plunge the camera with the suction cup to your preferred point.
-
Tip: Wet the windscreen with some clean water before plunging in the suction cup for a stronger hold.
-
-
-
Start tucking the USB Cable into the gap above the passenger seat.
-

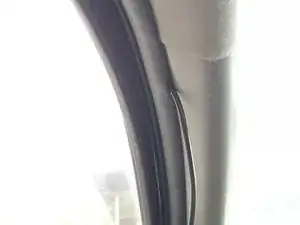

Align the cable between the gap and secure the cable in place by pushing in the wires using your four fingers.
-
-
-

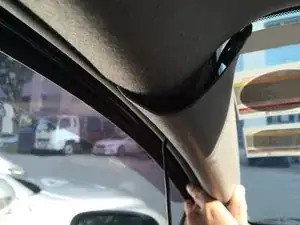

The side door trunking can be easily detached by giving it a firm nudge.
-
Hide the cable beneath the trunking leaving the free end nearer to the passenger seat as depicted in the picture.
-
-
-
Push the cable into the rubber sleeve using your thumb
-

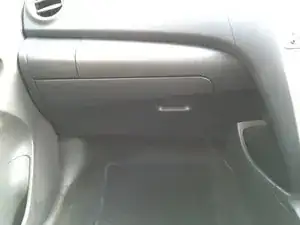

Keep your thumb in the sleeve and run the cable downwards until you reach the glove compartment area.
-
-
-
Use some duct tape to hold the cables in place if there are no crevices underneath your glove compartment.
-
Hang on there, you're almost done.
-
-
-

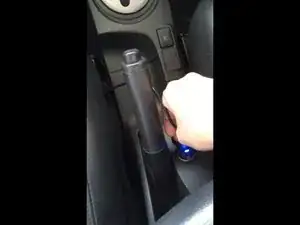

Plug in the USB convertor into the Cigar Jack Port.
-
Connect up the USB cable of the car camera into the port.
-
Start your engine if you haven't done so, car camera should switch on automatically upon detecting power from the car.
-
-
-

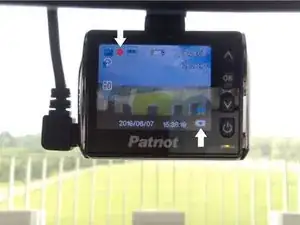

Ensure the camera is powered correctly, look for a charging indicator icon on your car camera device.
-
Make sure there is a red rounded icon that indicates "Record in Progress" before you drive off everyday.
-
You are done, enjoy the reassuring driving experience and be safe.
-
To reassemble your device, follow these instructions in reverse order.
