How to Install a Heatsink on an M.2 SSD

Written By: Carsten Frauenheim
  • Comments: 0
How to Install a Heatsink on an M.2 SSD

Difficulty

Easy

Steps

9

Time Required

5 - 15 minutes

Introduction

Use this guide to install a heatsink onto an M.2 2280 blade-style SSD.

If you plan on using your SSD in a PlayStation 5, make sure it’s compatible with Sony’s specifications.

  1. DccbBZZbgwhCrL3W

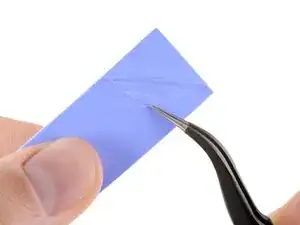

    • The heatsink uses thermal pads to dissipate heat from either side of the blade SSD. The thermal pads may come with plastic liners on each side, so make sure all are removed before use.

    • Use a pair of tweezers to peel one side of protective film away from one of the thermal pads.

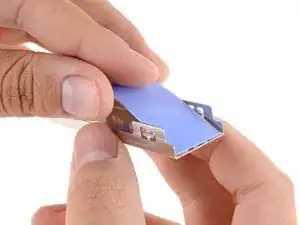

  2. xLf6dv1Tp4iUnmEy
    xLf6dv1Tp4iUnmEy
    vh2LdBdMw36EficM
    OS4i32GI3l6tZDEY

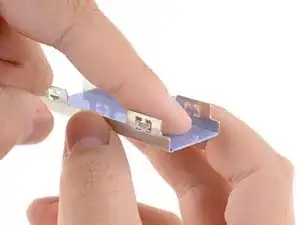

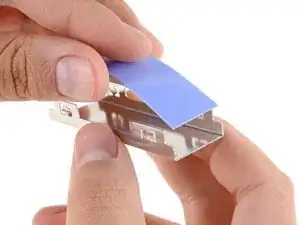

    • Align the exposed side of the thermal pad with the bottom tray section of the heatsink assembly.

    • Lay the thermal pad down so it covers the tray evenly.

    • Use your finger to lightly press down on the thermal pad to adhere it to the surface.

  3. PAXbpPGEkLTfZ62U

    • Use a pair of tweezers to peel one side of protective film away from the remaining thermal pad.

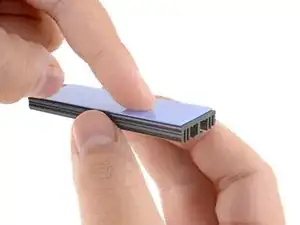

  4. TIpUKrIx4DHDMsYc
    TIpUKrIx4DHDMsYc
    3nngxyR1ivWY3HDe
    rdNygdagN6mSyZON

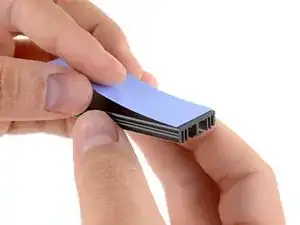

    • Align the exposed side of the thermal pad with the top section of the heatsink.

    • Lay the thermal pad down so it covers the top section evenly.

    • Use your finger to lightly press down on the thermal pad to adhere it to the surface.

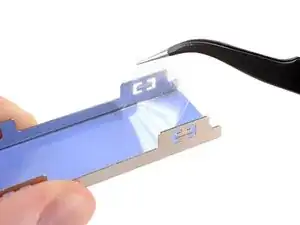

  5. SBFb1oCCL3XW5CId

    • Use a pair of tweezers to remove the plastic liner from the thermal pad in the tray.

    • The thermal pad might lift up from the tray as the liner is removed—this is normal. Use your finger to keep the pad in the tray.

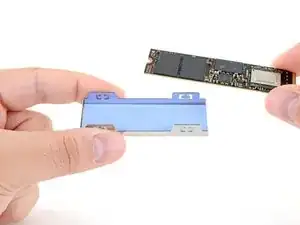

  6. TUp3uZOcIYlTfmiL
    TUp3uZOcIYlTfmiL
    MCbG5xV11nwUnYf5
    apngkJAeEV5KgBLB

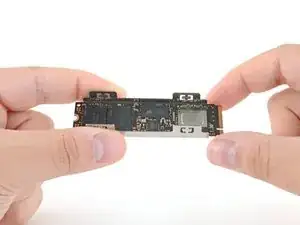

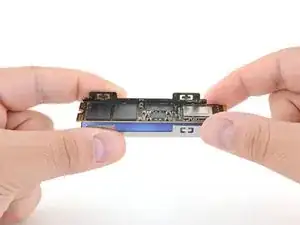

    • Lay the M.2 SSD into the tray, the side with the most chips facing up.

    • Make sure the SSD is centered in the tray. The tray shouldn't cover the contacts or the screw cutout.

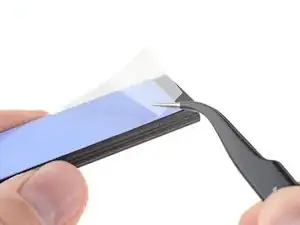

  7. eUCasLiNPeJA4sr1

    • Use a pair of tweezers to remove the plastic liner from the thermal pad on the heatsink's top section.

    • The thermal pad might lift up from the heatsink as the liner is removed—this is normal. Use your finger to keep the pad in place.

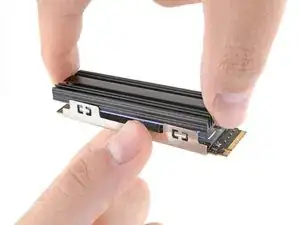

  8. DY12vpJimIDFFhmV
    DY12vpJimIDFFhmV
    ZuJqckGIKuM4tFxw
    tiEvvGtNjUXMrTG6

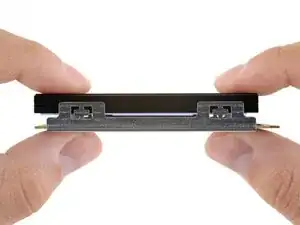

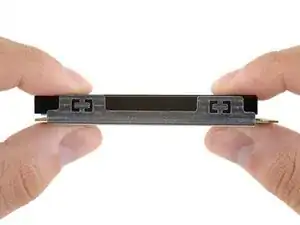

    • Align the top heatsink section over the SSD and the tray.

    • Firmly press the two halves together. You'll feel it "snap" into place.

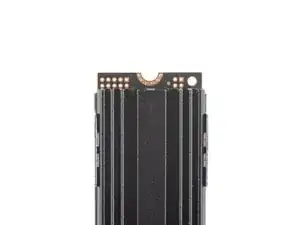

  9. TmEedQrGRFDxSUDv

    • For the SSD to fit in a desktop PC or a PlayStation 5, the heatsink needs to be centered on the SSD.

    • Make sure that the heatsink is close to the screw cutout but doesn't overhang it.

    • If you're having trouble installing your SSD, you may have to slightly adjust the heatsink's position.

    • Use your fingers to slide the SSD between the two halves of the heatsink assembly until fitment is just right.

Conclusion

Take your e-waste to an R2 or e-Stewards certified recycler.

Installation didn’t go as planned? Check out our Computer Hardware Answers community or PlayStation 5 Answers community for troubleshooting help.
