How to Repair Displaced Engine Gears in a Remote Controlled Helicopter

Written By: Neil Wolfe
  • Comments: 1
How to Repair Displaced Engine Gears in a Remote Controlled Helicopter

Difficulty

Moderate

Steps

8

Time Required

10 - 20 minutes

Introduction

If the rotors will not turn on your RC Heli and it will not take off, you might have knocked one of the engine conversion gears out of place. Easily access the gear box of your helicopter and repair it with this easy fix.

  1. uUTTCEMNnfXtNE3b

    • Locate the problematic engine gear inside the helicopter frame.

    • It will seem out of place and will not connect with the rotor gear.

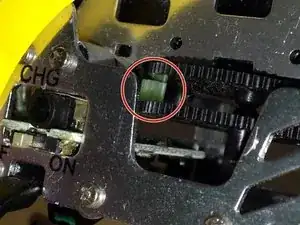

    • The white gear can be clearly seen out of place and not in contact with the upper rotor gear. This does not allow the blades to spin.

  2. lQqHYxEuRXrCEZoM

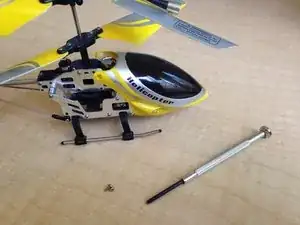

    • Grab the screwdriver that will fit the screws on your specific model.

    • The screws may not be the same sizes on your RC Heli.

    • Keep track of where the screws came from.

  3. 2h2mJhHqcZDfrprO
    2h2mJhHqcZDfrprO
    TJmZSQgbiAnkYILV

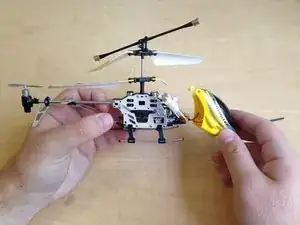

    • Unscrew the decorative/protective shroud blocking your access to the inside of the helicopter.

  4. OYsyHyVPQBxxWOyM

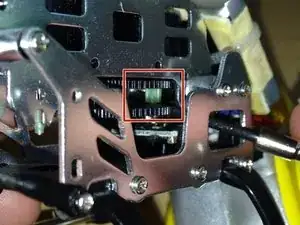

    • If it is possible to reset the gear without unscrewing further, attempt to push the gear back up into place on the motor shaft with a screwdriver or your finger.

    • If this works you have fixed the gear and can skip to step 7.

    • If the gear is inaccessible you will have to open the frame, go to step 5.

  5. InPZc2H5VZxodZPL
    InPZc2H5VZxodZPL
    ED2xunOgS6nLCUwD

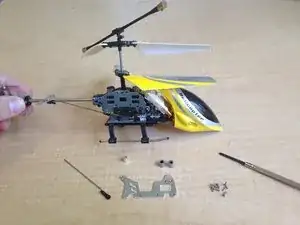

    • Unscrew one side of the frame and set it aside, allowing access to the gear.

    • Make sure all the screws and frame pieces are kept in a secure location.

  6. tkAdAyXkKUTqGUvZ
    tkAdAyXkKUTqGUvZ
    L62ssspscSkQADYU

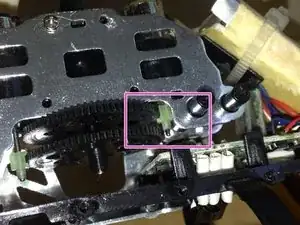

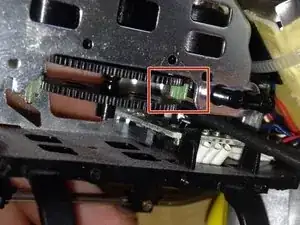

    • Place the screwdriver's tip underneath the clear motor gear.

    • Firmly push the gear back up into place so that it correctly connects with the main rotor gear.

    • See the last picture for a proper gear connecion visual.

  7. cfIASymNQIcxXwoi
    cfIASymNQIcxXwoi
    C5tge31aAB1b2AX1
    Iw5YNHHKa1UWhFEu

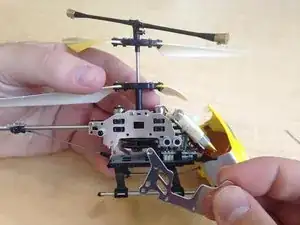

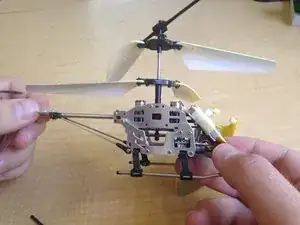

    • Return all the pieces to their original place inside the frame.

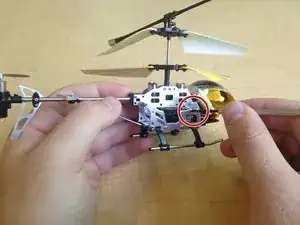

    • Screw the frame tightly back into place.

  8. RwDivCjs31xpmHGW
    RwDivCjs31xpmHGW
    sKFyZa5WY6em3kD5

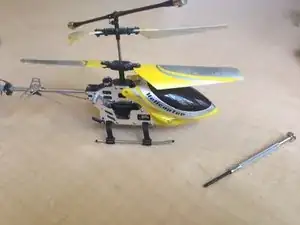

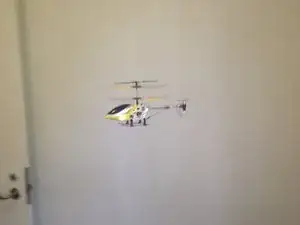

    • Test the helicopter for functionality.

    • If it works then the helicopter is fixed and you can screw the shroud back into place.

Conclusion

To reassemble, after testing for functionality, make sure all inner parts are back in their original location. Screw the frame and shroud tightly back in place.
