How to Repair a Frayed Headphone Cable

Written By: Tyler
  • Comments: 3
How to Repair a Frayed Headphone Cable

Difficulty

Moderate

Steps

8

Time Required

15 - 25 minutes

Introduction

Tired of replacing old headphone sets? Here’s a step-by-step guide on repairing frayed headphone cables in an environmentally efficient and affordable way. This guide will require soldering skills.

  1. VWmDxFjuCYJWmZnx
    VWmDxFjuCYJWmZnx
    2ft3kcXVjAGnCAq6

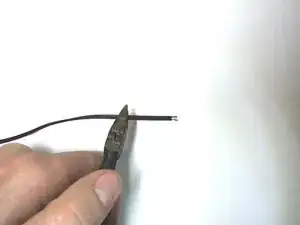

    • Cut above the frayed portion of the cable using wire cutters.

    • Using the wire cutters, strip away approximately one inch of wire coating.

    • Use caution to avoid cutting too far into the wire.

  2. JdkLd11Ilwu6XAnK
    JdkLd11Ilwu6XAnK
    P3kOVilrtdGgSiSN

    • After stripping the wire, four wires should be exposed. The wires should be three different colors.

    • Red: Right channel

    • Gold/copper: Ground

    • Blue/green: Left channel

    • Twist the two ground wires together.

    Wait, so which one is left? You said right twice

    bleepbloopimarobot -

  3. Se4yxrmdwHheD3Dl
    Se4yxrmdwHheD3Dl
    VjocnHKCH6aaUSFM

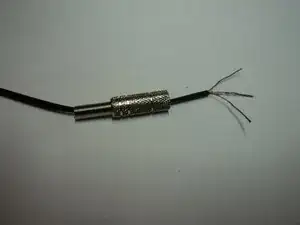

    • Unscrew the plug housing.

    • Thread the wire through the plug housing.

  4. NgvU14pdCKHsbFUD

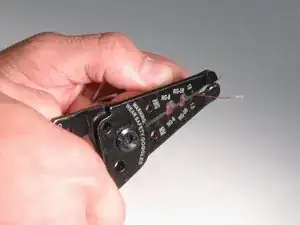

    • Remove the enamel from the red and blue wires with a wire stripper.

  5. kIFXROC4KVODcpkC

    • With a soldering iron, apply a small amount of solder to the end of each wire.

    • This is especially important for the twisted ground wires; the solder should hold them together.

  6. KkueEAqiIDRHsPIu
    KkueEAqiIDRHsPIu
    uQFHJjDeRtTTmRFX
    OdcW2lxBUohQZ4Oj

    • Thread the wires through each hole and wrap them back over.

    • See the third picture for a diagram of where each wire goes.

    • Next, twist each wire with itself to secure it to the lead. This can be seen in the second picture.

  7. dhGTWpUVGLAQCKEJ
    dhGTWpUVGLAQCKEJ
    fYH4yHVTvPqLnS4a

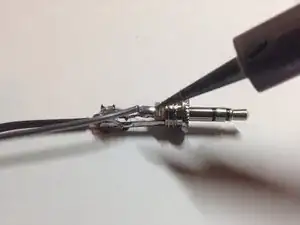

    • Solder over each lead's hole, connecting the wire to the lead.

    • Your solder joints should completely cover the hole and surround the wire.

    • After each wire is connected, use a drop of hot glue to secure the wires and prevent them from touching each other.

  8. cohNrYNWjLkdUSOD

    • Screw the housing back onto the jack and test your work.

    • If the sound turns on and off this is a connection error. To fix it, look at your solder joints and make sure the wires are fully connected to the leads. If not, apply more solder to the joints, covering the wire.

Author

Tyler

Member since: 24/02/15

716 Reputation

2 comments

To me, the more difficult part in this job, is solder.... Now, If you are not sure, with where solder each wire, try with a tester in the continuity mode, and test between the each part of the tip and the three holes. Greetings!

Anderson Barreto -

great instruction - any for repair of cable with microphone ? and even a flat cable ?

LiveVest -
