How to Replace the Propane Tank on a Toyota Forklift 8FGCU15

Written By: Dai-John-nae Williams

Comments: 0

How to Replace the Propane Tank on a Toyota Forklift 8FGCU15

Difficulty

Moderate

Steps

Time Required

10 - 15 minutes

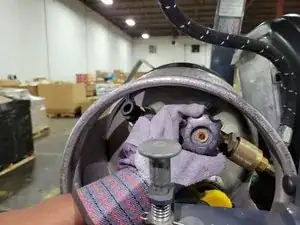

Introduction

If you need to replace the propane tank in your Toyota Forklift Truck (Model: 8FGCU15), follow this guide.

This style of forklift is quite common in warehouses, and the gas tanks frequently run dry. This is an OSHA compliant step by step guide to safely replace an empty propane tank.

While changing the tank, you will need to wear the the appropriate Personal Protective Equipment (PPE). Please be sure to acquire a pair of goggles and a pair of propane resistant gloves before beginning this project.

Step 1

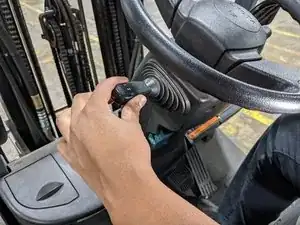

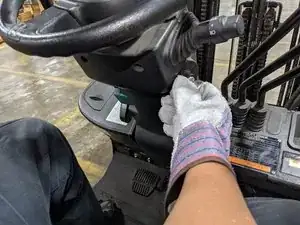

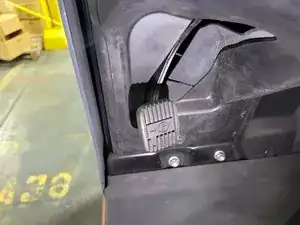

Put the shifter in neutral, turn the engine off, and engage the emergency brake.

Step 2

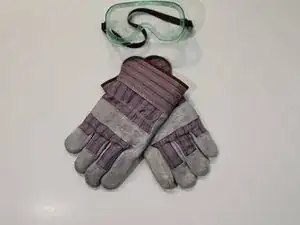

Put on the gloves and goggles.

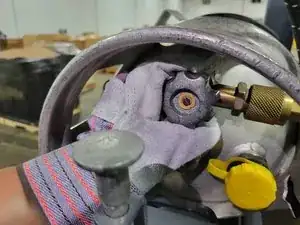

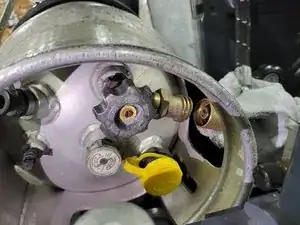

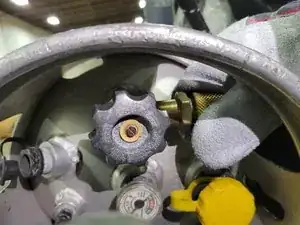

Turn the shut off valve clockwise to close the empty tank.

Step 3

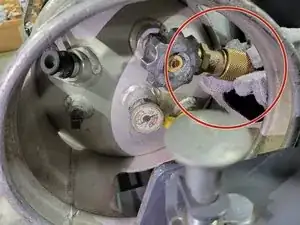

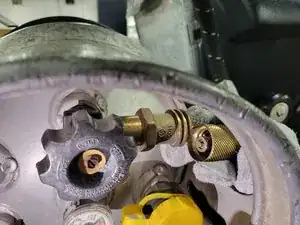

Disconnect the truck’s gas hose from the tank’s forklift adapter.

Step 4

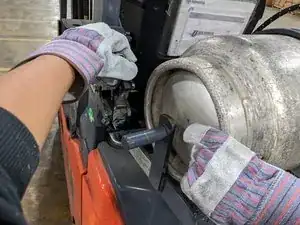

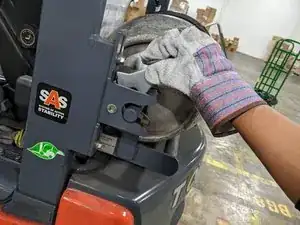

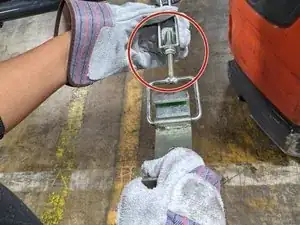

Look at the rack securing the tank to the truck.
Push in the latch on the left-hand side while simultaneously pulling the entire rack back towards you.

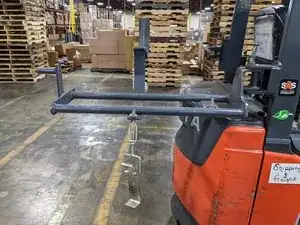

This allows the rack to swing out from the truck, creating space for you to release the much larger latch holding the tank to the rack.

Step 5

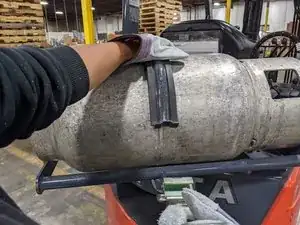

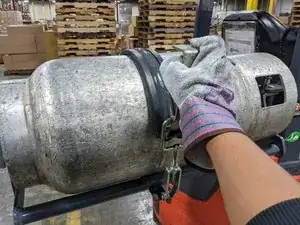

Release the latch holding the tank to the rack.

Step 6

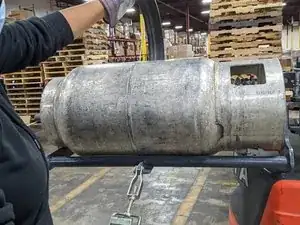

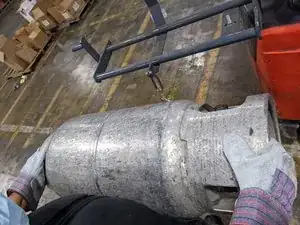

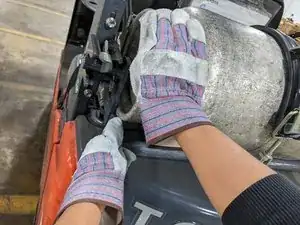

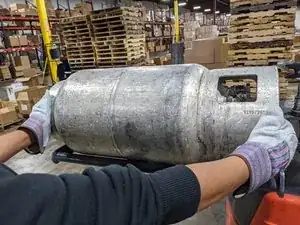

Remove the empty tank.

Step 7

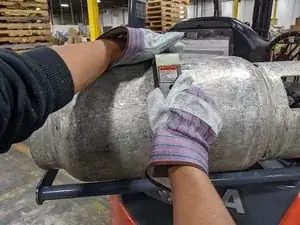

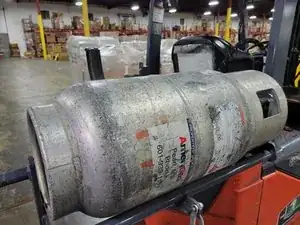

Position the new tank in the rack so that the forklift adapter is facing away from you.
This is to make sure the adapter and gas hose will line up once the rack is reconnected to the truck.
If needed, rotate the latch clockwise/counterclockwise before closing to loosen/ tighten the latch.
Some tanks may vary in width.

Step 8

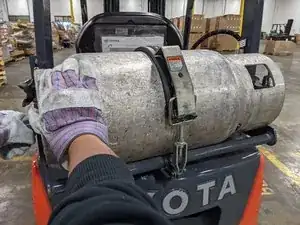

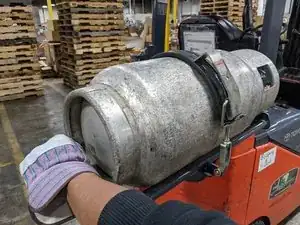

Clamp the tank to the rack.

Step 9

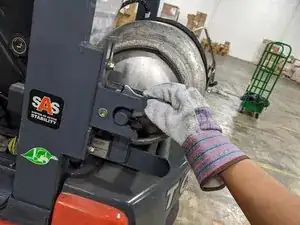

Secure the rack to the truck.

Step 10

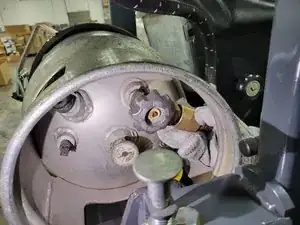

Carefully screw the gas hose onto the forklift adapter.
It is important to keep the hose and adapter straight while tightening. If the alignment is askew, the hose will not tighten all the way and may cause liquid propane to leak from the tank once opened. This can potentially cause frostbite if in prolonged contact with bare skin.
Please be sure to wear the required PPE to protect your hands and eyes in case of leakage.
