How to Replace the Suction Cups for the Anti-Clamp

Written By: Alex Diaz-Kokaisl
  • Comments: 0
How to Replace the Suction Cups for the Anti-Clamp

Difficulty

Easy

Steps

3

Time Required

5 - 10 minutes

Introduction

Use this guide to replace the suction cups on your Anti-Clamp.

  1. o4aXFlgqAU3ZRjgT
    o4aXFlgqAU3ZRjgT
    Jiu4KUW4BRQyYsaY

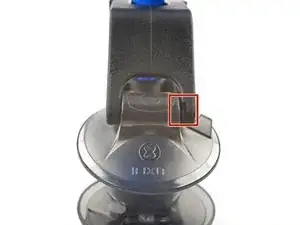

    • The suction cups are secured to the clamp by friction-fit pins.

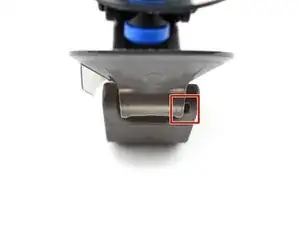

    • To remove the pins, you have to push them through their indents in the clamp's arms.

  2. QYrGLmAUYAERRCTV
    QYrGLmAUYAERRCTV
    ftLCshFYcMUPVHSf
    FBDank4lUUZnkDgn

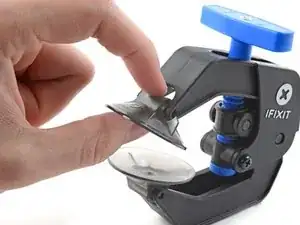

    • Rotate the suction cup towards the indentation in the clamp's arm to release the pin.

    • You may need to use significant force and another hand to support the Anti-Clamp.

    • Remove the suction cup and its pin.

    • During reassembly, angle the pin into the hole across from the indent before pushing it back into the arm.

  3. dWCf6TMfYmwWsfeQ
    dWCf6TMfYmwWsfeQ
    5Q3spojVp2XSZhwX
    H6NNDWd4GbtDf2Tv

    • Pull the pin through the top of the suction cup and remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.

For other general electronics skills guides, click here.
