Introduction

Replacing the windshield wiper blade is a simple repair.

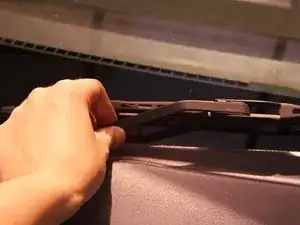

  1. NByG2TECQPSdOvgC
    NByG2TECQPSdOvgC
    KKQbAMCjhSndHCcL
    • Grab the windshield wiper at the base and lift in a counter-clockwise motion around the hinge, lifting the blade from the window.

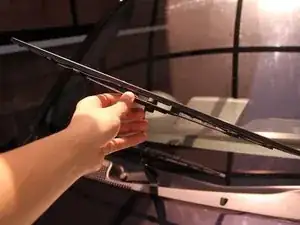

  2. 6SfQPNAwX6HRsDyT
    6SfQPNAwX6HRsDyT
    JcktJ4g4NZT1lUd6

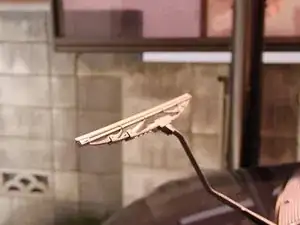

    • Rotate the wiper blade assembly so the replaceable blade faces outward.

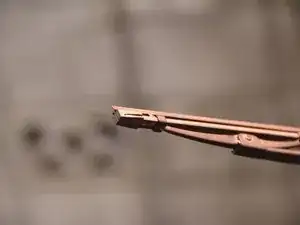

  3. jAIsTOibdchpu1jG
    jAIsTOibdchpu1jG
    ML1AObUBM5nQFPYK

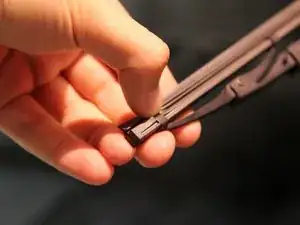

    • Remove the retaining clasp on the right edge of the blade.

    • The clasp is always on the rightmost edge of each blade.

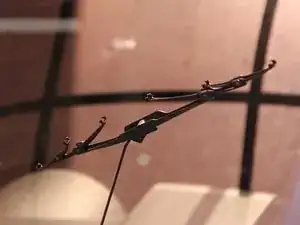

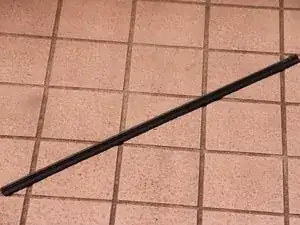

  4. NBJLrvbwZUZdtCEh
    NBJLrvbwZUZdtCEh
    q5mIq3M3Nk1tNUdU
    qLiSROXijEai6CnY
    • After removing the clasp, pull the blade from the wiper arm.

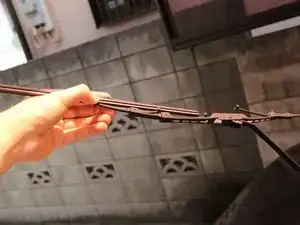

  5. BeKlr2cDQR4kh1LO
    BeKlr2cDQR4kh1LO
    fXW5GaWC2GbHeasQ
    • Insert the new blade by sliding it back into the slots on the wiper arm.

  6. ixTOJWQONCbPuRWH

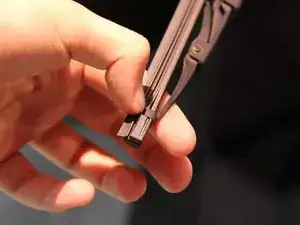

    • Reattach the clasp by sliding it back over the edge of the wiper blade.

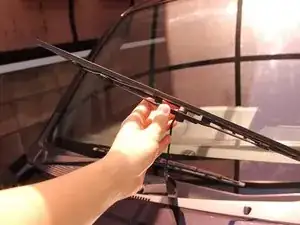

  7. oymtX6bppArHEsHy
    oymtX6bppArHEsHy
    iH63ODfv4BUwLYXL

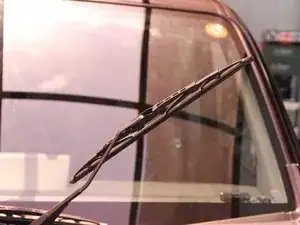

    • Return the windshield wiper blade back to its original orientation.

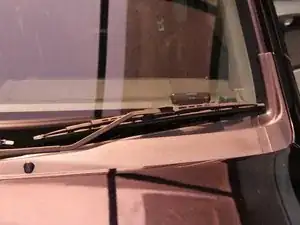

  8. YFvPkbNhsSxnIblL
    YFvPkbNhsSxnIblL
    ruyk2FiFqxFyyp5P
    • Rotate the wiper arm clockwise around the hinge until it rests on the windshield.
