Introduction

Use this guide to restore a dried Marking Pen.

Note: You may have to repeat the procedure a few times depending on how dry your Marking Pen is.

  1. yr2q3BpX3f2QDulX
    yr2q3BpX3f2QDulX
    tS6jBTehYULhfj4K
    • Fill a cup with enough isopropyl alcohol for the marking pen's tip to be fully submerged.

    • Place the pen into the cup with the tip side down.

    • Keep the pen as upright as possible to prevent the alcohol from going around the side of the pen nib.

    • Wait 15 minutes for the alcohol to soak into the pen tip.

  2. T21GCq3rCYYOAuZP
    T21GCq3rCYYOAuZP
    g36HQRmXHMFmS52P
    LJQbKJXEeOMDOYZ3
    • Remove the pen from the cup and wipe off any remaining alcohol from the pen tip.

    • On your FixMat, or another dry-erasable surface, draw the pen back and forth until you see alcohol leaving the pen nib.

    • Rotate the pen while drawing to ensure all sides of the pen nib are exercised.

    • If no alcohol is coming out of the pen nib, repeat the previous step.

  3. DsLEZgfVg2DLs3br
    DsLEZgfVg2DLs3br
    1NthaJSNYJUhxgdA

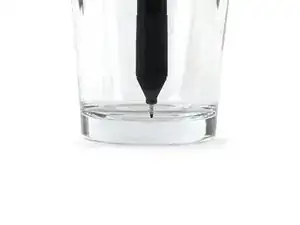

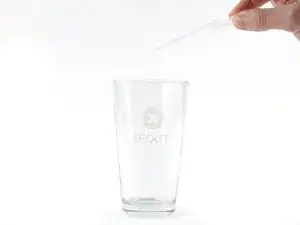

    • Fill a cup with enough water for the marking pen's tip to be fully submerged.

    • Place the pen into the cup with the tip side down.

    • Keep the pen as upright as possible to prevent the water from going around the side of the pen nib.

    • Wait 30 minutes for the water to soak into the pen tip.

  4. d4eNIeNXPf5QMRvh
    d4eNIeNXPf5QMRvh
    H2aPGHAeE1vG4qkc
    KuNf3yS4xUlVnHLQ
    • Remove the pen from the cup and wipe off any remaining water from the pen tip.

    • On your FixMat, or another dry-erasable surface, draw the pen back and forth until you see ink forming in solid lines.

    • Rotate the pen while drawing to ensure all sides of the pen tip are releasing ink.

    • If no ink is coming out of the pen nib, repeat the previous step.

  5. jwJXTH1bIH3cpZKC
    • Congratulations! Your pen has been revived.
