How to Restore or Apply an Oleophobic Coating

Written By: Arthur Shi
  • Comments: 57
How to Restore or Apply an Oleophobic Coating

Difficulty

Easy

Steps

5

Time Required

1 - 10 minutes

Introduction

Use this guide along with an oleophobic coating kit to restore the oleophobic coating on your device, or to add an oleophobic coating to your screen or screen protector. These kits can also be used to treat other glass surfaces, such as eye glasses, watches, smartwatches, and more.

The coating requires 8-12 hours to set, so it’s best to perform this procedure before bedtime.

What is an oleophobic coating?

Modern smartphones feature an oleophobic (oil-repellent) coating that protects the screen, improves smoothness, and reduces fingerprints. This coating consists of a thin layer of fluoropolymer-based solids (similar to Teflon) that is bonded to the glass.

Over time and use, this coating will wear off, and you may notice parts of the screen getting greasy or dirty with fingerprints more easily.

  1. ItHIwZjhaADtFJKo
    ItHIwZjhaADtFJKo
    bYCNWxfEoawyOHKo

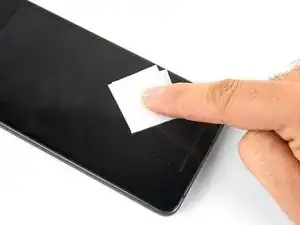

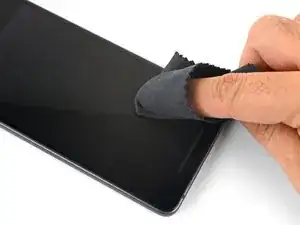

    • Use isopropyl alcohol to thoroughly clean the surface you are planning to apply the coating to.

    • Wipe the screen dry with a clean microfiber cloth.

  2. uaAalLbUEoQlJMw1
    uaAalLbUEoQlJMw1
    CG5RgUNNBHqcyqKP
    bLkbHHdX1umHkQCi

    • Read the next three steps before you attempt the procedure. The oleophobic coating's liquid solvent evaporates very quickly when applied, so you'll need to work quickly.

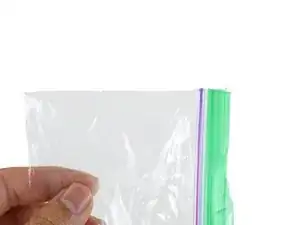

    • Wrap one finger in a bit of plastic. You can use a sandwich bag or some plastic wrap.

    • You will use this covered finger to rub the coating liquid onto the screen. This will prevent your finger from absorbing the liquid.

    wonder if rubber or latex finger protectors will work

    SZCthebandit ‖ -

    What happens if your finger absorbs it?

    Ciabbale -

    You'll have an oleophobic finger

    enjointyourlife -

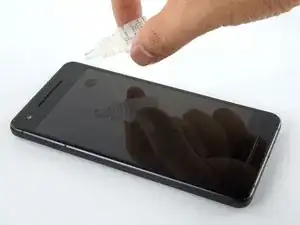

  3. Pf5phNaVc3GuIroT
    Pf5phNaVc3GuIroT
    1U6DPkuJKPx1QLMI
    6BQ5lrnyKOWJBtyt

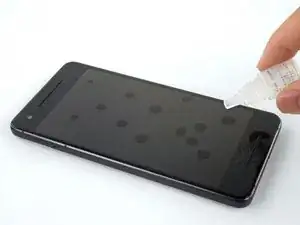

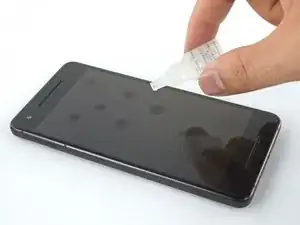

    • Apply 10-15 drops of the oleophobic coating liquid onto the surface.

    • If you are coating a large surface such as a large phone or tablet, apply ten drops to a portion of the screen, and work on one portion at a time.

    Where can I purchase this coating?

    franjoe1516 -

    You can buy this coating from aliexpress for $1

    Xiaomi -

    What is the name of the liquid

    Kail -

  4. ZgvxGjTvReJjEZL3
    ZgvxGjTvReJjEZL3
    vK5gEOl2UMxrKSGP
    ZHOT2jcrYeRLjs14

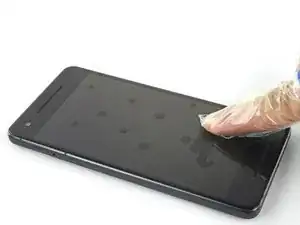

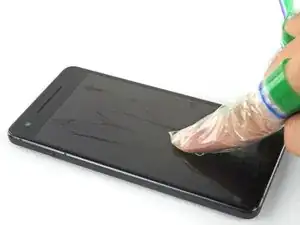

    • Wipe your plastic-covered finger over the surface with quick, light swipes until the liquid evaporates.

    • You don't need to rub very hard—you're just spreading out the coating molecules onto the surface before the solvent evaporates.

    • If you applied the liquid to only a portion of the surface, repeat the liquid application and rubbing procedure to the remaining surface.

  5. OkJmnSk5dWWwhaMk

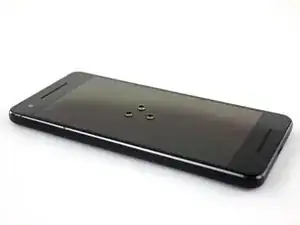

    • Do not touch the surface for 8-12 hours in order to allow the coating to bond to the surface.

    • For best results, apply the coating before bedtime, so it has all night to bond.

    • Afterward, you can wipe off any residue remaining on the touch screen with a clean microfiber cloth.

    • Repeat this process 2-3 times to fully maximize the oleophobic coating performance and film durability.

    When you say repeat this proccess 2-3 times, does this mean 2-3 times before you leave it overnight or 2-3 nights in a row you do this process once?

    Slobodan Erak -

    Your work is very excited to me and am so glad for gaining what I need the must

    Sa'idu Ibrahim -

Conclusion

Done properly, this results in a perfect oleophobic coating on your device.

Your device will still collect some fingerprints, but the oil left behind by your fingers will be greatly reduced, and easier to wipe off.

Reapply the coating every 1-2 months or as needed.
