How to Safely Discharge a Capacitor

Written By: Corey Brown
  • Comments: 1
How to Safely Discharge a Capacitor

Difficulty

Moderate

Steps

5

Time Required

2 - 15 minutes

Introduction

Capacitors are electronic components found in almost every device containing a circuit board. Large capacitors can store enough charge to cause injuries, so they must be discharged properly.

While iFixit currently doesn't sell a capacitor discharge tool, you can easily create your own.

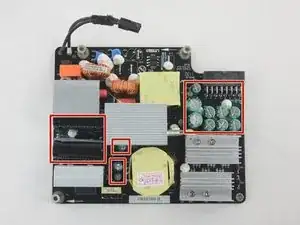

  1. 3KEhWgk1yt2GqI4f
    3KEhWgk1yt2GqI4f
    JYpNy2qFbnIIxyxl
    kax6XNIY54ml2jYJ

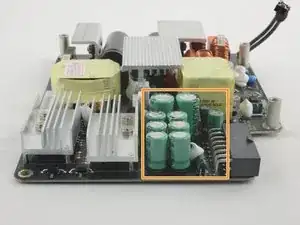

    • Capacitors come in various shapes and sizes, but the large cylindrical capacitors typically are the ones that store enough energy to be potentially dangerous.

    • Aluminum and Tantalum Electrolytic capacitors can pack a lot into a relatively small volume. They’re well suited to high-voltage applications because of their relatively high maximum voltage ratings.

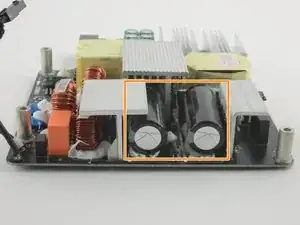

    • Aluminum electrolytic capacitors, the most commonly used for high voltage, usually look like little tin cans, with both leads extending from the bottom.

  2. aFJfHPP2AQ5fnScD
    aFJfHPP2AQ5fnScD
    ehXI6cEEANptTxNU

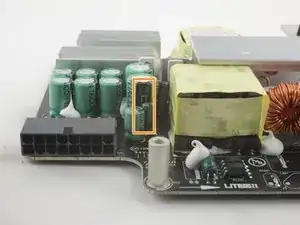

    • Identify all the capacitors in your device.

    • Locate where the capacitor's cathode will be by finding the side of the capacitor marked with a "-" (minus) symbol. This side will correspond to the negative lead, or cathode.

  3. sYxZkyJFMG64wWfW
    sYxZkyJFMG64wWfW
    3bDEtwYWLWSSwwfE

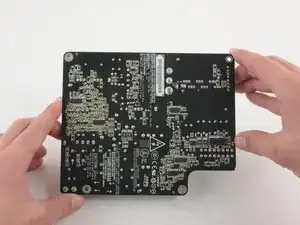

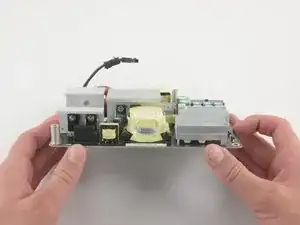

    • Flip the circuit board over to access the capacitor's leads.

    • Avoid touching any metal when handling your electronics. Before being safely discharged, circuit boards may contain excess energy that can be dangerous.

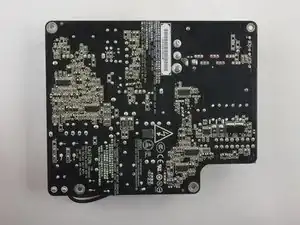

  4. UQAegTwPocDSFvJK
    UQAegTwPocDSFvJK
    xWJkTUcqyZlCtkLF

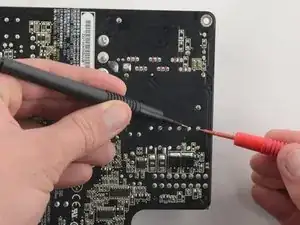

    • Touch the black, or negative, tip of the discharge pen to the capacitor's cathode.

    • This is the lead that you previously identified with the minus symbol on the side of the capacitor.

    • Touch the red, or positive, tip of the discharge pen to the other lead, the capacitor's anode.

    • Do NOT connect the positive and negative terminals of the capacitor together with standard wire, screwdrivers or wrenches as this will damage the capacitor and could cause bodily harm to the user.

  5. PTQBW4ZYPsJRNwYn
    PTQBW4ZYPsJRNwYn
    lwsapJC6NFoFpiXZ

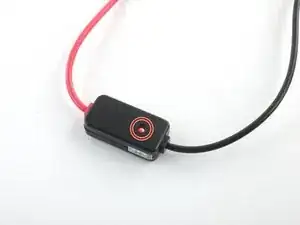

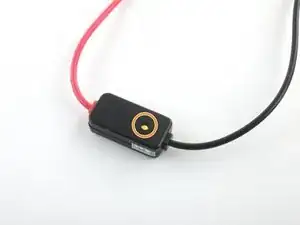

    • Watch the LED indicator on your discharge tool. If there is still a charge in the capacitor, the LED should glow red until the capacitor is fully discharged.

    • Once the light is no longer on, your capacitor is fully discharged and safe to handle.

Conclusion

Your capacitor is now safe to be handled, shock free!
