How to Safely Raise a Vehicle Using Ramps

Written By: Jeff Suovanen
  • Comments: 10
How to Safely Raise a Vehicle Using Ramps

Difficulty

Moderate

Steps

8

Time Required

5 minutes

Introduction

Used properly, ramps can be a safer alternative to raising your vehicle with a jack and jack stands. Ramps can also be easier and faster, especially if your car sits low to the ground where it's difficult to see the jack points.

Keep in mind that your vehicle won't be level when using ramps, since you can only use ramps at one axle. Therefore, ramps aren't advised for changing fluids (such as motor oil) because having the vehicle tipped up at an angle can prevent fluids from draining fully.

This guide can be completed by a single person, but it's helpful to have a friend spot you from outside the vehicle as you drive it up the ramps.

If you'd rather raise your car or truck using a hydraulic jack and jack stands, follow this guide instead.

  1. or6KZc2qZiffN46g

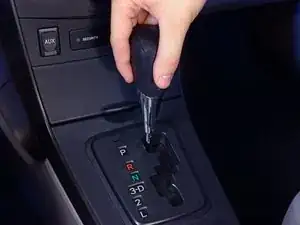

    • Caution: Injury may result if this procedure is not followed properly. Be sure to follow each step carefully and follow all warnings.

    • To begin, park your vehicle on a firm, level surface such as concrete or asphalt.

    • Never try to raise your vehicle on soft or uneven terrain. If the ground shifts or the ramp changes position unexpectedly, you could be seriously injured or killed.

    • Center the steering wheel so that the front wheels point exactly straight ahead.

  2. J2ZR5sgyX63PPqE3
    J2ZR5sgyX63PPqE3
    ZNRBjljBVhlL4mTM

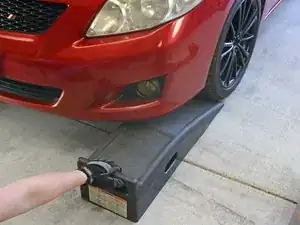

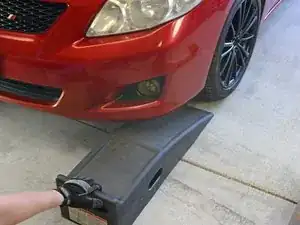

    • Slide the first ramp directly in front of the vehicle's front, driver-side wheel, until it touches the rubber of the tire.

  3. h6fdLL55nMfYIDY5

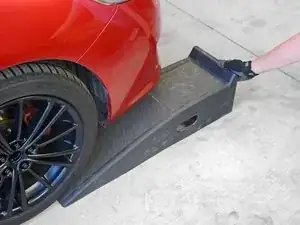

    • Put the second ramp into position directly in front of the vehicle's front, passenger-side wheel.

  4. scumuxJeKkSdPrK3

    • Make sure each ramp is centered in the path of the tire so that once the vehicle moves forward, both wheels will stay completely supported by the ramps.

  5. wnjyhyJvQI3DBGJG
    wnjyhyJvQI3DBGJG
    mboFKMH2ME3PVjU6

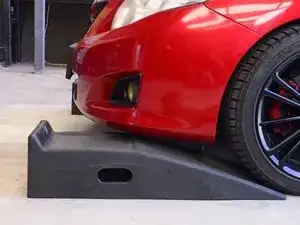

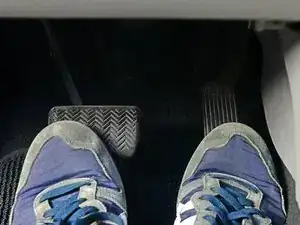

    • With the motor running and your vehicle in gear, begin slowly driving it straight forward onto the ramps.

    • Due to the steep incline of the ramps, you'll need to give it more gas than you might expect. At first, the vehicle may not move forward at all.

    • Slowly and steadily apply more throttle until the vehicle begins creeping up the ramps.

    • When doing this for the first time, be prepared to stop quickly in case you accidentally apply too much throttle. Either keep one foot on the brake pedal, or one hand on the e-brake lever. If your car has a manual transmission, use your left foot to feather the clutch pedal.

  6. AqCoBfZvDiS6vHQR
    AqCoBfZvDiS6vHQR
    qpFH62SGnoB3SHKl

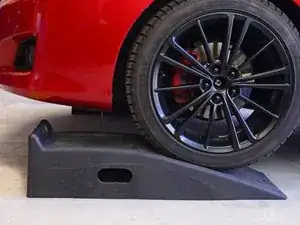

    • Continue driving slowly up the ramps until your vehicle levels out, and then stop immediately.

    • You can either find the correct place to stop purely by feel, or you can have a friend spot you from outside the vehicle.

    • Most automotive ramps have a slight dip at the top, or a bump stop, or both, to help stabilize the vehicle with the wheels in the correct position.

    • If you don't make it all the way up the ramps on the first try, that's okay—it can take several tries to get a feel for how the vehicle responds on the ramps. Let it roll back down, stop at the bottom, reposition the ramps and try again.

  7. AvN1JXA1JORbZOF5
    AvN1JXA1JORbZOF5
    TKvT6FxtnxsiRp24
    dlC3bNM2eMTBNO4F

    • With the front wheels in final position at the tops of the ramps:

    • Put the vehicle in Park (or first gear if you have a vehicle with a manual gearbox).

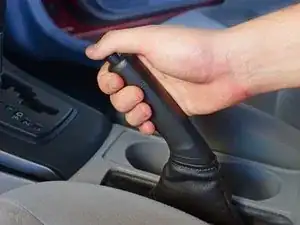

    • Set the parking brake.

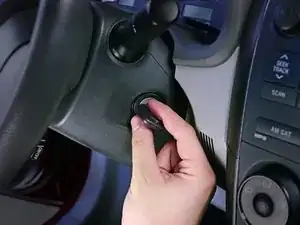

    • Turn off the ignition and remove the ignition key.

    • Use extra care when exiting the vehicle, which is now raised much further from the ground than when you entered.

    This is incorrect. Put the vehicle in Neutral so it can nestle into the cradle of the ramp. This prevents overdrive and failure of the ramp.

    THEN put the vehicle in Park and apply the emergency brake.

    Mark Lennox -

  8. yGIptOdpdCD1tHfJ
    yGIptOdpdCD1tHfJ
    L1FO25OEaZNLHDEK

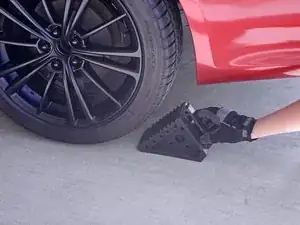

    • Chock the rear wheels to prevent the vehicle from rolling backwards down the ramps.

    Always use jack stands with these ramps since there have been instances of failure.

    Mark Lennox -

Conclusion

When your repair is complete, remove the wheel chocks and any other tools/obstructions before carefully backing your vehicle down and off the ramps.

Author

Jeff Suovanen

Member since: 06/08/13

406727 Reputation

8 comments

G’day Jeff

Thanks for the great guide! Very clear.

Question: Is it a bad idea to use just one ramp?

Say, for an oil change.

Stephen

Stephen Fujiwara -

Thanks for the guide, does the same ramp work for a regular sedan and an SUV? or it has to be different height? thanks

Dikran Kehyayan -

Hi Dikran,

You can use the same ramp for either vehicles. Be sure to check whether the ramps can handle the SUV’s weight.

Arthur Shi -

Good stuff. I still use ramps to change my oil simply because the amount of oil left in the vehicle due to the angle is negligible. 1 cup of oil remaining when I’ve removed and are adding in 4-5 quarts (16-20 cups) really isn’t a big deal unless you’re anal retentive.

Buster Ecks -

What ramps are being used in the pictures?

Andrew Morgan -

They look like they are RhinoRamps from the pictures.

ricky-fe -

They look like “plastic” rhino ramps. I’ve seen them at Walmart and harbor freight has a generic off brand version

ahoier -

Say you have it on ramps to change the oil and have drained the oil already, how would you get it back down to add in the new oil?

Kathryn Orian -
