How to Use Heat Shrink Tubing

Written By: Geoff Wacker
  • Comments: 7
How to Use Heat Shrink Tubing

Difficulty

Very easy

Steps

5

Time Required

2 - 5 minutes

Introduction

Use this guide to learn how to use heat shrink tubing to repair frayed sheathing on a wire or cable.

  1. Fs1TrkMEtQoXjKAb

    • Measure the diameter of the wire, and then choose a piece of heat shrink that will be large enough to slide onto the wire before heating but will still provide a snug fit once heated. The shrunken diameter should be slightly smaller than the wire's diameter to ensure a tight fit.

    • Heat shrink tubing has a shrink ratio that dictates how much the tubing will shrink once heated, so it's important to choose the right ratio for the job. For example, a length of 2:1 ratio tubing with a diameter of 2 mm will shrink to a diameter of 1 mm.

  2. l3Rv2xc3Y6YV5Z6p
    l3Rv2xc3Y6YV5Z6p
    nLRSm1VcqHlTEUuK

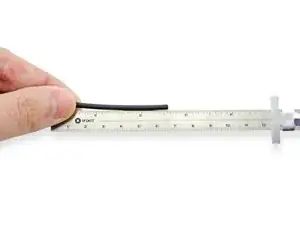

    • Measure a length of heat shrink tubing that is slightly longer than the damaged section of wire.

    • Most heat shrink tubing will also shrink longitudinally (around 5-15%), so be sure to give yourself enough tubing to cover the exposed area after heating.

  3. M64jWcERByiPvxVG

    • Use a pair of scissors to cut the tubing to the appropriate length.

  4. LUVaGHOWICJ6oShH
    LUVaGHOWICJ6oShH
    xEaIZcICjjPp4oRE

    • Slide the tubing onto the wire so that it covers the damaged/exposed section.

  5. PVeoHW1ffVGYZqQD
    PVeoHW1ffVGYZqQD
    Um14Rjy5eXR6Jcb2
    5PL2Rgue54HWdGkZ

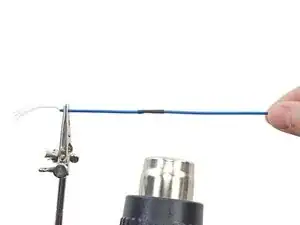

    • Use a heat gun to shrink the tubing.

    • Keep the heat gun moving back and forth along the length of tubing, as staying in one place can damage the wire even further.

    • Continue heating the tubing until it is tightly secured to the wire.
