Introduction

Follow these instructions to use an Anti-Clamp to open a device.

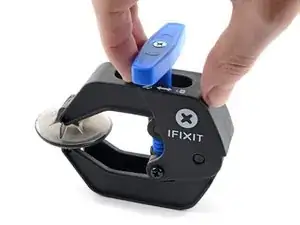

  1. D54NuMTREEanNvSg
    D54NuMTREEanNvSg

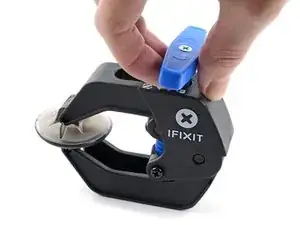

    tTBQtQlTwLMyEUwd
    • Pull the blue handle toward the hinge to disengage opening mode.

    • This allows you to move the arms of the Anti-Clamp freely.

    • The handle may be stiff the first time you disengage opening mode. Don't be afraid to pull on it until it snaps into position.

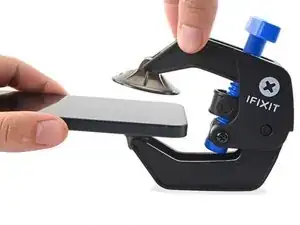

  2. 6qv5VnRJJFR5YUSw
    6qv5VnRJJFR5YUSw
    ppk3qoSsGFoqPuaH
    • Center the suction cups over a smooth area of the device, near the edge.

    • Avoid buttons, gaps, seams, and speakers, as they will prevent a good hold.

    • For stubborn devices, use an iOpener or heat gun to soften the adhesive before and during the opening process.

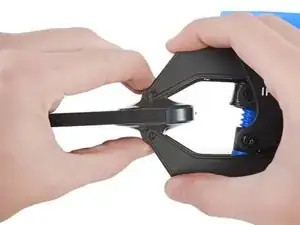

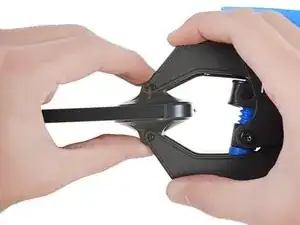

  3. qPq1aDSoSFwVDtF3
    qPq1aDSoSFwVDtF3
    vSvpo1NTiGIMyQOa
    • If your device has cracked glass or a slippery surface, follow this guide to apply the included tape pad.

    • If your device can be opened from its screen and back cover, follow this guide to apply the included tape strips.

    • Push down on the cups to apply suction to the desired area.

    • If the suction cups are stiff and hard to secure, use your hands to warm them up.

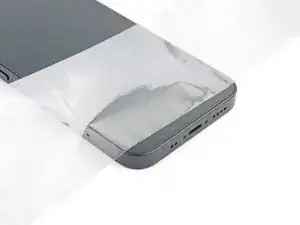

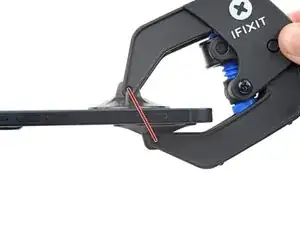

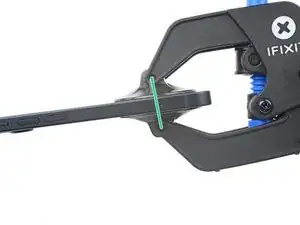

  4. 5qTNuFFJhAeZXEG1
    5qTNuFFJhAeZXEG1
    NbmBKnHGvPFEPrAC
    Q5OyxbBjV6oilTZS
    • The Anti-Clamp works best when its cups are aligned with each other.

    • Improper alignment may cause the cups to separate prematurely.

    • If you find that the surface of your device is too slippery for the Anti-Clamp to hold onto, you can use packing tape to create a grippier surface.

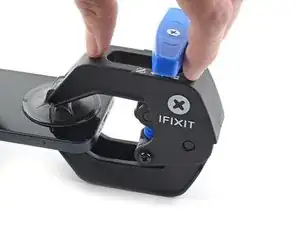

  5. nqPCcQrfjb2HN2jC
    nqPCcQrfjb2HN2jC

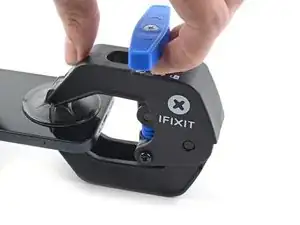

    FK5EHBuRXZDNQ42D
    • Push the blue handle away from the hinge to engage opening mode.

    • This prevents the arms of the Anti-Clamp from moving and allows the handle to pull the arms apart.

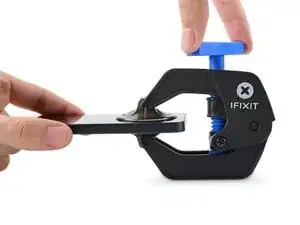

  6. IoYV2ZWs6YM1ItGX
    IoYV2ZWs6YM1ItGX

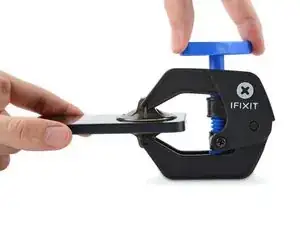

    vltCLbscqBY5oeTL
    • Most adhesive separates under constant tension rather than increasing force. Take your time during this step to avoid prematurely separating the suction cups.

    • Turn the handle clockwise until you see the cups start to stretch.

    • Wait one minute to give the adhesive a chance to release and present an opening gap.

    • If you're having trouble making a gap, rotate the handle clockwise half a turn and wait another minute.

    • Don't crank more than a half a turn at a time, and wait one minute between turns. Let the Anti-Clamp and time do the work for you.

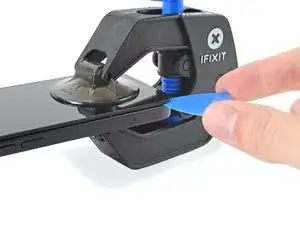

  7. uNWJ26lQPICIWBuF
    uNWJ26lQPICIWBuF
    krKi4eZQTBcwjkdu
    olKgneE4reRmjDsE
    • Insert an opening pick when the Anti-Clamp creates a large enough gap.

    • Slide the pick along the perimeter of the device to separate the adhesive.

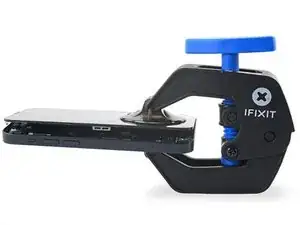

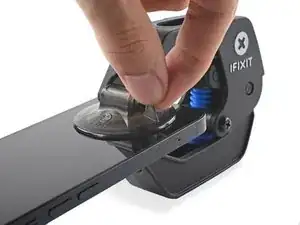

  8. ZEFreMEXvLsaJORB
    ZEFreMEXvLsaJORB
    cVHETtkCJRtQ5Qhb
    • Repeat the opening and slicing procedure until the device is open.

    • Be mindful of any cables when you completely remove the component.

    • To remove the suction cups, disengage opening mode and pull on the tabs located on the cups themselves.

Conclusion

For other general electronics skills guides, click here.

For a fun way to decorate your Anti-Clamp, click here.
