How to Use the Anti-Static Wrist Strap

Written By: Alex Diaz-Kokaisl
  • Comments: 1
How to Use the Anti-Static Wrist Strap

Difficulty

Easy

Steps

7

Time Required

30 seconds - 3 minutes

Introduction

Follow this guide to learn how to use an anti-static wrist strap.

Anti-static wrist straps help minimize electrostatic discharge (ESD) when repairing electronic devices. Although not technically required, they pair with anti-static mats to equalize the charge between your hand and the device.

For more information on ESD, click here.

  1. YVhd5Iw3ypkBAaDa
    YVhd5Iw3ypkBAaDa
    Qx2OFQpPA4hgkXEM

    • Before you begin, remove any jewelry from your wrist and fingers.

  2. TbbFFBkhwVLE3PUh
    TbbFFBkhwVLE3PUh
    ZjIkKkOoMfgYTQX6

    • The anti-static strap should be adjusted to fit snugly on your wrist.

    • Pull up on the looped end of the strap to disengage the plastic lock.

  3. lTlNHmOkOaCgbFa4
    lTlNHmOkOaCgbFa4
    HMFPPXnvyI4VTAFi

    • To tighten the strap, pull the looped end away from the plastic slide.

  4. IXP4SCWLjbaZXYEF
    IXP4SCWLjbaZXYEF
    lZwOfOvKeS62PfXW

    • To loosen the strap, pull the main part of the band away from the plastic slide.

    • Re-engage the plastic lock before continuing.

  5. KZYEQpy4b6S3IkkA
    KZYEQpy4b6S3IkkA
    TKeDYOvLxxZhU4BU

    • Slide the strap over your hand and secure it to your wrist.

    • If the strap is still too loose or tight, you can adjust it while it's on your wrist.

  6. YYyYlUChWGYbVBab
    YYyYlUChWGYbVBab
    DhVNxJx2POtpxIwF

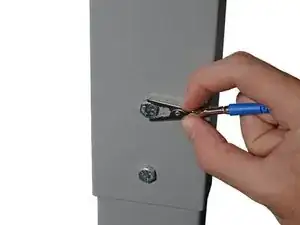

    • Attach the metal clip to one of the grounding nodes on an Anti-Static Mat or a grounded metal surface.

    What qualifies as a grounded metal surface?

    Henning Sprang -

  7. BTMMNxDqKgcYQxqy

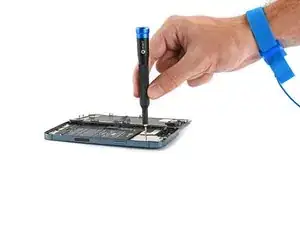

    • You're now ready to repair.

    • During your repair, be mindful of the strap's cable, as stretching it too far can cause the clip to unsnap.

Conclusion

For other general electronics skills guides, click here.
