Introduction

If it’s time to change the rear tube and tire of your dirt bike, follow this guide. This includes pulling the tire off the bike, tearing it down, and re-mounting it.

  1. x5uA5dwIFRyUUlim
    x5uA5dwIFRyUUlim
    ZQZCIlBKY5EIwXyr
    • First pull the cotter key out of the axle that holds the tire on. Then pull the nut off of the axle.

  2. aCXIcqUJ5hqMuhxR
    • The chain will still be on the sprocket. It is easy to roll it off the side of the sprocket.

  3. XDcSPEdq3RsxNCxv
    • The bolt is off the axle already so use a rubber mallet to beat the axle out of the wheel. After the axle is far enough through, you can pull it out the rest of the way with your hands.

  4. QWg6LcSryyYeORfU
    QWg6LcSryyYeORfU
    Cu1fpMXDZrKETySk
    YmQE4gLhCUXvIy2X

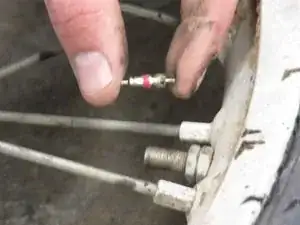

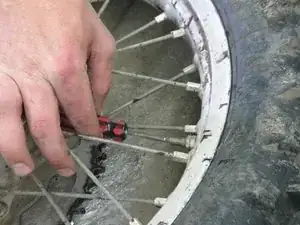

    • The wheel is now off. Now you should take the valve core out of the tire with a valve core tool, and release all the air. Use a size 12mm wrench and take the nuts off the valve stem, and the bead lock. Which is the other thing in the rim with a nut on it besides the valve stem.

  5. 11S5FpAmNEmi3SOi
    • Do not take the nut all the way off of the bead lock, Just make sure it as loose as possible.

  6. G6DuXFNGEMBqHdFB
    G6DuXFNGEMBqHdFB
    4LP5IOCiwKZyoHmu
    vL3UEsansW1YhDPI
    • After all the air is gone you need to break the bead loose on both sides. Just push down so the tire goes away from the rim.Then spray soapy water in between the rim and tire all the way around on both side. Then take the tire iron and wedge it between the rim and tire. Once wedged use leverage from the rim to pull the tire up and away.

  7. TbBmeQKGwMtknLZQ

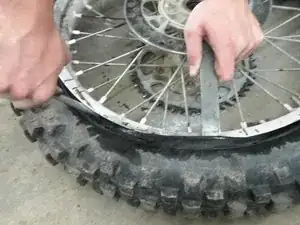

    • Then take the dirt bike tire iron and wedge it between the rim and tire. Once wedged use leverage from the rim to pull the tire up and away.

  8. YLIm62ZWlOkZE3E5
    YLIm62ZWlOkZE3E5
    DcBpVTuUFTC2dASr
    • Once you have it pulled go about 5 inches down the rim and use the same leverage idea. Once you have it pulled away take the first spoon out and move 5 inches again and wedge it again. Repeat this step until one side of the tire is off the rim.

  9. Fv2iapnwgdZvIub5
    Fv2iapnwgdZvIub5
    b6TlLIECvVahuwDC
    HPNDCuErbbpWrqSN

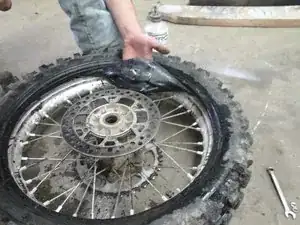

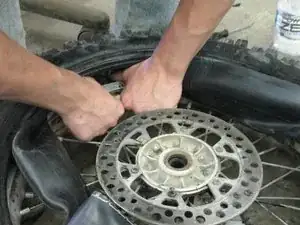

    • If you are actually changing the whole tire repeat this to pull the rest off the tire off. If not pull the tube out of the slit that you have made by pulling the half of tire off.

  10. KKo5qZuQ4tDySxJ2
    KKo5qZuQ4tDySxJ2
    SLJFKKMkarGBaHrS
    uxlFhVxvqskEUJwC

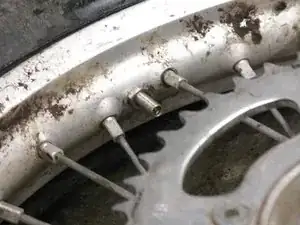

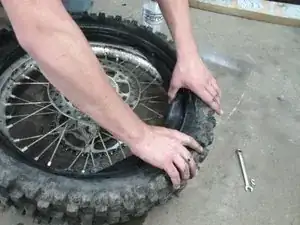

    • Put the new tube in the tire. put the valve stem through the hole in the rim then put one of the nuts on it.( not the bead lock.) Add a little bit of air to the tube.(the less you use the better off you are.)

  11. UCXphsJHXRRGs3oX
    UCXphsJHXRRGs3oX
    nfLBKrJpupEnMQJB
    MATJmkYBfSkyyGQ1
    • Now do the same method of leverage, but put the tire back on.( Be extremely careful to not pinch the tube between the tire spoon and the rim.)

  12. PGxuBLKwnNZsCFHr
    PGxuBLKwnNZsCFHr
    bC5tHWRKxLEfGnuD
    sfxejChOBhRHAr4s
    • Once the tire is back on the rim add more air this should push the bead lock out. Now you can put the nut back on the bead lock as well.(do not tighten yet.) make sure the tire is at the correct pressure and everything looks good, now you can tighten down the bead lock, and the valve stem. After the valve stem is tight put the second nut on.

  13. dNSSmXs2tTb2eFAU
    dNSSmXs2tTb2eFAU
    CGWU5HyNxSAuSo4s
    fMcxxQ54H23D2vH4

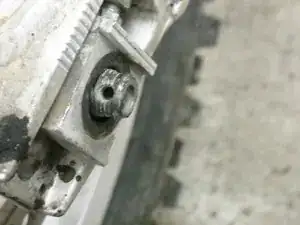

    • Now the tire is ready to go back on. When putting the tire back on make sure the spacers are in the correct areas. make sure the chain is on the sprocket. Lastly, make sure the break disc is inside the break pads.

  14. SilmDPAUkRBKjU5X
    SilmDPAUkRBKjU5X
    2M2oOHTiYvBYEui3
    • Remember when I told you to mark where your tightening blocks where? This is where that comes into play. Align the blocks to their original spot, then tighten the nut on the axle. Now you are done, and your bike is ready to ride.

Conclusion

To reassemble your device, follow these instructions in reverse order.
